Highlights
Multimeter Tester Mode
BSIDE digital multimeter tester measures MAX/MIN/AVG value, capacitance, AC and DC current, diode, AC and DC voltage, resistance, frequency, continuity, and v-alert.
Oscilloscope Mode
The smart digital multimeter can also be used as an oscilloscope, it features a 10MHz bandwidth, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.
Data Storage and Export
The data of this graph oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.
Rechargeable
The handheld oscilloscope multimeter comes with a rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.
Carrying Case
The digital oscilloscope multimeter comes with a high-quality carrying case, perfect for use while you're on the go.
Specification
| General | Brand: BSIDE Type: Oscilloscope Multimeter Model: O1X Color: Grey |
| Specification | MAX Display: 6000 counts Screen Size: 2.8 inch Bandwidth: 10MHz Real-time sample rate: 48MSa/s Input Impedance: 1MΩ, @16pf Maximum input voltage: 300V (DC+AC peak) Horizontal SEC range: 100ns/div -20s/div Vertical sensitivity: 20mV/div -100V/div DC voltage: 60mV 0.01mV ±(1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(0.8%+3); 600V 0.1V ±(1%+5) AC voltage: 60mV 0.01mV ±(1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(1%+3); 600V 0.1V ±(1.2%+5) DC current: 6A/10A 0.001A/0.01A ±(1.2%+3) AC current: 6A/10A 0.001A/0.01A ±(1.2%+3) Resistance: 600Ω 0.1Ω ±(1.2%+5); 6kΩ/60KΩ/600KΩ 0.001KΩ/0.01KΩ/0.1KΩ ±(1.0%+3); 6MΩ 0.001MΩ ±(1.2%+5); 60MΩ 0.01MΩ ±(1.5%+5) Capacitance: 99.99nF 0.01nF ±(5.0%+20); 999.9nF/9.999µF/99.99µF/999.9µF 0.1nF/0.001µF/0.01µF/0.1µF ±(4.5%+5); 9.999mF/99.99mF 0.001mF/0.01mF ±(5.0%+10) Diode: Measures diodes within 3V Continuity: Yes V-Alert(non-contact voltage detection): Yes Power: 2000mA battery (rechargeable) |
| Weight & Size | Product Weight: 209g Package Weight: 512.5g Product Size(L x W x H): 187*74*40mm Package Size(L x W x H): 235*135*52mm |

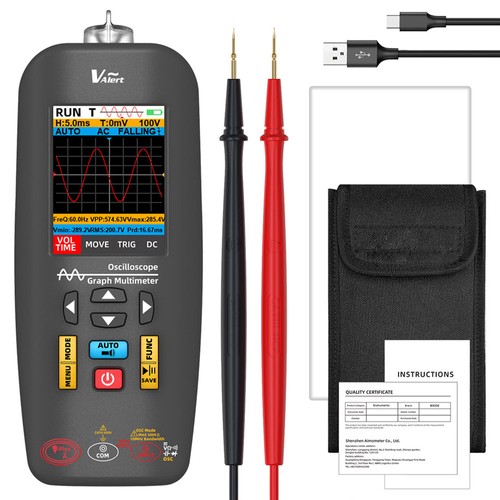

| Package Contents | 1 x Oscilloscope Multimeter 1 x Test Lead 1 x Carrying Case 1 x Charging Cable 1 x User Manual 1 x 2000mA Lithium Battery (Built-in) |
