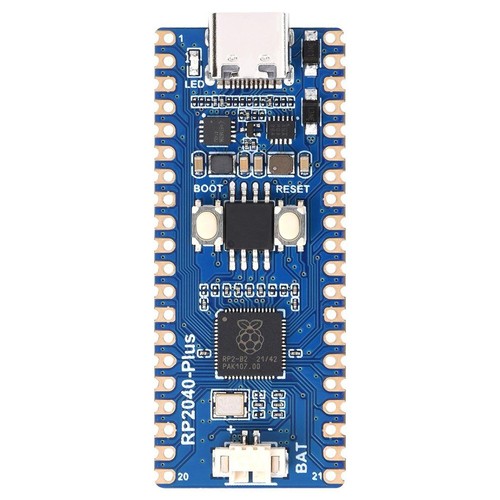

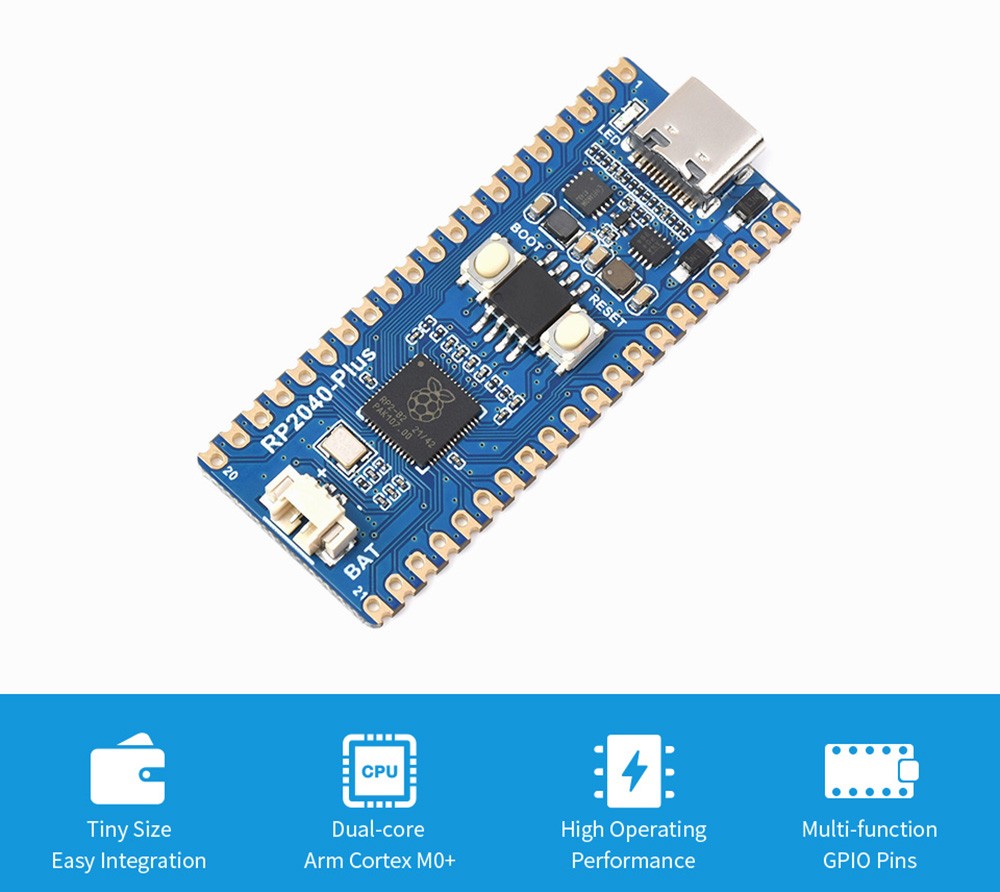

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.
As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.
What's different, it features onboard 4MB/16MB (optional) Flash, USB-C connector, recharge header, and higher current DC-DC chip.
Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.
As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.
What's different, it features onboard 4MB/16MB (optional) Flash, USB-C connector, recharge header, and higher current DC-DC chip.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 4MB/16MB (optional) of on-board Flash memory
- USB-C connector, keeps it up to date, easier to use
- Lithium battery recharge/discharge header, suitable for mobile devices
- Onboard DC-DC chip MP28164, high-efficiency DC-DC buck-boost chip, maximum 2A load current
- Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB

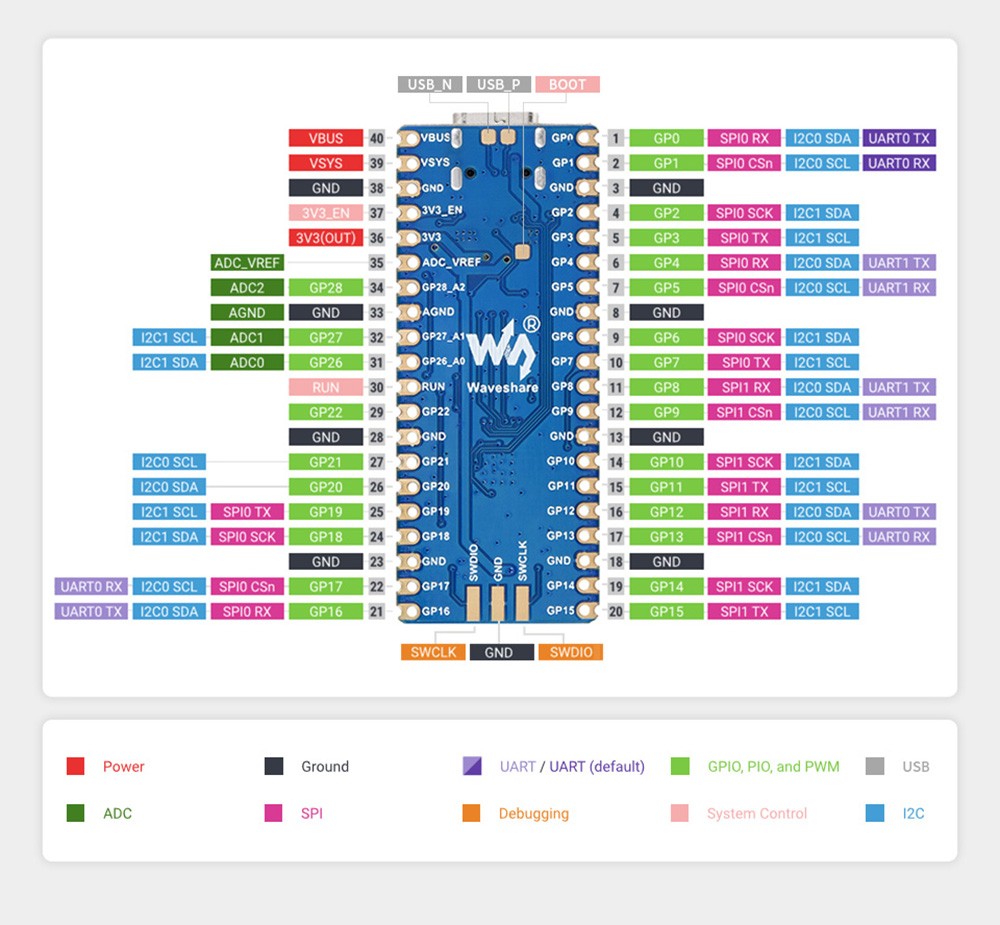

- 26 x multi-function GPIO pins
- 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Specification
| General |
Brand: Waveshare |
| Weight & Size | Product Weight: 0.004kg Package Weight: 0.004kg Product Size(L x W x H): 5.1x2.1x0.45cm Package Size(L x W x H): 7x5x2.2cm |
| Package Contents | 1 x RP2040-Plus |
