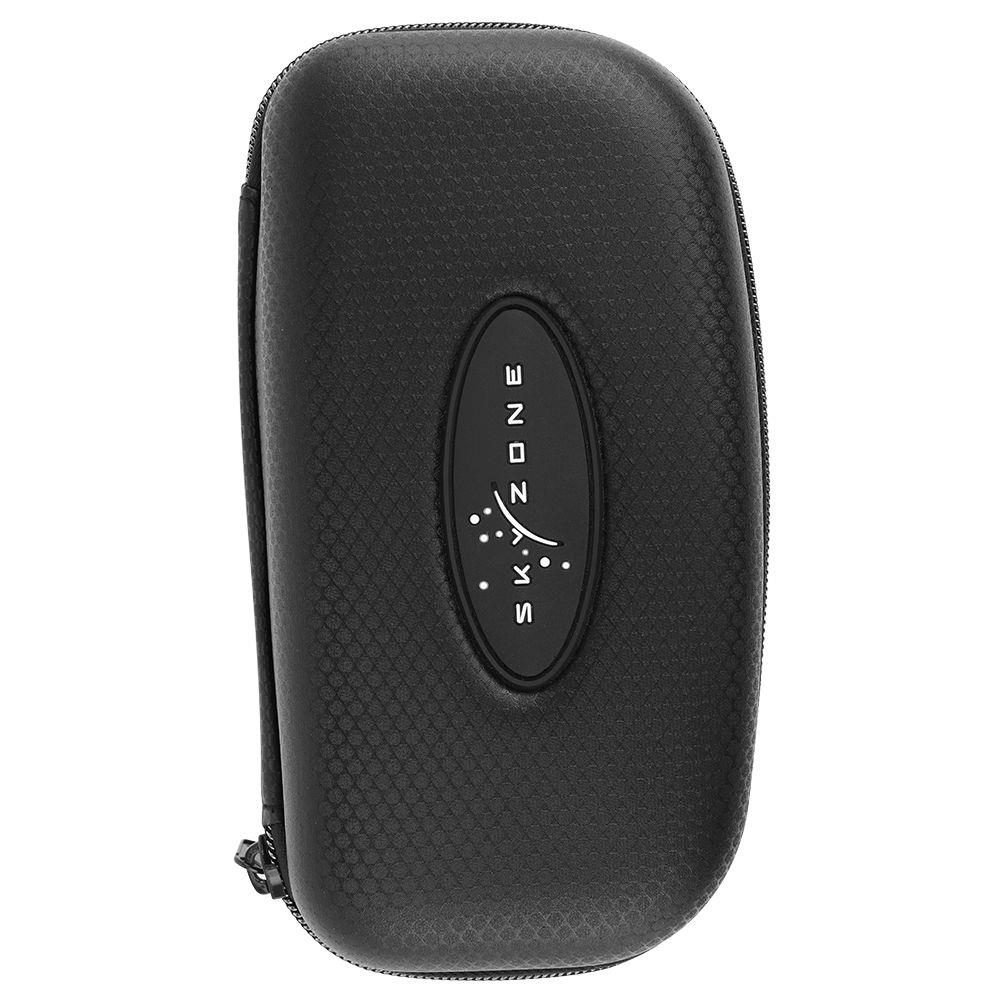

Skyzone SKY02C 5.8G 48CH True Diversity FPV Goggles Built-in Fan DVR Support HDMI IN For Racing Drone - Black

General

Brand: Skyzone
Item Name: FPV Goggles
Item No.: SKY02C
Color: Black
Quantity: 1Set

Specification

SKY02C
Binocular Display:
FOV: 30 degree(Diagonal)
Resolution: 854x480(WVGA) 1,229,760 color sub-pixels
Brightness: 350
Interpupillary Distance(IPD): 59-69MM Adjustable
Sensitivity: -90dBm±1dBm
Antenna: SMA 50ohm

Head Tracker: Sensor: Magnetic,Inertial and gyro
Output: PPM 8CH,Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH
Micro SD: Support to 32GB
Compression: MJPEG, 30fps, AVI
Picture: JPEG
Record Rate: 6Mbps
Video Standard: NTSC/PAL
Video output level: 1.0Vp-p Typ. / 75ohm
Audio output level: 1.0Vp-p Typ. / 10Kohm
Div. AV OUT(3.5mm4P): Diversity Video, Audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video ,Audio input
HD Port IN(Micro HD Port/C-Type): HD Port 1.4 specification
1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50,1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i, PC Format(Not all)
DC IN: DC 7~26V/ 1A(2S~6S)
Power Consumption:  12V input, 5.4W
Dimensions: 168(L)X92.5(W)X41(H)MM
Operating Temperature: 0 -+60

ISM 5.8GHz 48 Channel, Diversity receiver.
Band    CH 1       CH2          CH3        CH4        CH5        CH6          CH7      CH8
  A      5865M    5845M      5825M     5805M    5785M    5765M      5745M    5725M
  B      5733M    5752M      5771M     5790M    5809M    5828M      5847M    5866M
  E      5705M    5685M      5665M     5645M    5885M    5905M      5925M    5945M
  F      5740M    5760M      5780M     5800M    5820M    5840M      5860M    5880M
  R      5658M    5695M      5732M     5769M    5806M    5843M      5880M    5917M
  L      5362M    5399M      5436M     5473M    5510M    5547M      5584M    5621M

Package Contents

1 x Goggles
1 x Futaba Data Cable
1 x JR Data Cable
1 x WFLY Data Cable
2 x 5.8G 2dBi Antenna
1 x AV Cable
1 x Power Cable
