Highlights
- 1/4" MEGA PIXELS CMOS
- 3.6MM megapixel len
- H.264 COMPRESSION
- 720P, 1280*720 resolution
- P2P, easy to set up with UID
- IOS, Android Mobiles view
- 2-way Audio, audio output interface
- PT control, Pan: 355°, Tilt: 120°
- Max support 64GB SD card storage
- Motion detection, send snapshots Via email and FTP
- App push messages of notification
- Support WIFI :IEEE802.11b/g/n
- Embedded 10 pcs LED lights, IR Distances: 10M
- Switch IR-LED On/OFF manually from software
- Free 36CH CMS software
- Support ONVIF
Specification
|
Models |
SDW-001P |
|
|
Cameras |
Sensor |
1/4" CMOS |
|
|
Lens |
3.6MM megapixel len |
|
|
LEDS |
10pcs |
|
|
Pixels |
1 megapixels |
|
|
IR Distance |
10M |
|
|
Day and night |
IR cut filter |
|
|
Minimum illuminator |
0.5Lux |
|
Audio |
Audio |
Dual Audio |
|
|
Input |
Inside MIC |
|
|
Output |
Support external amplifier (audio) |
|
Video |
Compression |
H.264 |
|
|
Frame Rate |
25fps |
|
|
Resolution |
1280X720; 640x480; 320×240 |
|
Pan/Tilt |
Degree |
Pan: 355º, Tilt : 120º |
|
Network |
WiFi |
IEEE 802.11b/g/n |
|
|
Internet |
RJ-45 10M/100M |
|
Alarm |
Motion Detect |
5 optional sensitivity |
|
|
Alarm |
Send the snapshot Photos to email or FTP,Video save to the PC, |
|
|
Transmit |
Via FTP/email |
|
General |
Multi User |
Admin/Operator/Normal |
|
|
Web Brower |
Support IE 6.0 (Over 6.0 such as 7.0, 8.0 etc), Chrome, Firefox, Safari, Opera, etc |
|
|
User Interview |
6 viewers@320x240 4 viewers@640x480 2 viewers@1280×720 |
|
|
Mobile Interview |
Support IOS, android system |
|
|
current |
5V ,2A |
|
|
Power consumption |
6W MAX |
|
|
temperature |
-10ºC to +50 ºC (+14 to +122 ºF) |
|
|
Humidity |
10~80%RH |
|
|
Package Size |
21*15.5*11cm(giftbox) |
|
|
Weight |
0.55kg |
|
|
SD card |
Support up to 64GB TF card |
|
Certification |
CE; FCC; RoHS |
|

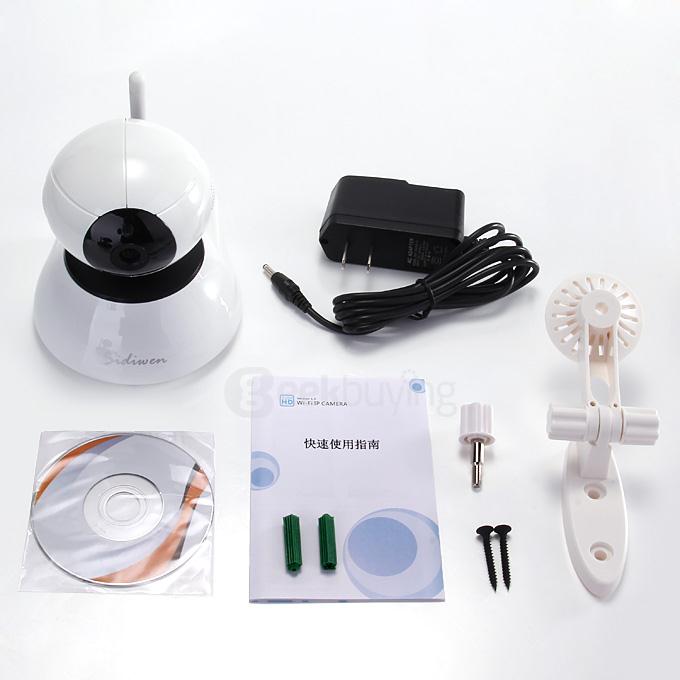

What's in the box?

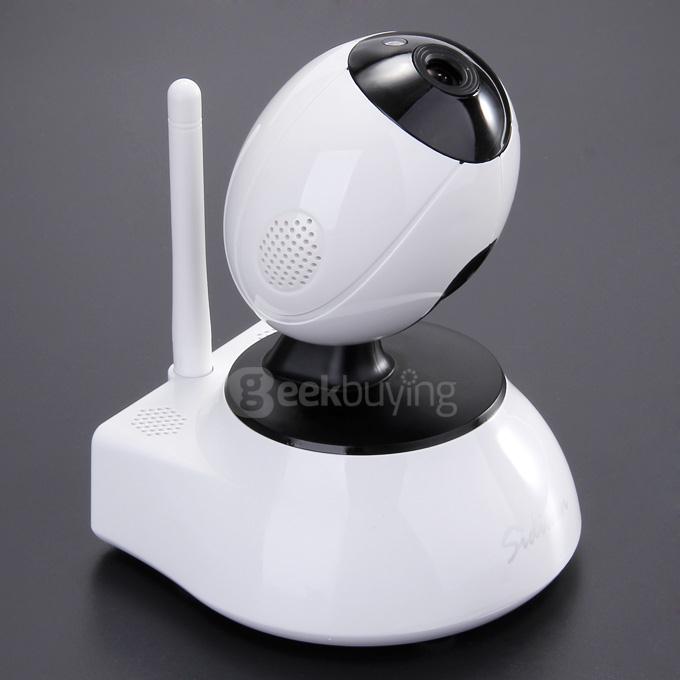

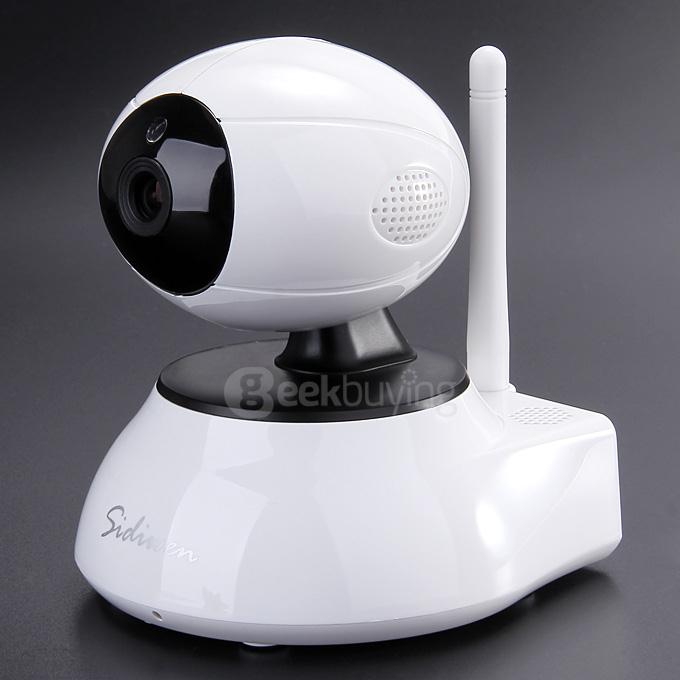

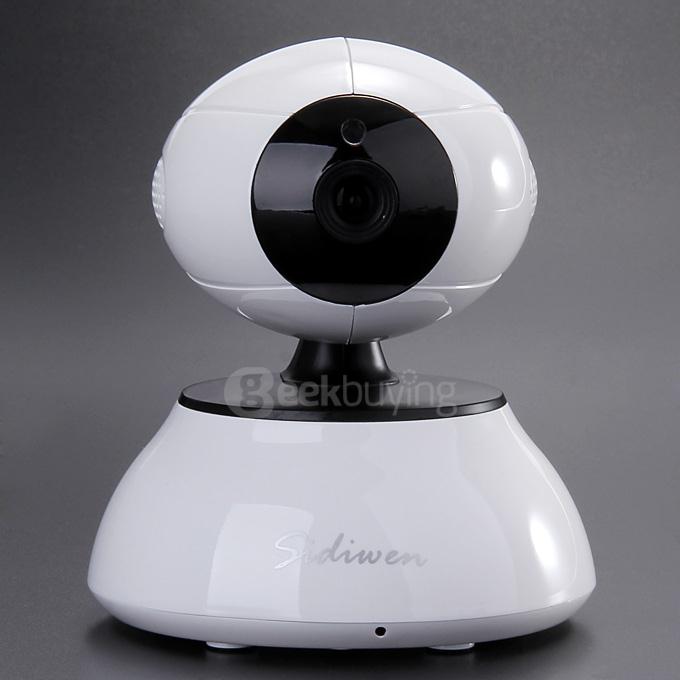

- 1 x Wireless IP Camera
- 1 x Power Charger
- 1 x Anti-theft Device
- 2 x Screws
- 1 x English User Manual
- 1 x CD
