Highlights
- High quality and stable performance: it's with a microprocessor controller.

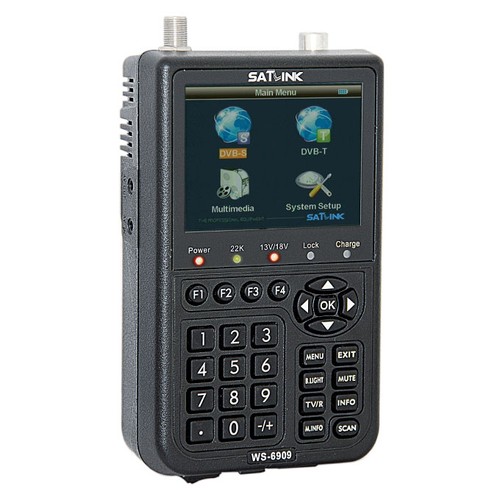

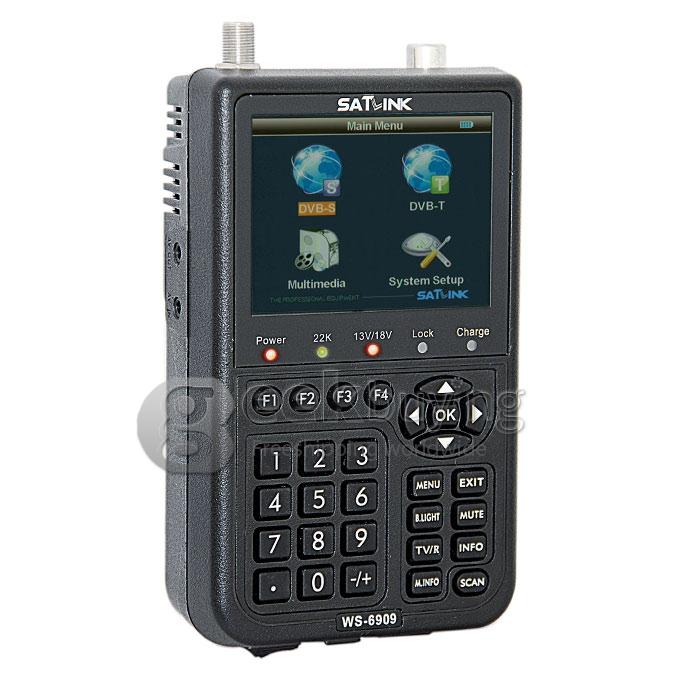

- 3.5" LCD color display, bigger menu window.
- Channel picture, signal strength and signal quality can be showed on LCD Screen after you set up your local DVB-S & DVB-T Parameter.
- It's with auto-protection for LNB short-circuit.
- It shows Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm.
- It can at most show five channels' signal at the same menu which is very helpful for adjustment.
- Supports both AV IN and AV OUT for camera, LCD, etc.

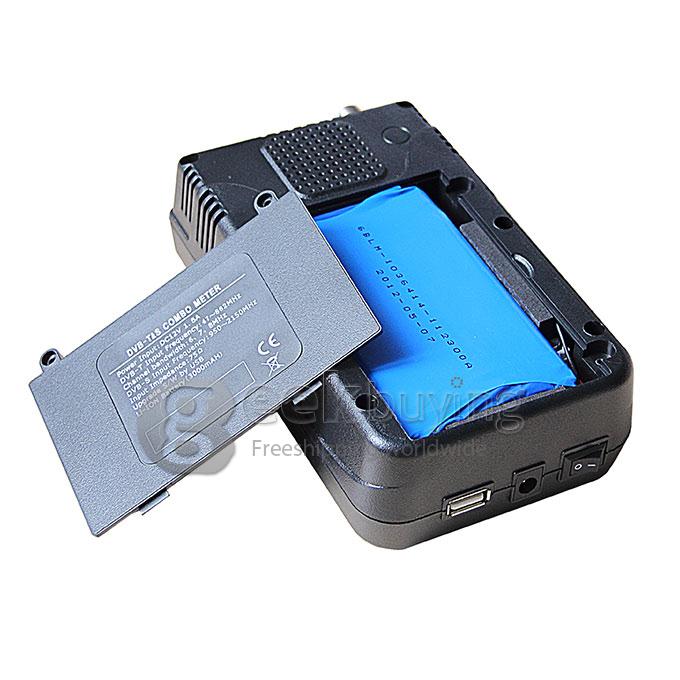

- Built-in large capacity 3000mAH Li-ion battery.
- Matched with a high quality protective case.
Specification
DVB-T | |
COFDM Demodulated | |
Frequency range | 46-870MHz |
Level range | 40-110dBuV |
Input Resistance | 75ohm |
Demodulation | QPSK,16QAM,64QAM |
Test | BER, C/N, FEC Signal Quality and Strength |
Multi-Channel Simultaneous Measurement | |
Auto Full Frequency Scan | |
Auto scan of frequency selected | |
Power supply at RFIN | 5V/12V/15V/18V/24V*(100mA) |
DVB-S | |
Input Frequency range | 950-2150MHz |
Input Level | -65dbm-25dbm |
Input Resistance | 75ohm |
Symbol rate | 2Msps-45Msps |
Test | BER, C/N, FEC Signal Quality and Strength |
Auto search | NIT Search ,Manul Search |
DisEqC,22K Supported | |
LNB power supply | H + 18V + 13V 400Ma |
OTHER | |
Battery | 8.4V/3000mAH Lion battery |
Power adapter input | AC 90V-240V/50Hz |
Power adapter output | DC 12V/1.5A |
Working time | 4-6 hours (full charge) |
Charging time | 5 hours from flat |
Car charger supplied | |
Dimension | 155 X 95 X 45mm |
Net weight | 06kg |
What's in the box?
- 1 x SatLink WS-6909
- 1 x Car Charger Cable
- 1 x CD
- 1 x AV Cable
- 1 x AC Adapter
- 1 x Silicone Case
