Highlights
- Color TFT LCD display with 3.5"/ 8.9 inch.
- Built-in speaker.
- Display the signal strength in percent and as a bar.
- Display of signal quality as a percentage and as a bar.
- Acoustic signal when a transponder is locked.
- Automatic channel search TV + Radio.
- Reception and playback of DVB-S Free to Air TV programs.
- Reception and playback of DVB-S Free to Air Radio Programs.
- Using an adapter cable can be connected to the device to the TV set and satellite receiver are used as normal.
- Firmware update via RS232 interface.
- 7 Menu Languages: English, French, Russian, Arabic, Farsi, Portuguese, Turkish.
- Built-in 8.4V / 3000mA / h Li-Ion battery for up to 6 hours operating time.
- Charging time 4 hours.
|
System capabilities |
Fully DVB compliant |
Yes |
LNB/Tuner input |
Connector |
F type, male |
|
Frequency range |
950MHz-2150MHz |
|
|
Signal lever |
-65dBm~-25dBm |
|
|
LNB supply |
13/18V, max400mA |
|
|
LNB switch control |
22KHz |
|
|
DiSEqC |
Ver 1.0 |
|
Demodulator |
Front end |
QPSK |
|
Symbol rate |
2Mbps~45Mbps |
|
|
SCPC and MCPC Capable |
Yes |
|
|
Spectral inversion |
Auto conversion |
|
System resource |
Processor |
32bit processor (200MHz) |
|
SDRAM |
16Mbyte |
|
|
FLASH |
2Mbyte |
|
|
EEPROM |
8Kbyte |
|
Video decoder |
MPEG 2 |
Main Proflie@Main Level |
|
Data Rate |
up to 15M bits/s |
|
|
Resolution |
720*576, 720*480 |
|
|
Video format |
PAL / NTSC / SECAM |
|
MPEG Audio |
MPEG 1 layer 1&2 |
|
|
Type |
Mono |
|
|
Sampling rates |
32,44.1 and 48KHz |
|
|
Serial data interface |
Connector |
USB type |
|
Power supply |
Li-oN Battery |
8.4V/3000 mA |
|
Supply voltage |
12Volt |
|
|
charger |
90-240V |
|
|
Panel connectors |
Digital tuner input |
F type, male |
Physical Specification |
Size |
9.5x15.5x4.5 (cm) |
|
Weight(Net) |
452g |

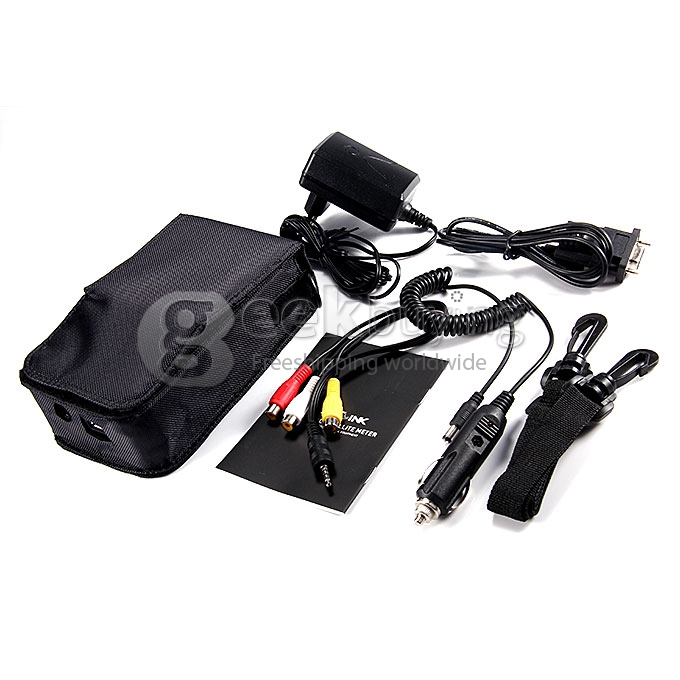

What's in the box?
- 1 x WS-6906 Satellite Finder

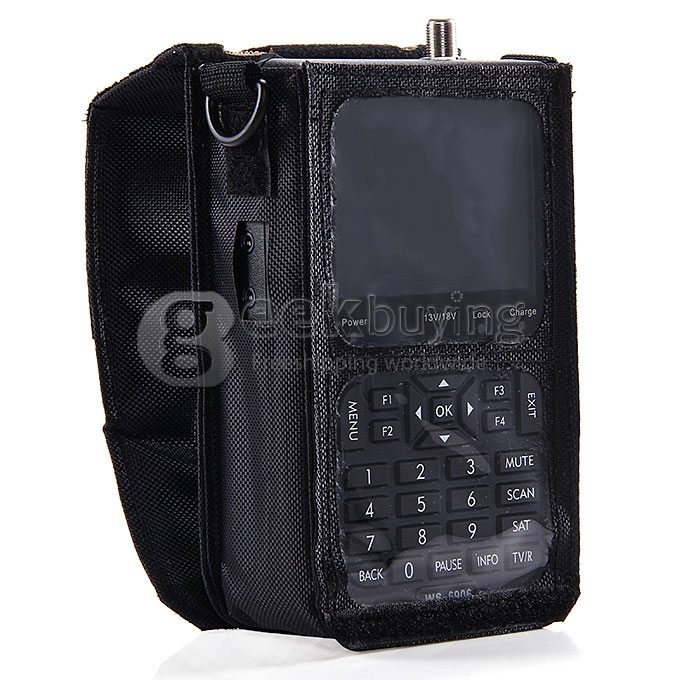

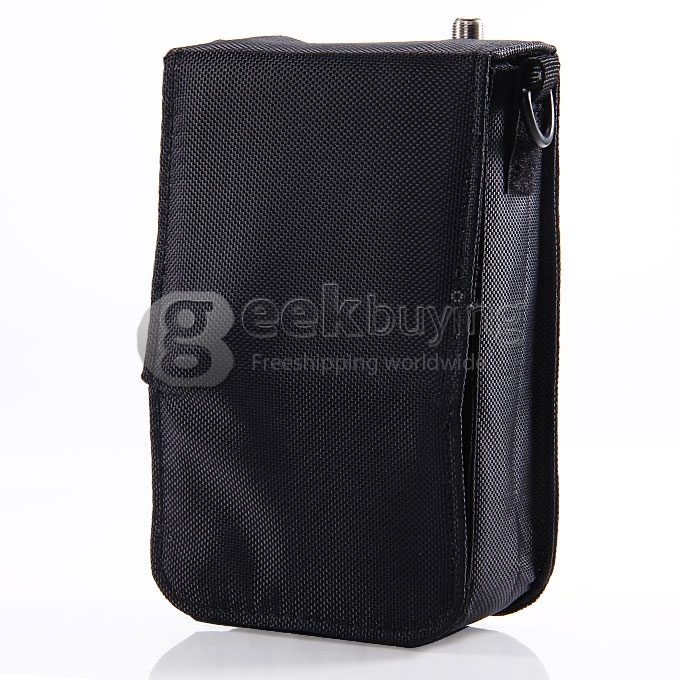

- 1 x Black Protective Bag
- 1 x Strap
- 1 x Car Charger
- 1 x Power Adapter EU Plug
- 1 x AV Cable
- 1 x USB to VGA cable
- 1 x English User Manual
