Highlights
- What’s Orange Pi Plus? It’s an open-source single-board computer. It can run Android 4.4 , Lubuntu, Debian, Rasberry Pi Image, it uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM.
Specification

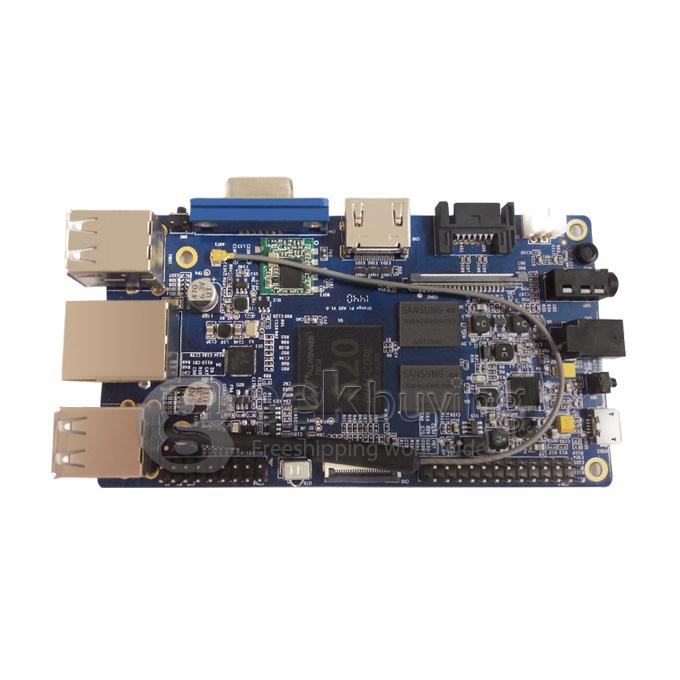

What’s Orange Pi Plus?
It’s an open-source single-board computer. It can run Android 4.4 , Lubuntu, Debian, Rasberry Pi Image, it uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM
What can I do with Orange Pi Plus?
Build…
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi Plus is open source
Who’s it for?
Orange Pi Plus is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
| Hardware specification | |
| CPU | H3 ARM Cortex-A7 quad-core, 256KB L1 cache 1 MB L2 cache |
| GPU | Mali400MP2 GPU @600MHzSupports OpenGL ES 2.0 |
| Memory (SDRAM) | 1GB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 64GB) / MMC card slot , up to 2T on 2.5 SATA disk |
| Onboard Network | 10/100/1000 Ethernet RJ45, WIFI onboard |
| Video Input | A CSI input connector allows for the connection of a designed camera module |
| Audio Input | MIC,LINEIN,FMIN |
| Video Outputs | HDMI, CVBS |
| Audio Output | 3.5 mm Jack and HDMI |
| Power Source | USB OTG input,DC input |
| USB 2.0 Ports | Four USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power button: Next to Reset button UBoot button (optional): Behind HDMI connector |
| Low-level peripherals |
40 Pins Header,compatible with Raspberry Pi B+ including UART, I2C, SPI, PWM, CAN, I2S, SPDIF, LRADC, ADC, LINE-IN,FM-IN,HP-IN. |
| GPIO(1x3) pin | UART,ground. |
| LED | Power Key & RJ45 |
| Key | IR input,UBOOT,POWER |
| Supported OS | Android Lubuntu, Debian, Rasberry Pi Image |
| Interface definition | |
| Product size | 112 mm × 60mm |
| Weight | 60g |
| Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO,Limited | |
What's in the box?
- 1 x Orange pi Plus
