Highlights

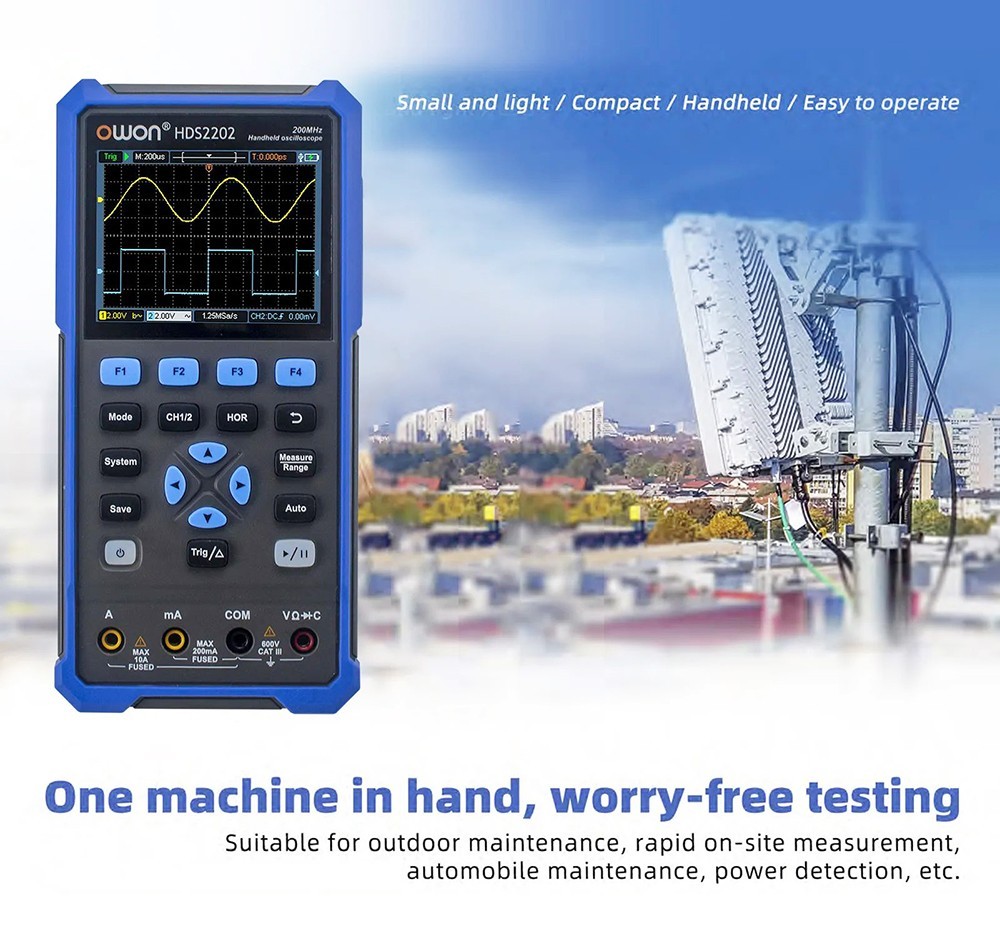

2-in-1 Handheld Oscilloscope
OWON HDS2202 features a digital oscilloscope function and a multimeter function at the same time. It is easy to operate and is suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.
Digital Oscilloscope Functions

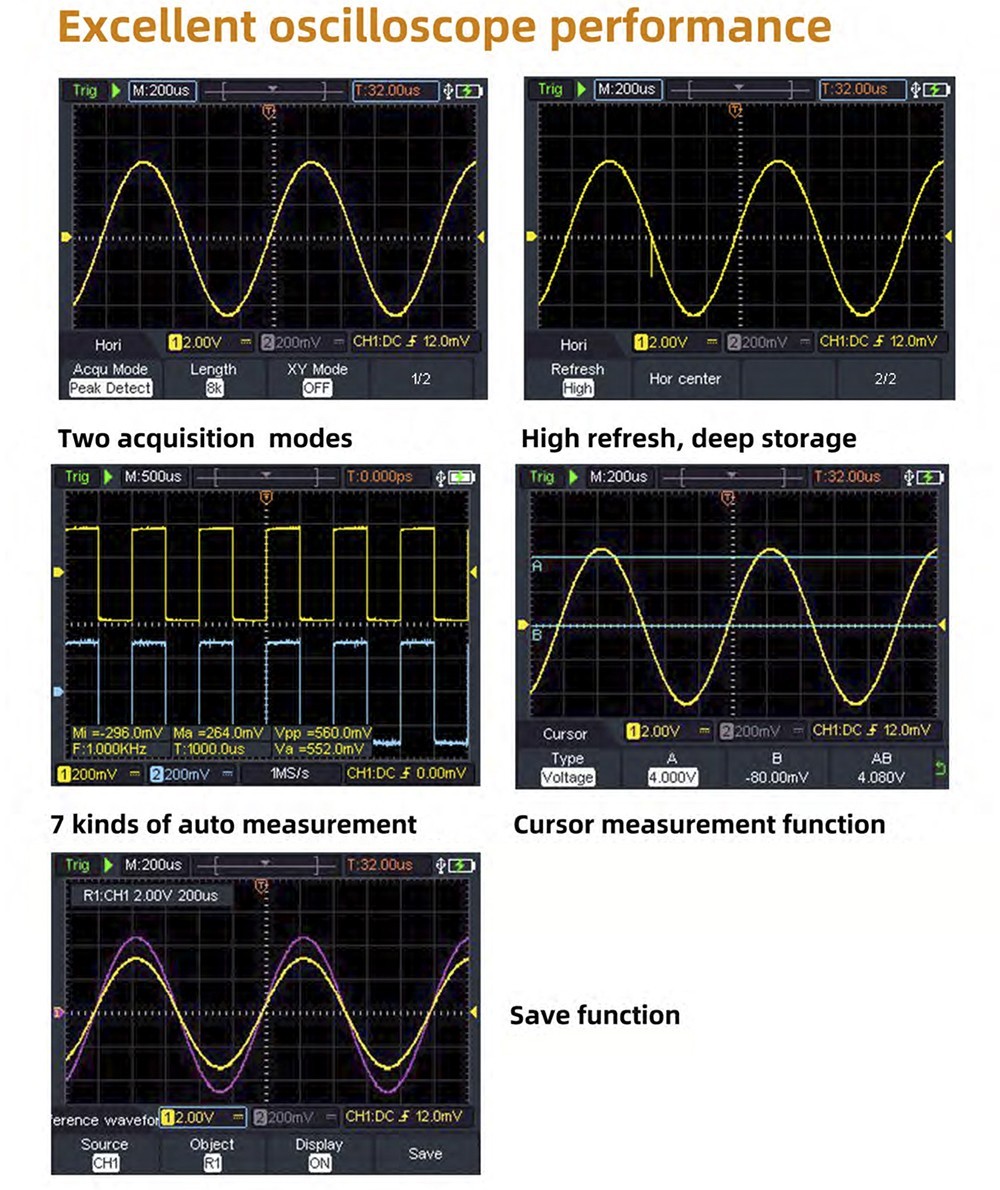

Features dual-channel input, 200MHz bandwidth, 1GSa/s real-time sampling rate, and max 8k record length. It also has a cursor measurement function and one key auto set function, easy to detect and debug.
Multimeter Functions

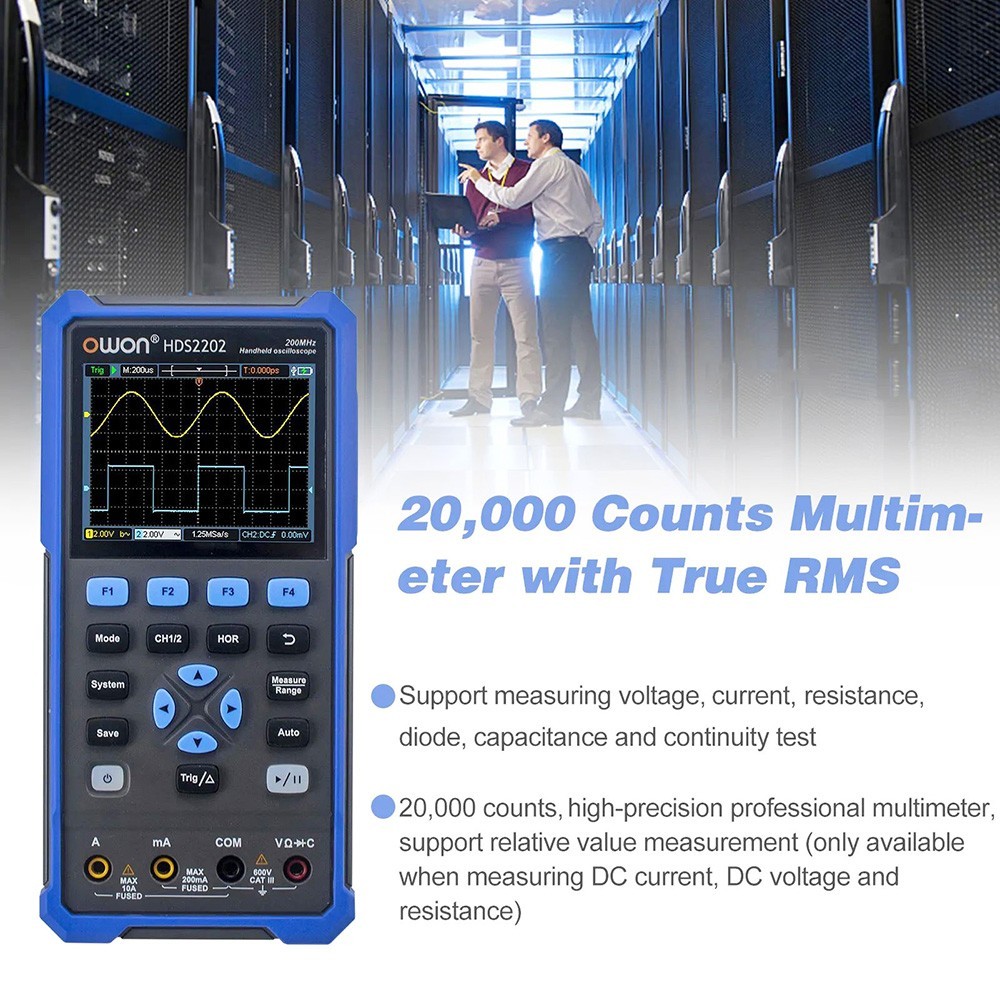

20000 counts true RMS multimeter features an auto-ranging function and reading hold function, it can be used to measure standard voltage, current, resistance, diode, capacitance, and continuity test. It configures max AC 750V and DC 1000V input voltage. Independent input of multimeter and oscilloscope support relative measurement function.
Specification
| General | Brand: OWON Type: 2-in-1 Digital Oscilloscope Model: HDS2202 Color: Blue + Black |
| Specification |
Oscilloscope Specifications: Multimeter (Standard): |
| Weight & Size | Product Weight: 0.6kg Package Weight: 1.1kg Package Size(L x W x H): 22x15x8.5cm |
| Package Contents | 1 x 2-in-1 Digital Oscilloscope 1 x Probe Adjust 2 x Measuring Pen 1 x Bag 1 x Probe 1 x BNC to Alligator Clip 1 x USB Cable 1 x Adapter 1 x User Manual |
