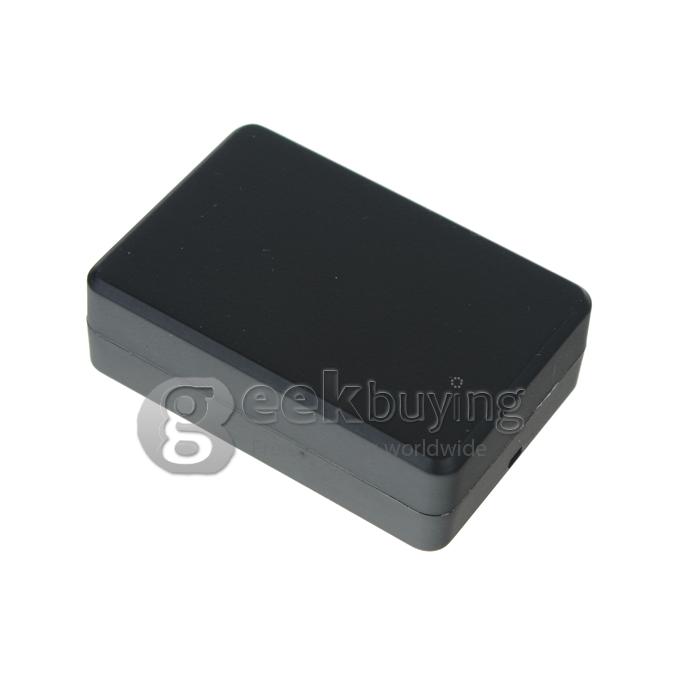

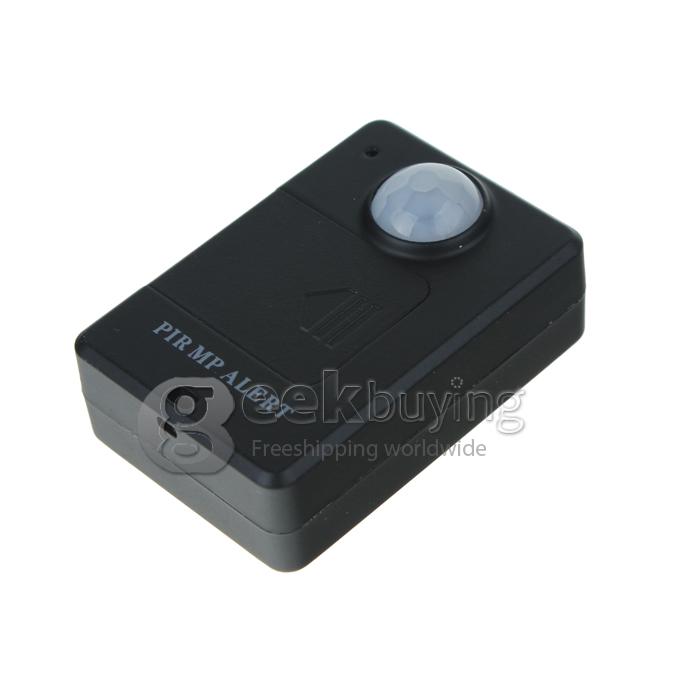

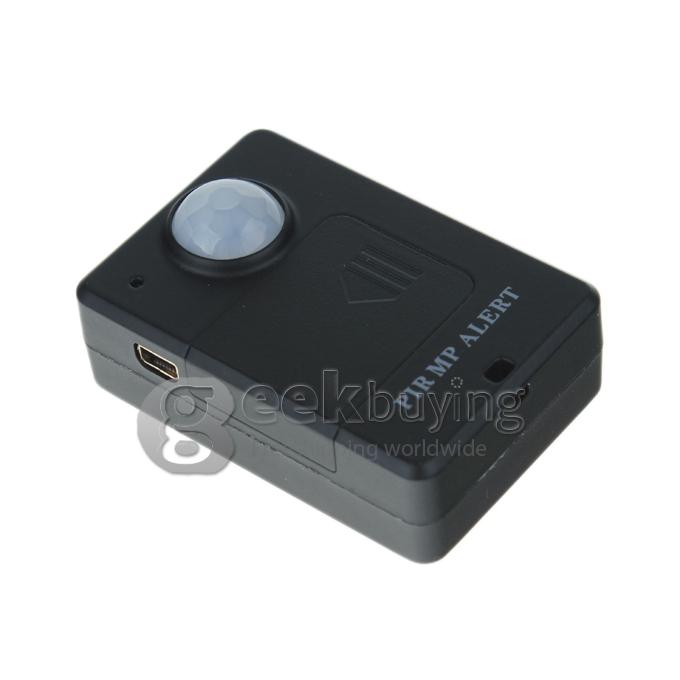

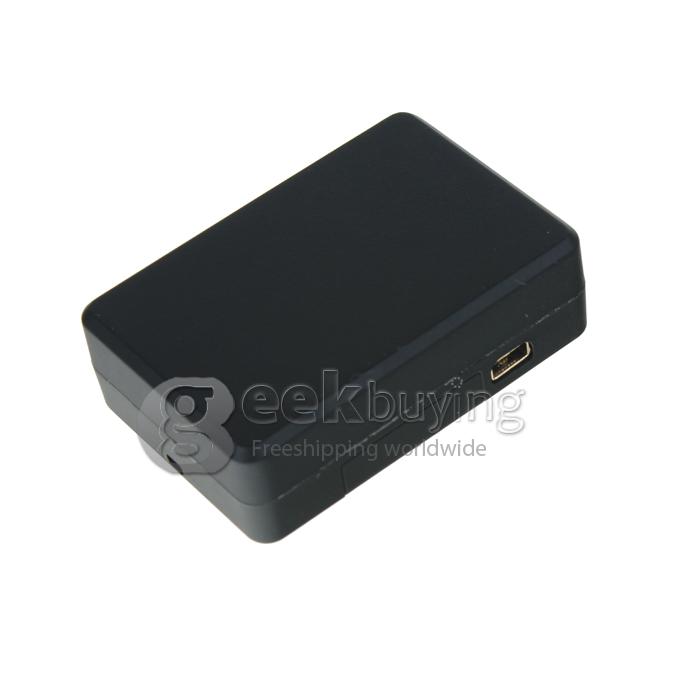

Mini GSM Alarm Wireless Remote Control Infrared Fence Home Burglar Security Alarm System - Black

Wireless GSM Home Security Burglar Alarm System Auto Dial Call

This wireless GSM intelligent anti-theft electronic alarm system is an innovative wireless mobile intelligent warner integrating GSM digital signal processing techniques and imported STC microprocessor.

In addition, this alarm system is highly automatic, giving automatic call alert in the event of emergency without intensive manual settings required. Features of stability, reliability, safety, and humanizing control enable it to be widely used for alert in homes,shops, convenience stores, offices, villa as well as residential communities.

Highlights

• Mini GSM Infrared Fence Wireless Home Security Alarm Auto Dial Burglar Intruder Alarm Systems
• Mobile Call GSM Alarm System with SIM Card
• Infrared Remote Control Alarm
• Infrared Alarm System with SIM Card
• Function
• When the boby is near,it will automatically start the alarm.
• The highest sensitivity in the range of 4-5 meters.
• Put the alarm cat or paste in a certain height, away from the boby within 5 meters within the angular range 120°left and right, as long as people or animals,swaying back and forth in a very short time, induction start.
• Application
• Having it in living room and bedroom.
• It can be put outside the door of important places according to your need.
• Installing it nearby your vehicle or in warehouse.
• It can be also used in bank cash truck to monitor the safety situation.

Specification

• Standby Current: below 0.05mA
• Working current: below 50mA
• Sensitivity: 5-8m center angle 90°
• Working Temperature:-5 to 40°
• Working Humidity: 5% to 93%
• Product Size: 48*32*14MM
• Weight: 20g in net, 45g including packing.
• Operating frequency: 850MHZ, 900MHZ, 1800MHZ, 1900MHZ;(not support CDMA and WCDMA)
• Standby time: for body sensing: 3-5days, not for body sending: 12-15days

Instruction

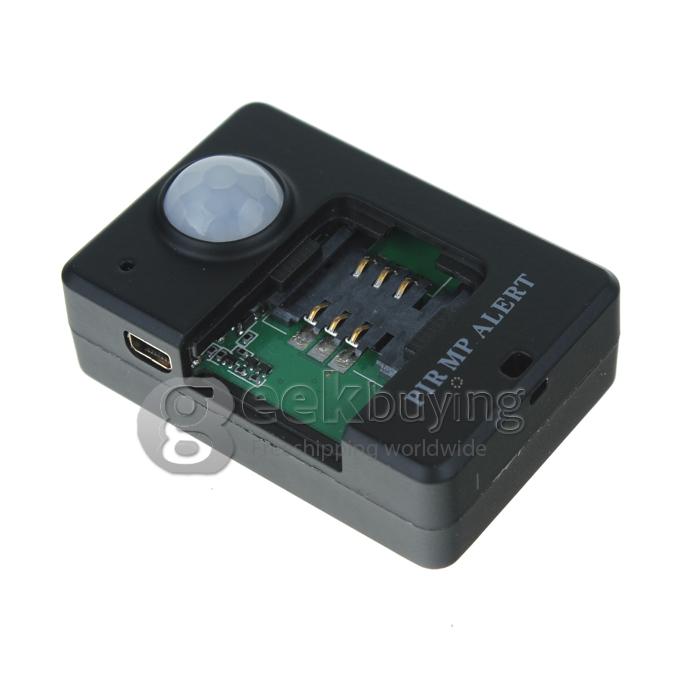

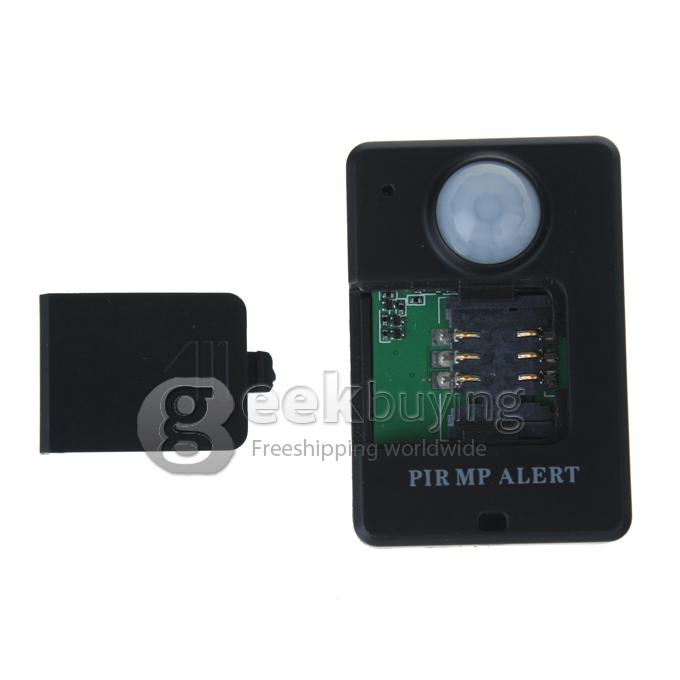

• A. Turning on: open cassette cover and put SIM card into cassette following the instruction figure, it will automatically turn on. When turning on, indicator light will be on for 3 seconds, after extinguishing, the cover can be closed. About one minute after turning on, it gets into state of monitoring and induction. It will send the monitoring information to the number bound ahead.
• B. Number Binding: after 5 seconds calling from mobile phone and other communication tools, it will connect automatically. When you hear voice call, the binding succeeds. This operation is very simple.
• C. When it senses that there is body back and forth through, it will call the bound number. One minute later, infrared sensors will be in functionally induction state, which will trigger led flash.
• D. Charging indicator light: when charging, charger's light is red, which will turn yellow when charging is done.

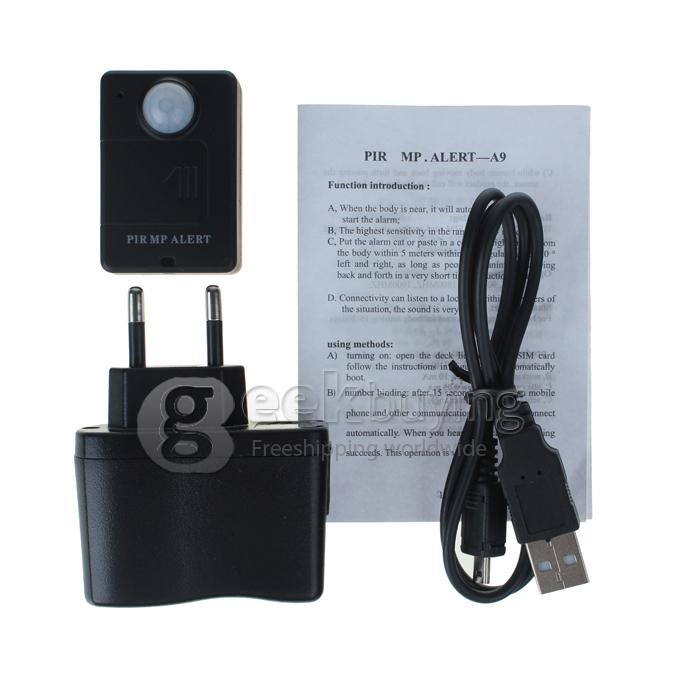

What's in the box?

• 1 x GSM Alarm
• 1 x Usb cable
• 1 x Charger(110V-240V)
• 1 x User Manual
