Highlights
Perfectly Run Klipper Host
MKS SKIPR is an all-in-one board launched by Makerbase for running Klipper. It integrates the SOC running the Klipper host and the MCU responsible for executing specific machine actions. It meets the use of most 3D printers.
SOC uses Rockchip's 4-core Cortex-A53 architecture RK3328 with Armbian system, perfectly running Klipper host.
MCU uses STM32F407VET6 of Cortex-M4 architecture,168Mhz main frequency, easy to control various machine actions.
Rich Interfaces
Retain the rich interface resources of MKS PI: with 1GBytes of DDR3 memory, support HDMI screen interface, PI-TS35 screen interface, provide wired Ethernet port, and 3-way USB interface (can be externally connected to the main control board, USB wireless network card, USB camera, U disk, USB keyboard and mouse, etc.).
Controllable Fans & Safe Protection

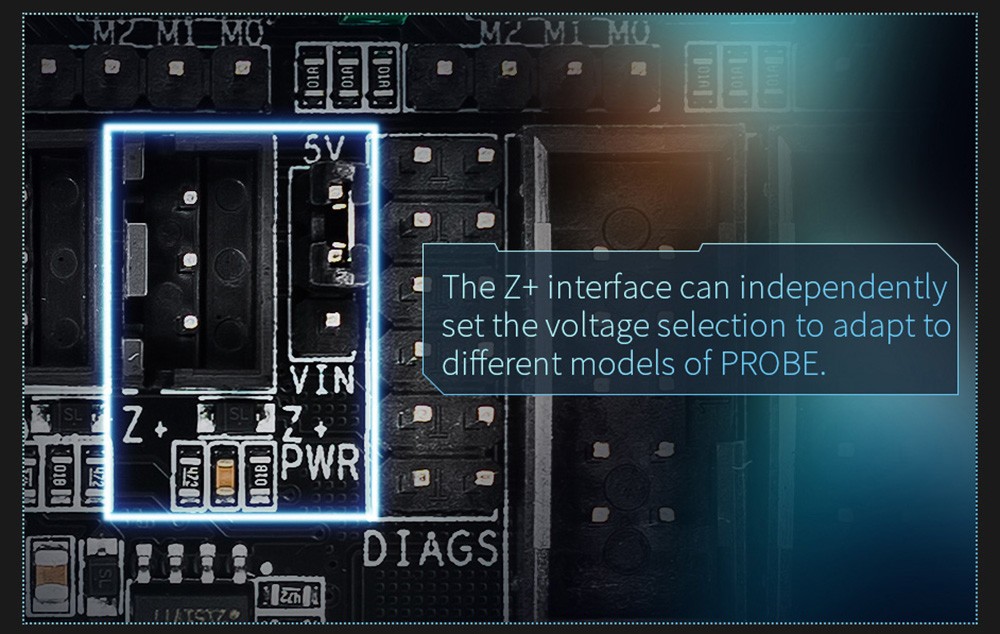

With 3-way controllable fans, plus 3-way normally open output, it can independently select VIN,12V, or 5V voltage. Designed with Schottky diode protection for MOS circuits and temperature measurement circuits. Designed with the back EMF energy absorption circuit to protect the stepper driver module. In addition, the Z+interface can independently set the voltage selection to adapt to different models of PROBE.
More Features
Support booting the system from the TF card and EMMC module (the EMMC module is more stable than the TF card, and has faster read and write speed); support 7-axis stepper drive to meet the requirements of most 3D printer models; 3 independent MP1584PEN DC/DC modules provide a strong guarantee for the stable operation of the entire board circuit.
Specification
| General | Brand: Makerbase Type: Control Board Kit Model: MKS SKIPRV1.0+EMMC+Wireless Adapter+MKS PI-TS35 |
| Specification | SOC: Rockchip's 4-core Cortex-A53 architecture RK3328 with Armbian system MCU: STM32F407VET6 of Cortex-M4 architecture,168Mhz main frequency HDMI Screen Interface: Support PI-TS35 Screen Interface: Support Wired Ethernet Port: Support 3-way USB Interface: Support |
| Weight & Size | Package Weight: 0.5kg Package Size(L x W x H): 18x12x5cm |

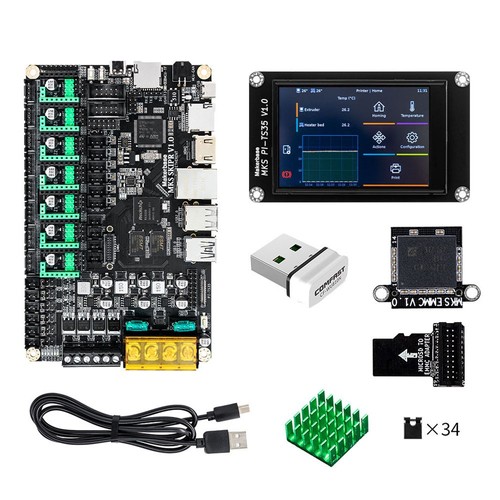

| Package Contents | 1 x MKS SKIPR V1.0 Control Board 1 x MKS EMMC 8G 1 x MKS EMMC Adapter 1 x USB Wireless Adapter 1 x 3.5-inch MKS PI-TS35 Screen 1 x Heat Sink 1 x 1m USB Cable 34 x Jumper Cap |
