The MiniX Mini Barebone HD PC is a low-power, energy efficient, easily affordable desktop computer. MiniX Mini HD PC is designed to accomplish all daily computing tasks such as web browsing, watching HD movies, listening to your favourite music and sharing digital content with friends via the internet.
Powered by the built-in-high-definition (HD) video decoder, it is capable of performing full HD-decoding for MPEG2, VC1, AVC and H.246 videos. In addition, MiniX Mini HD PC is capable of supporting Blu-ray 2.0 movies. It comes with D-Sub VGA Port and a HDMI port, so dual display is capable when connecting to both video outputs. Thanks to the low-power processor and chipset. MiniX Mini HD PC is based on an ultra-silent and durable cooling solution and it is an ideal PC solution for noise-sensitive users.
MiniX Mini HD PC provides two Broadcom Gigabit LAN ports so it can be utilized as a mini-server and also comes with the next-generation-low-power Renesas USB 3.0 chip, providing 2 x USB 3.0 high-speed connections. Inside the PC there is space for a 2.5-inch hard drive and two 204-pin DDR3-1066 SODIMM slots, thus allowing different storage and memory configurations according to your budget and needs.
This item don't include HDD and Ram.
Specification
|
Processor |
Built in with an Intel Dualcore Atom:trademark: D2550 (1.86GHz) processor |
| 1M L2 cache | |
| Support Intel HyperThreading technology (2 cores, 4 threads) | |
| Chipset | Intel NM10 |
| Memory | 2 x 1.5V DDR3 DIMM sockets supporting up to 4GB* of system memory |
| Support for DDR3 1066/800 MHz memory modules | |
| Expansion Slot | 1 x PCI Express x1 slot |
| Video Output | 1 x HDMI port |
| 1 x DSub VGA port | |
| Storage | 2 x SATA II 3Gb/s connectors |
| Networking | 2 x Broadcom 57788 gigabit ethernet |
| USB | 2 x USB 3.0 ports powered by Renesas (NEC) chip (optional) |
| Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via internal USB headers) | |
| Audio | Realtek ALC661 codec |
| 5.1 channel high definition audio | |
| Support for S/PDIF Out through onboard header | |

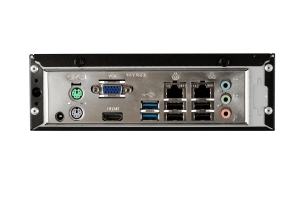

| Back Panel | 1 x DCIN power jack |
| I/O Ports | 1 x PS/2 mouse port |
| 1 x PS/2 keyboard port | |
| 1 x DSub VGA port | |
| 1 x HDMI port | |
| 2 x USB 3.0 ports (optional) | |
| 4 x USB 2.0 ports | |
| 2 x RJ45 LAN ports (dual gigabit LAN is optional) | |
| 3 x audio jacks (Line In/Line out/Microphone) | |
| Internal I/O Connectors | 2 x SATA II 3Gb/s connectors |
| 1 x 4pin power out jack | |
| 1 x LVDS pin header | |
| 1 x printer port header | |
| 1 x serial port header | |
| 1 x CPU fan header | |
| 1 x System fan header | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 2 x USB 2.0 headers (for 4 ports) | |
| 1 x S/PDIF Out header | |
| 1 x speaker header | |
| BIOS | 1 x 16 Mbit flash ROM |
| Use of licensed AMI BIOS | |
| Form Factor | MiniITX form factor; 170mm x 170mm |
Dimensions :205x64x193mm
What's in the box?
- 1*MINIX MINI HD PC
- 1*AC-DC Adapter
- 1*Power Cord
- 1*user's manual
- 1*Driver and utility DVD
