Highlights
- Funny and easy to use
- Low-power, wide angle
- Long distance reception: 8m (Max) at VCC = 5V
- Operating voltage: 3.3V - 5.5V
- Output logic level: TTL, CMOS level compatible and active low level
- Arduino library: arduino-1.5\libraries\IR remote
- The Infrared Receiver is based on HL-A838 integrated infrared receiver modules, IR transmitter module can receive incoming 38KHz modulated infrared signal, and demodulated into logic level, When it receives the modulated infrared signal then output low level, otherwise output high level. Infrared remote control can be completed by encoding and decoding codes.
Specification
| General | |
|---|---|

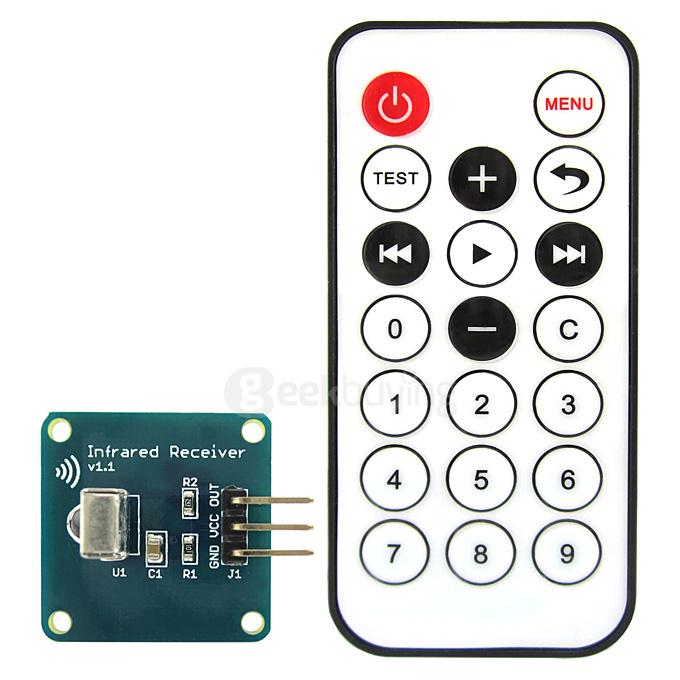

| Type | Infrared Receiver Module + IR Remote Controller |
|
Encoding format |
NEC coded |
|
Transmission Distance |
8m (Max) |
| Carrier Frequency | 37.9 KHz +/- 0.8% |
| Battery Specifications | CR2025 160mAh |
| Compatible | Arduino / MEGA2560 |
| Rayfile | //pan.baidu.com/s/1nth4c69 |
| Package Contents | |
| 1 x Infrared Receiver module | |

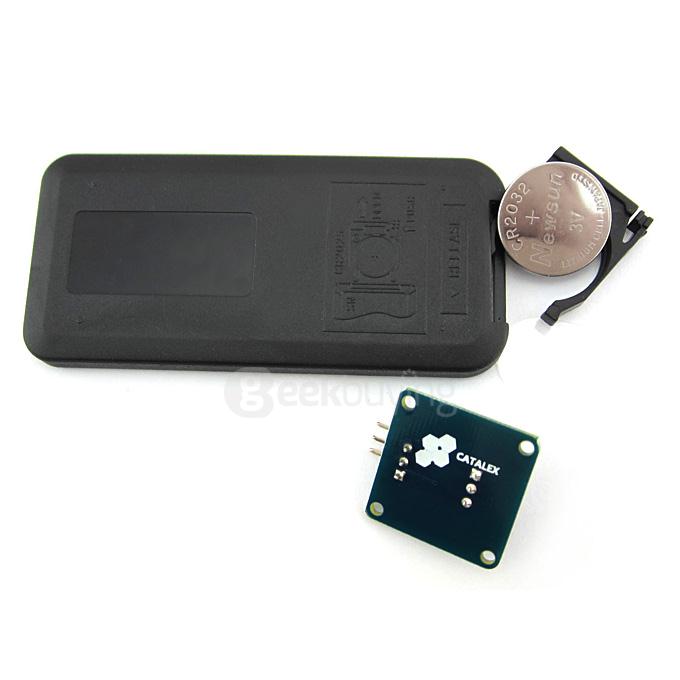

| 1 x Infrared Remote Controller(with a CR2025 lithium battery) | |
