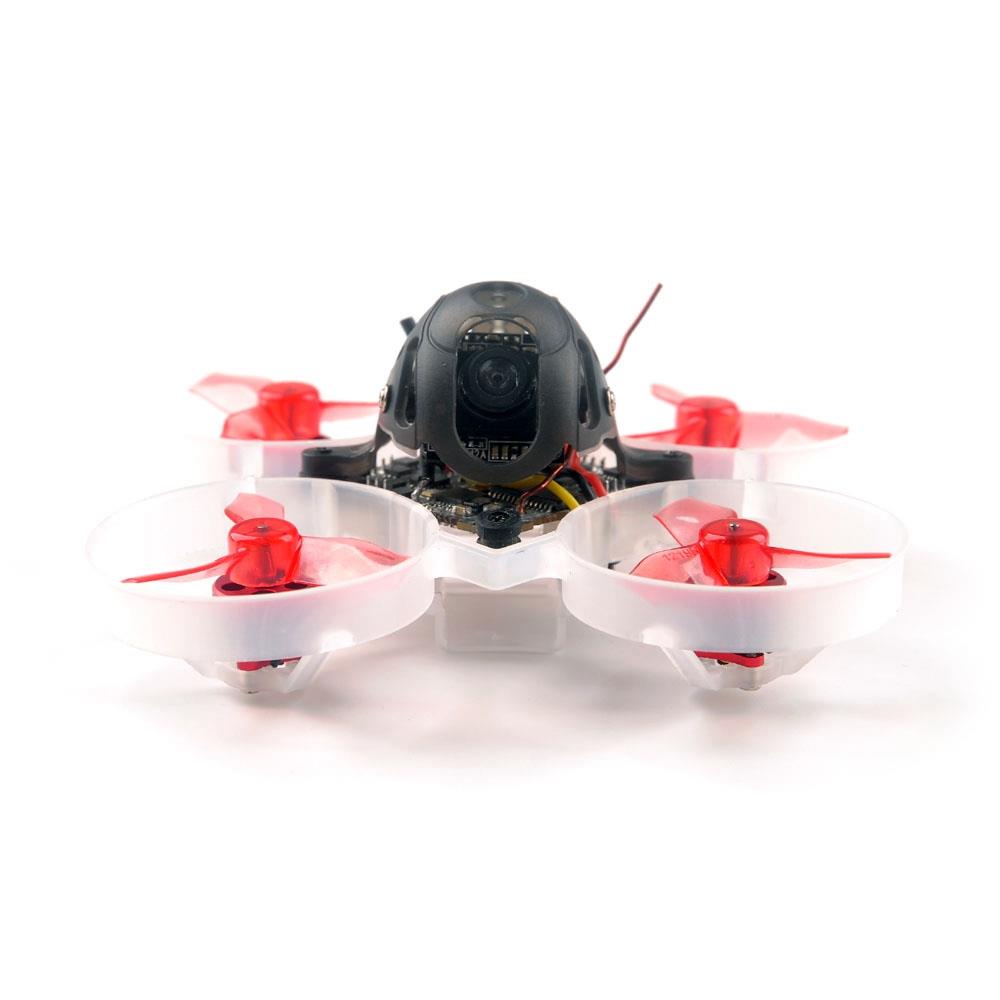

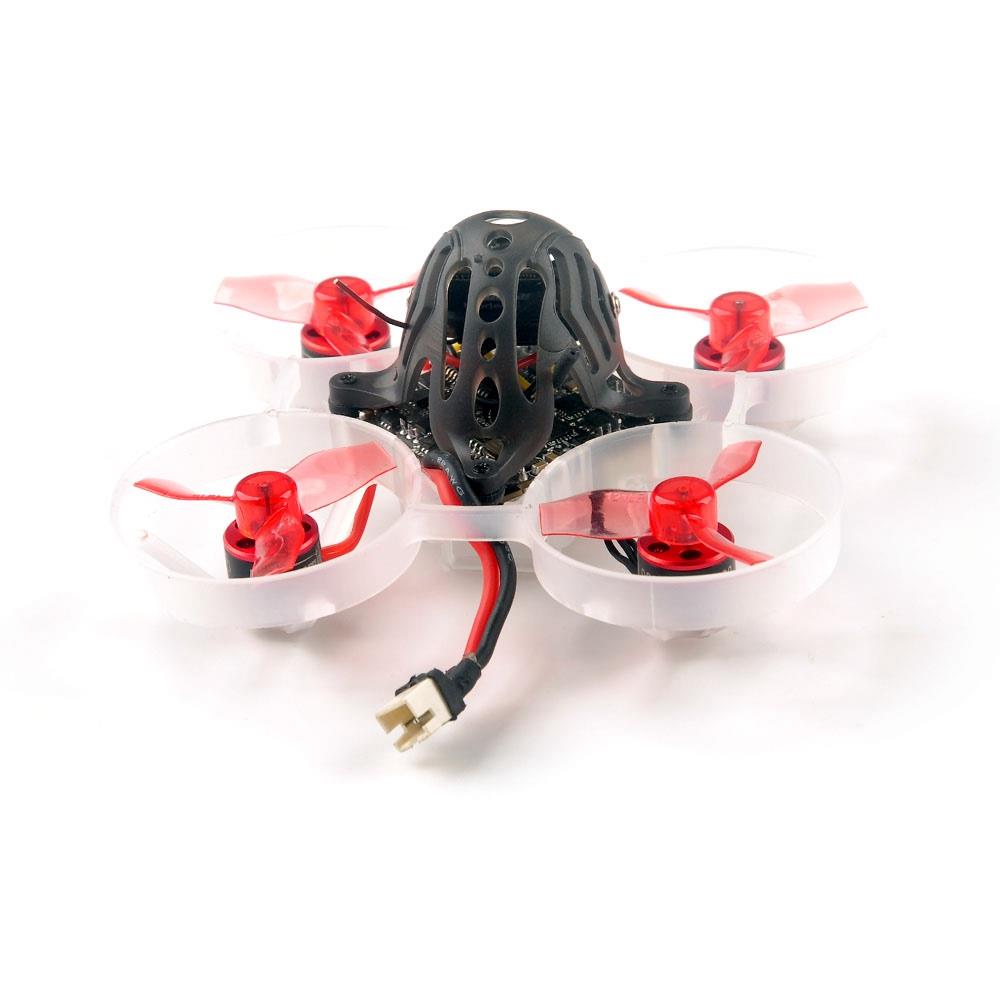

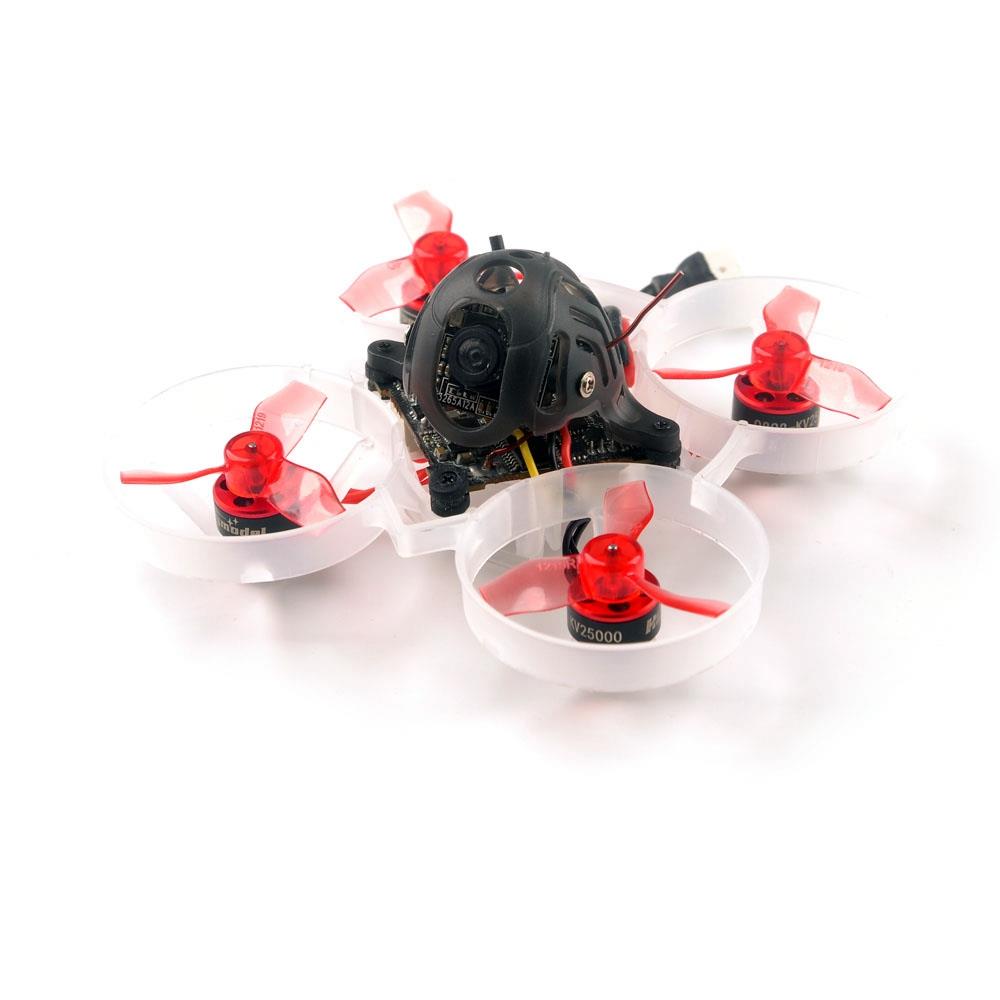

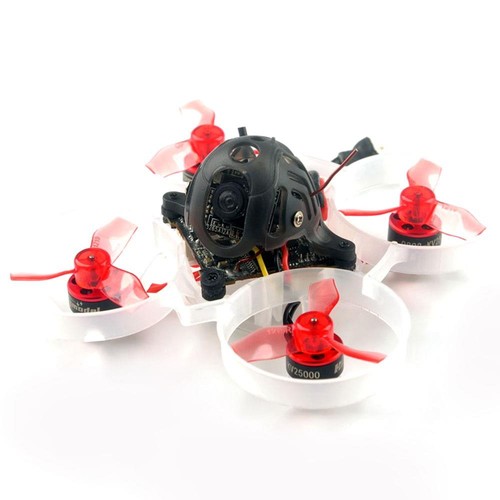

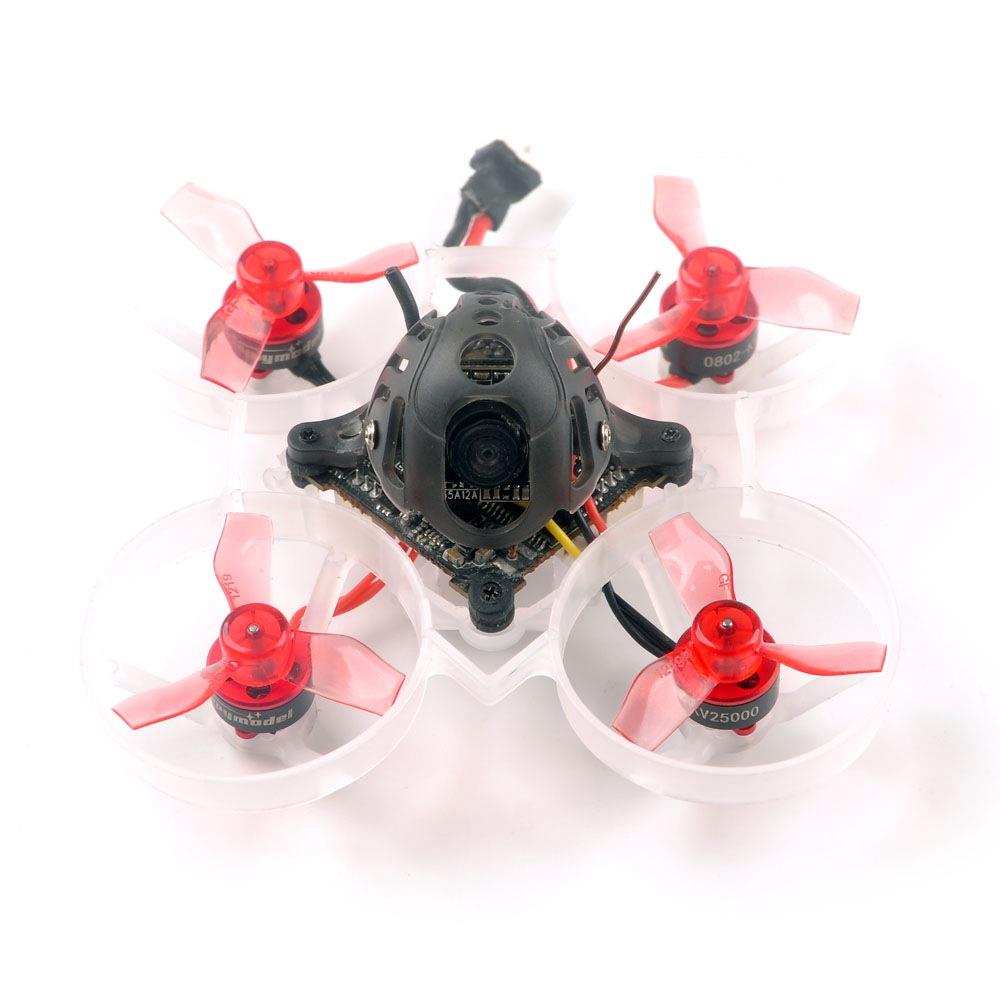

Happymodel Mobula6 65mm 20g Brushless Whoop FPV Racing Drone With Crazybee F4 Lite 1S Flight Control w/Runcam Nano 3 Cam BNF - Flysky Receiver

General

Brand: Happymodel
Item Name: 20g 1S Brushless Whoop
Item No.: Mobula6
Version:  BNF(SE0802 19000KV)
Receiver: Flysky Receiver ( Compatible with AFHDS and AFHDS-2A Flysky transmitter)
Drone Wheelbase: 65mm
Size: 80 x 80 x 37mm

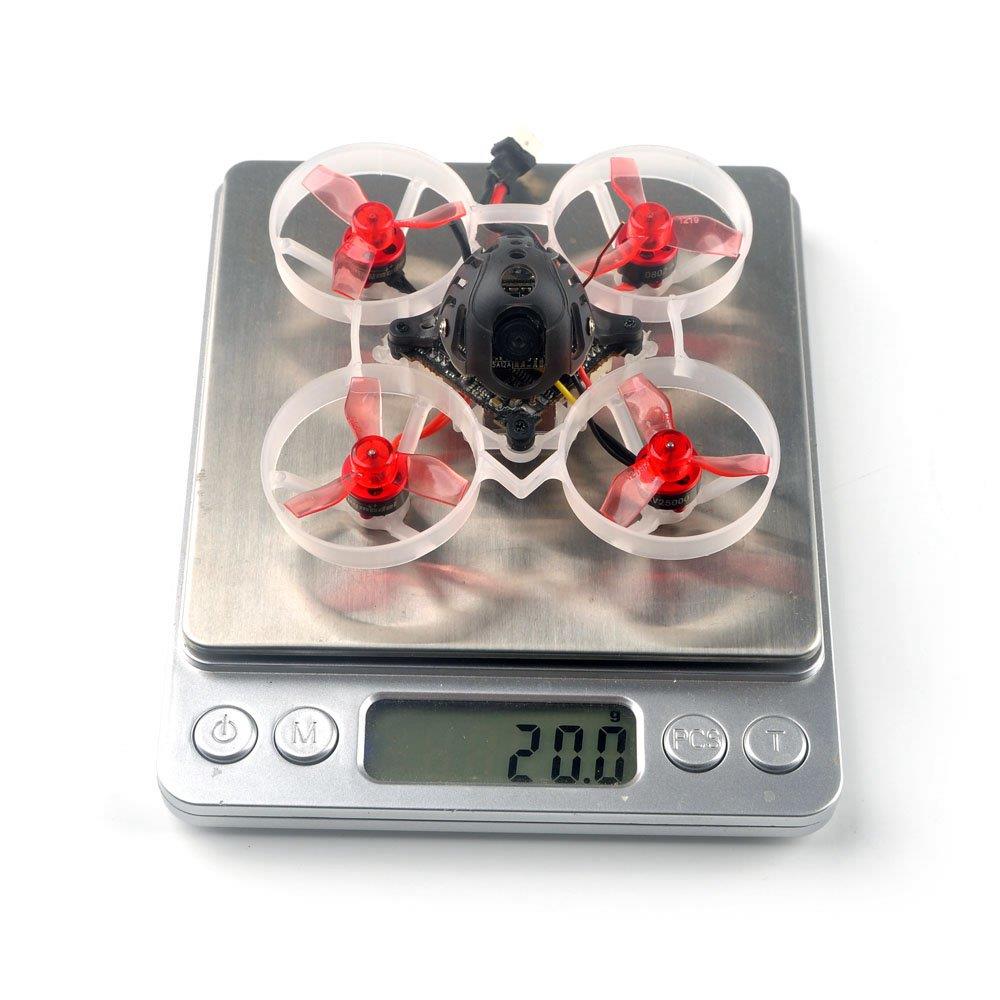

Weight: 20g

Specification

Crazybee F4 Lite FC(Built-in ESC & Receiver & VTX)

(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board Size: 28.5 * 28.5MM
Power Supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX

Onboard Flysky Receiver Version

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m

Onboard 5A BLheli_S 4in1 ESC

MCU upgraded to EFM8BB21
Power Supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory Firmware: O_H_5_REV16_7.HEX

SE0802 19000KV Motor

Model: SE0802 19000KV
Configu-ration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Shaft Diameter: Φ1mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
Weight(g): 1.9g
No.of Cells(Lipo): 1S only
Default Protocol: DSHOT600
Failsafe support

Gemfan 1219 3-Blade Propeller

Brand Name: Gemfan
Center Thickness: 5mm
Prop Disk Diameter: 31mm
Center Hole Inner Diameter: 1.0mm
Quantity: 4 CW & 4 CCW
Weight: 0.28g

Onboard 5.8G 40CH 25mW VTX

Output Power: 25mw
Frequency: 40CH
Input Voltage: 3.3V 5.5V
Current Consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

Runcam Nano 3 FPV Camera

Brand Name: Runcam
Model: Nano 3
Item Name: 1/3 CMOS 800TVL Camera
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
Smart audio ready

Lipo Battery ( Included)

Continuous Discharge Rate: 30C
Size: 57mm x 12mm x 7mm
Weight: 8g
Connector: PH2.0
Quantity: 4pcs

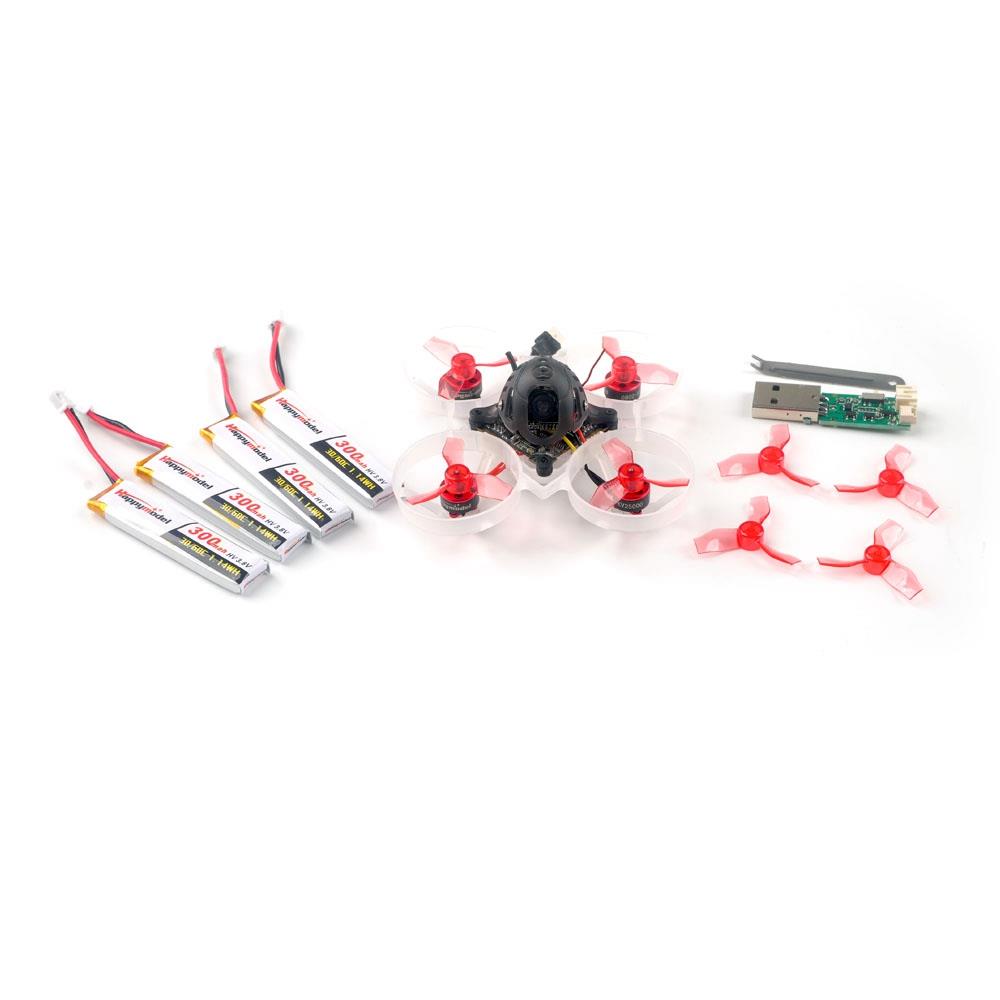

Package Contents

1 x Mobula6 1S Brushless Whoop
4 x 1S 300mAh 30C Lipo Batteries
1 x 1S Lipo/LIHV USB Charger
1 x Propeller Disassemble Tool
