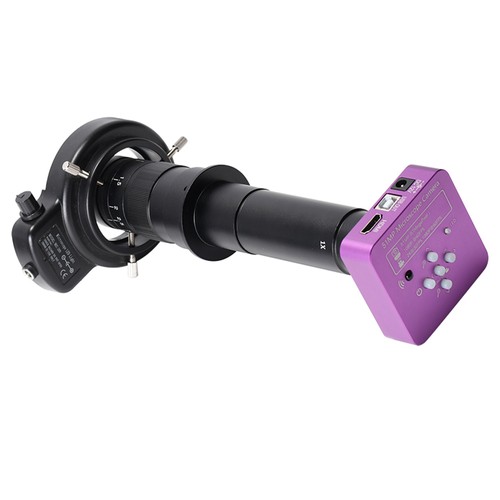

HAYEAR Microscope Camera, HD 51MP 60FPS, HDMI USB Port, 300X Lens, 144 LED Light, for Phone PCB Welding - US Plug

Brand: HAYEAR Item Code:523288
G-coin
Get Now
G-coin
Ship from:
Option:
QTY:
Shipping:
Add to Cart Buy Now
1
Payment:
Price Match
Bulk Order Rebate
Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair, schools, etc.

2. Especially suitable for observing the surface micro-structure of large objects.

3. Using high-quality materials, the microscope camera is strong and durable and has a long service life.

4. HD camera is designed with a 51 megapixel CMOS sensor 1/2.9 inch, with HDMI USB port.

5. Due to strict quality control and quality assurance, the microscope camera has a high safety factor and can be used with peace of mind.



Specification

General

Brand: HAYEAR
Type: Microscopic Camera
Model: HY-5130-300X-144 US
Color: Pink

Specification Microscope Camera Specification:
Module: 5130
Sensor: 51MP CMOS
Optical Format: 1/2.9 inch
Pixel Size: 1.335μmx1.335μm
Interface: HDMI (Type A). USB (Type B). Small memory card
HDMI Image Resolution: 51MP
Video Resolution: 2K @30FPS 1080p @60FPS
HDMI Resolution: 1920 x 1080p 60FPS
HDMI Scale: Support 4: 3,16: 9,16: 10 screen
USB2.0 (Drive Free): 1920 x 1080 @30FPS, 1280 x 720 @30FPS, 640 x 510 @30FPS
Small Memory Card: Up to 128GB (not included)
AWB: AWB color correction/automatic/manual
R.G.B value setting independent
Exposure: Automatic/manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dotted Line: 2 lines, color, width, position can be set
Sharpness Contrast Color Gain: Support
Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages.
Digital Zoom: Support
Infrared Remote Control: Support
Voltage Input: DC 12V
Power Supply Voltage: Input: AC100-240V; Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port
Remote Control Battery: 1 x 2302 button battery (delivered without battery)

300X C Lens Specification:
Working Distance: Approx.95mm / 3.7in
Zoom C mount lens
Scaling Ratio: 6.5: 1
Objective lens magnification 0.7-4.5X (approximately 10-300X on the screen)
Size: L X DIA: Approx.240x 50mm / 9.5 x 2in
(300X maximum working distance approx.10cm / 4in)
Provides strong and concentrated shadow-free lighting

144 Bright LED Specification:
Variable lighting direction
Variable power control
Strong and concentrated shadowless lighting
100,000 hours of life
Power Input: 100-240V, 50-60Hz, automatic switching
The inner diameter of the ring light is approx. 27mm / 1.1in
Overall Outer Diameter: Approx. 45mm / 1.8in
Working Distance: Approx.27 - 120mm / 1.1 - 4.7in

Problem Solution:
LCD no video or flickering
1. Check the power supply. Check if the red LED lights up. Press PowerKey to move it up.
2. Check the lens cover. Increase lighting.
LCD has black bars and image distortion
1. Change the resolution of the LCD.
2. Change the camera resolution.
Dirty spots
1. Check the camera and lens, find the dust, and then clean it with absolute ethanol or detergent.

Weight & Size Product Weight: 1.3kg
Package Weight: 1.5kg
Package Size(L x W x H): 24*13*16cm
Package Contents

1 x 51MP Microscope Camera
1 x Power Adapter
1 x Infrared Remote Control
1 x USB Cable
1 x HDMI Cable
1 x Ring Light
1 x 300X Lens
