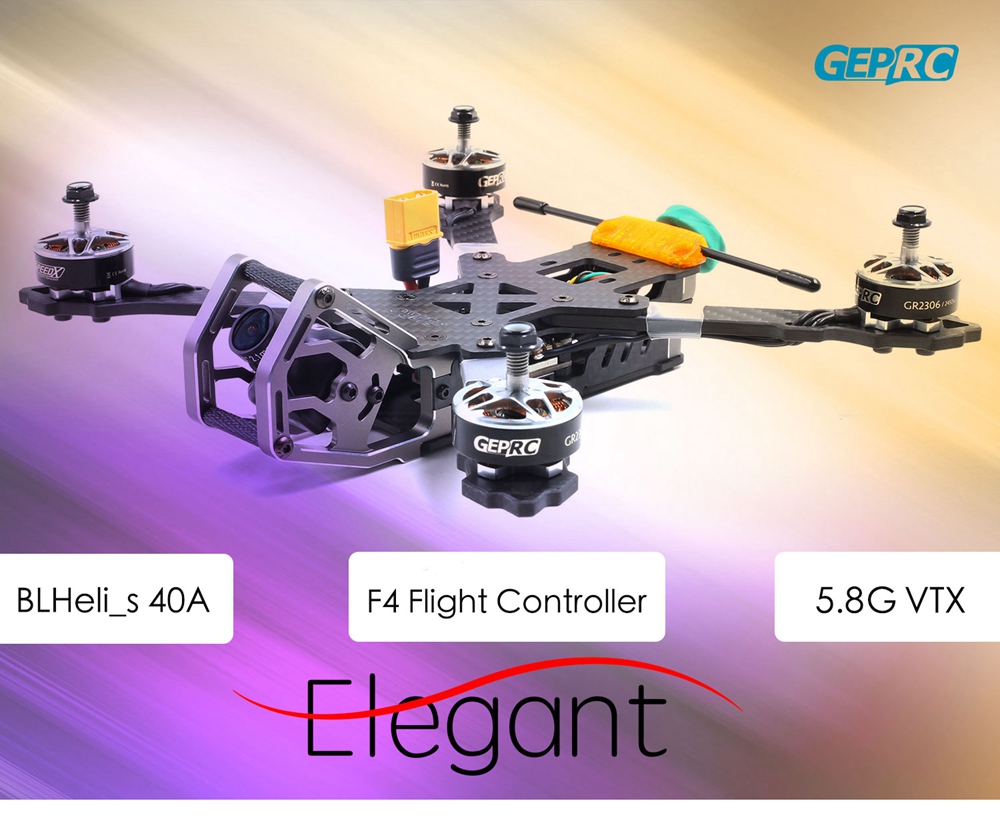

    GEPRC Elegant 230mm FPV Racing Drone SPAN F4 FC BLHeli_s 2-5S 40A Dshot600 ESC 5.8G 48CH VTX Frsky R-XSR Receiver - BNF

    Ship to:
    United States
    Select the desired shipping method
    Shipping Company Estimated Delivery Time Shipping Cost
    *Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
    0 item(s) added
    View CartContinue Shopping

    Highlights

    GEP-KHX5 Frame

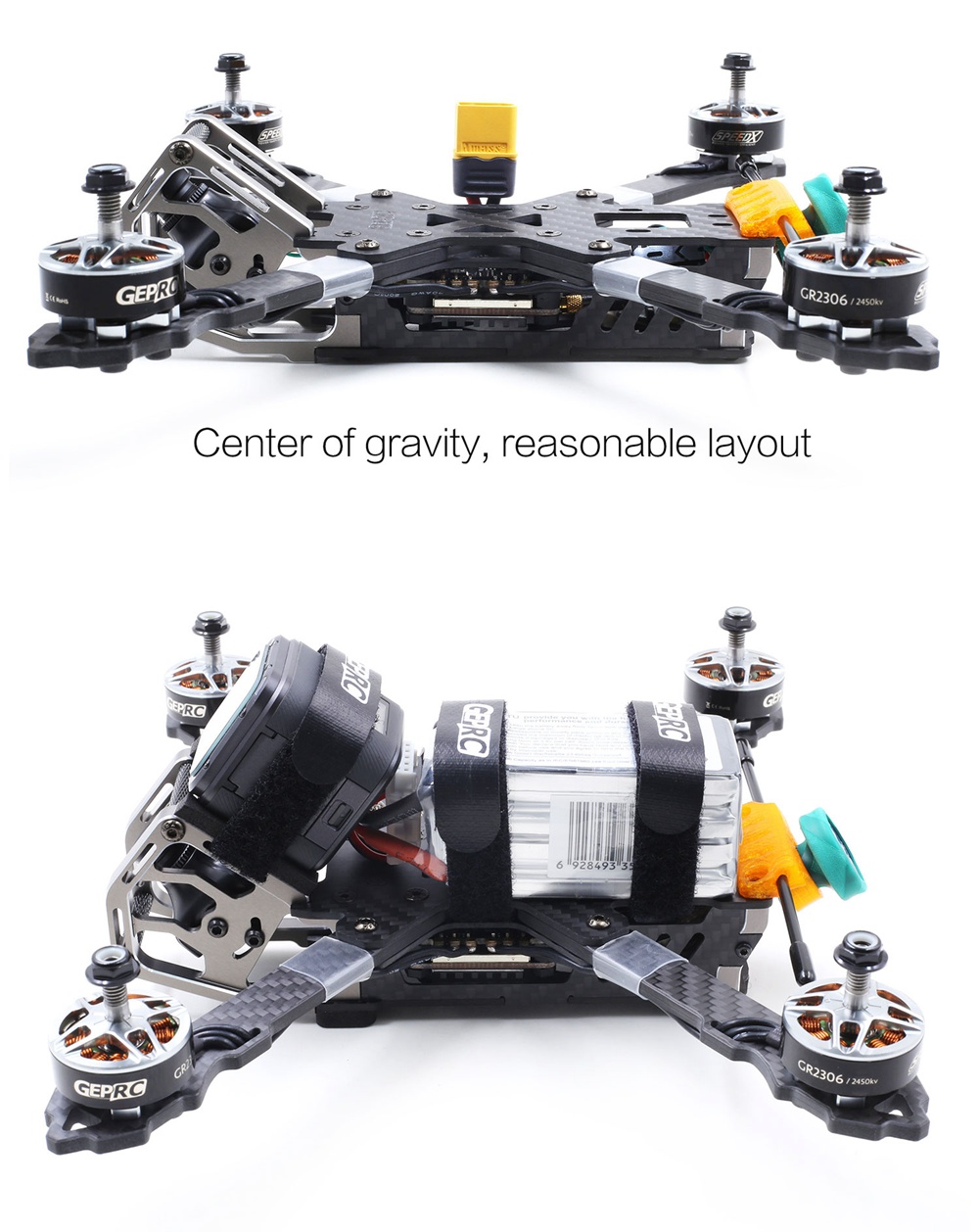

    Frame layout is reasonable, center of gravity center, reduce energy waste. Use mature and stable GEP-KHX5 frame, strong and fall – resistant, all 3k carbon plate.

    SPAN F4 Tower

    Use SPAN F4 Tower, stable and simple.

    PID Calibrated

    The GEPRC team carefully calibrated the PID to ensure reliability and stability, and the binding flew.

    GR2306 2450kv Motor

    High efficiency GR2306 2450kv motor, with GEP5040 propeller, achieve perfect output.

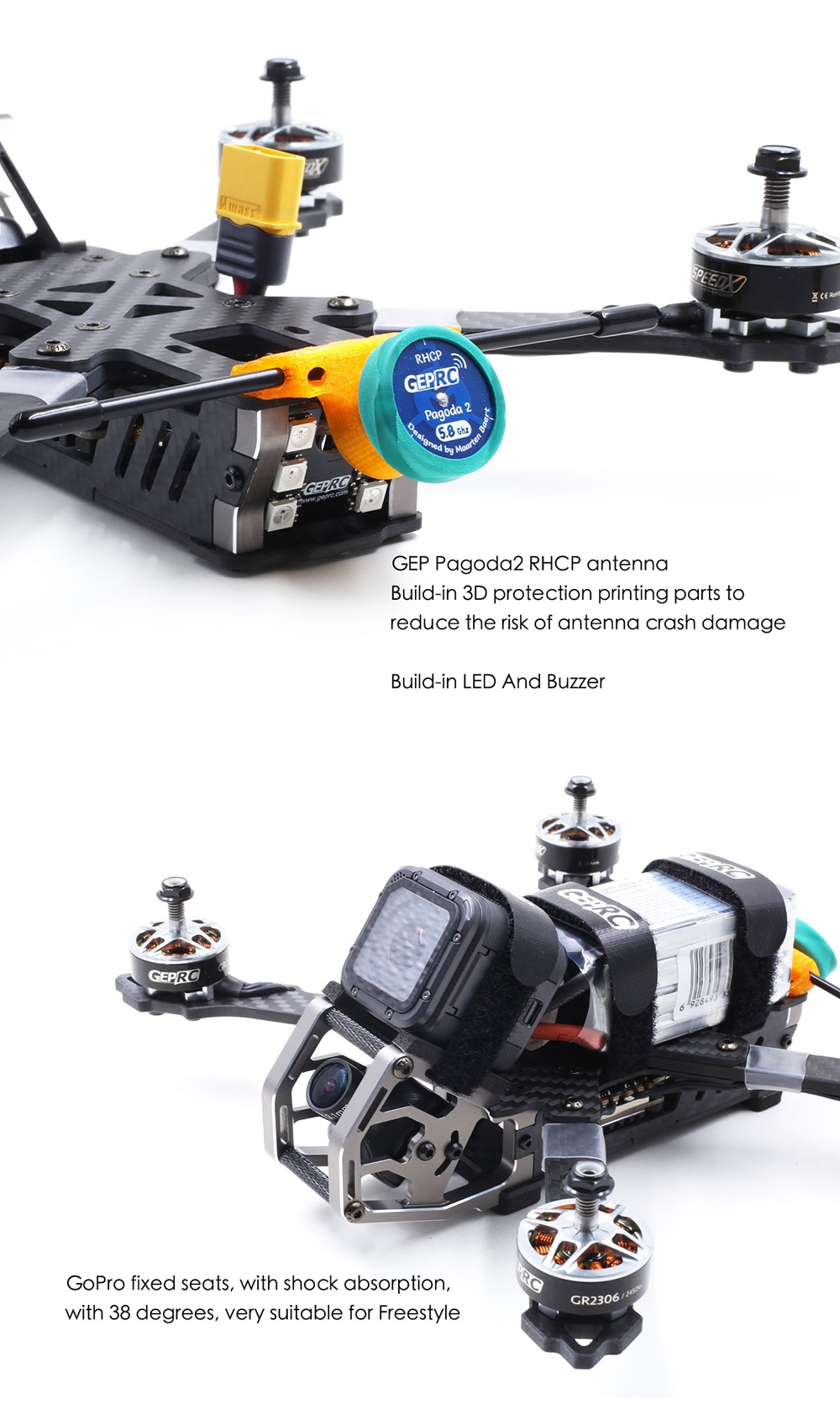

    Pagoda2 Antenna

    Use the Pagoda2 antenna to determine the image quality.

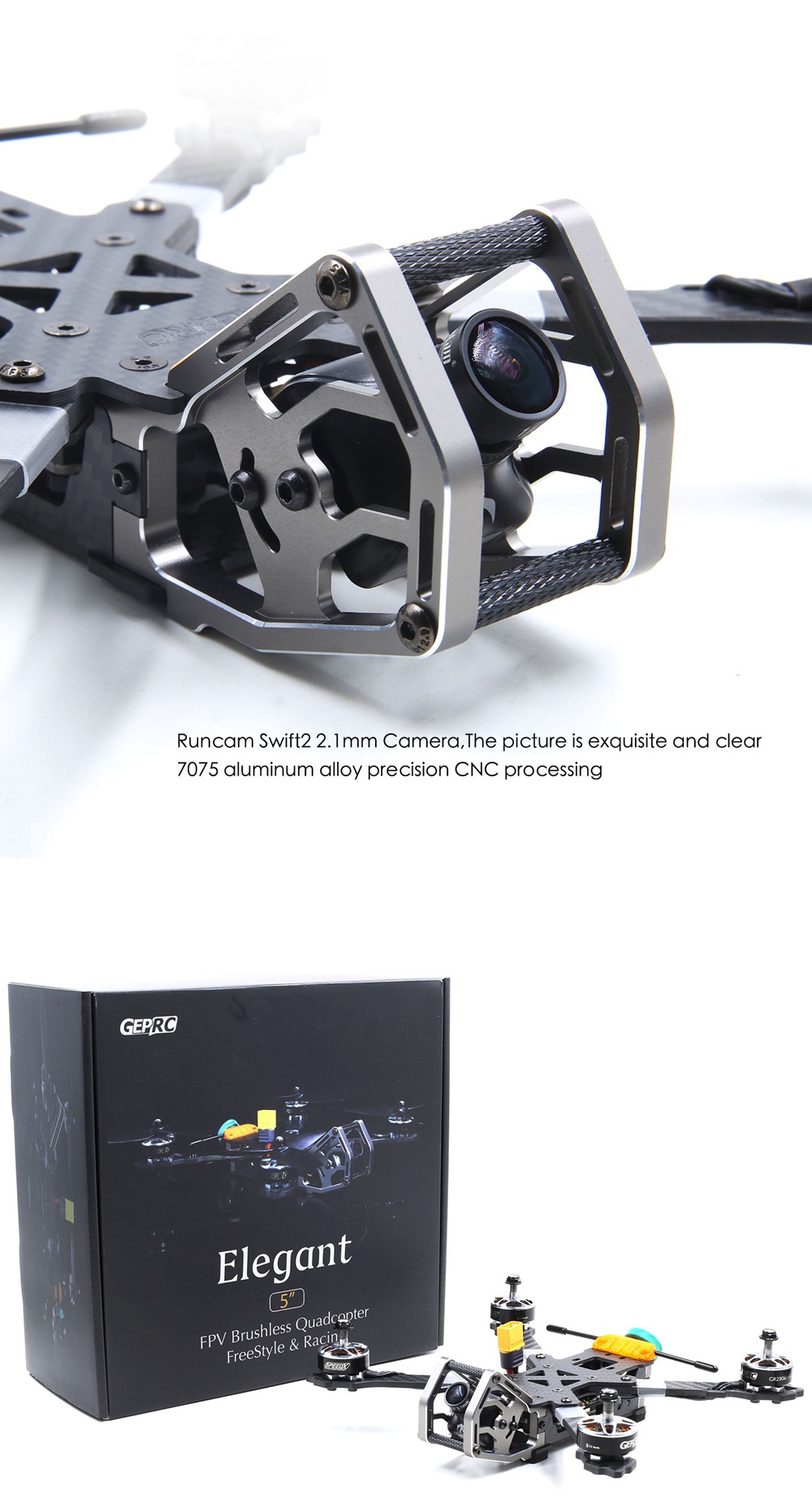

    Runcam Swift 2 Lens

    Runcam Swift 2 lens for clarity.

    Blhelis 40A ESC

    Blhelis 40A ESC ensures power output.

    DIY Power

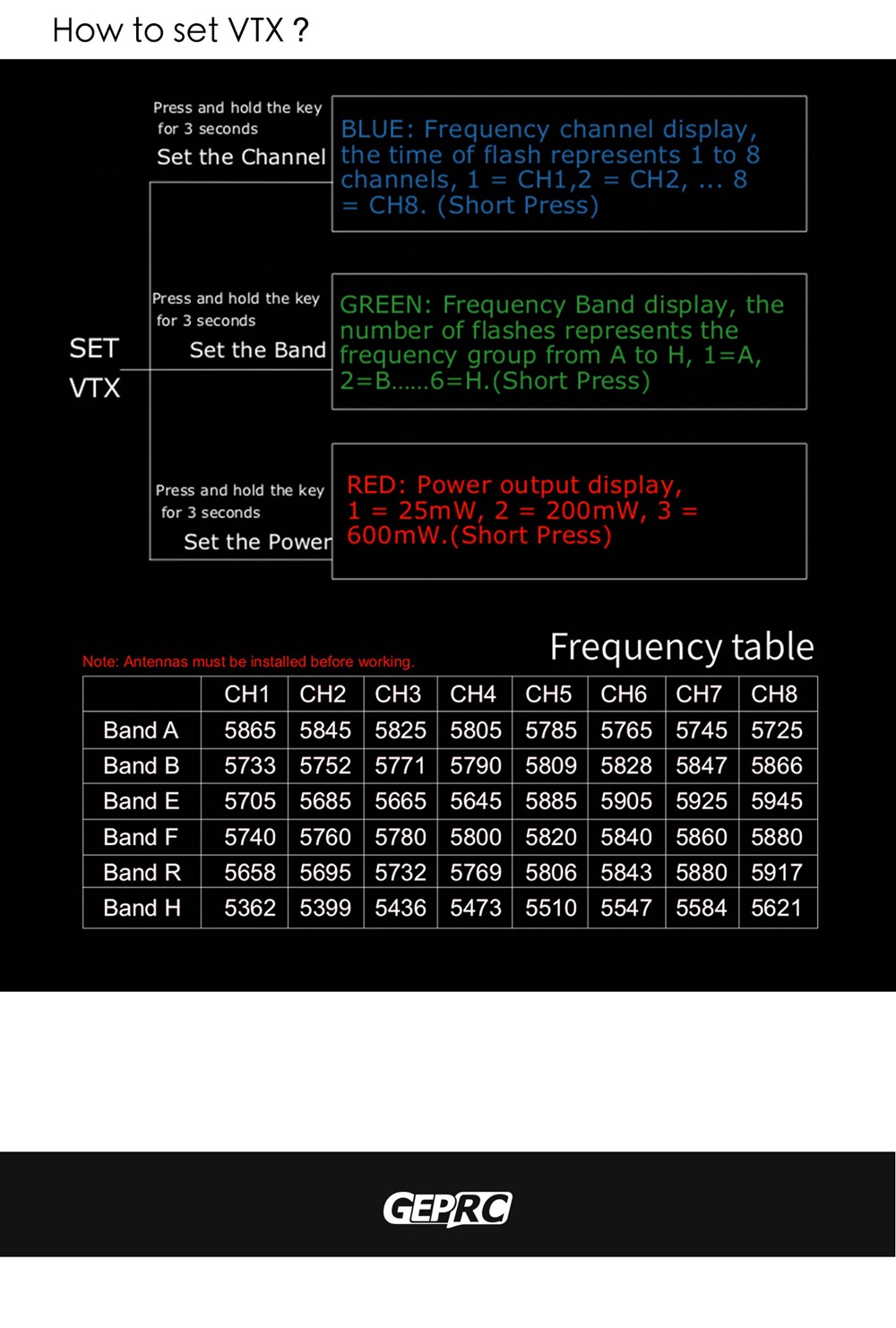

    VTX 5.8g, Power 0/25/200/600mw can select.

    GEPRC Elegant 230mm FPV Racing Drone SPAN F4 FC BLHeli_s 2-5S 40A Dshot600 ESC 5.8G 48CH VTX Frsky R-XSR Receiver - BNFGEPRC Elegant 230mm FPV Racing Drone SPAN F4 FC BLHeli_s 2-5S 40A Dshot600 ESC 5.8G 48CH VTX Frsky R-XSR Receiver - BNFGEPRC Elegant 230mm FPV Racing Drone SPAN F4 FC BLHeli_s 2-5S 40A Dshot600 ESC 5.8G 48CH VTX Frsky R-XSR Receiver - BNFGEPRC Elegant 230mm FPV Racing Drone SPAN F4 FC BLHeli_s 2-5S 40A Dshot600 ESC 5.8G 48CH VTX Frsky R-XSR Receiver - BNFGEPRC Elegant 230mm FPV Racing Drone SPAN F4 FC BLHeli_s 2-5S 40A Dshot600 ESC 5.8G 48CH VTX Frsky R-XSR Receiver - BNFGEPRC Elegant 230mm FPV Racing Drone SPAN F4 FC BLHeli_s 2-5S 40A Dshot600 ESC 5.8G 48CH VTX Frsky R-XSR Receiver - BNFGEPRC Elegant 230mm FPV Racing Drone SPAN F4 FC BLHeli_s 2-5S 40A Dshot600 ESC 5.8G 48CH VTX Frsky R-XSR Receiver - BNF

    Specification

    General

    Brand: GEPRC
    Model: Elegant
    Wheelbase: 230mm
    Firmware: betaflight_3.2.5_OMNIBUSF4SD
    Input Voltage: support 2-5S Lipo
    Motor: GR2306 2450kv
    Propeller: GEP5040*3 (10 pairs)
    Weight: 348 grams without battery or props
    Receiver: Frsky R-XSR (ONLY BNF INCLUDE)

    GEPRC GEP-KHX5 Frame
    Carbon: Full 3K carbon fiber Twill
    CNC: High precision CNC 7075
    Wheelbase: 230mm
    Thickness of bottom plate: 2mm
    Thickness of side plate: 1.5mm
    Thickness of arms plate:4mm

    Flight Controller: SPAN F4 Tower AIO
    MCU: STM32F405
    MPU: MPU6000
    ESC: 40A * 4 BLHeli_s (Dshot 150/300/600) support 2-5S LiPo
    VTX:5.8GHz (48 Channel) (OFF/25/200/600mW)
    Package Contents

    1 x GEPRC Elegant FPV Racing Drone PNP
    10 x GEP5040-3 Propeller
    3 x Battery strap
    1 x Spare Arms
    2 x Pagoda2 RHCP MMCX Antenna(1pcs installed)
    1 x Frsky R-XSR Receiver(ONLY BNF)
