Highlights
- CPU: RK3288 Cortex-A17 quad core up to 1.8GHz
- GPU: Mali-T764 GPU with support for OpenGL ES 1.1/2.0 /3.0, OpenVG1.1, OpenCL, Directx11
- DDR3 2GB RAM + eMMC 16GB ROM
- Supports Android4.4 and Ubuntu dual system. It can e used for office, study, games, entertainment, server, software evelopment, and intelligent embedded equitment...
- Support 2.4 GHz / 5 GHz Dual-Band Wi-Fi, as well as Bluetooth 4.0 and Gigabit Ethernet, has a strong network extension and transmission capacity
- HDMI 2.0 supports up to 18Gbps Data transmission rate and up to 4Kx2K@60HzVideo resolution
Specification
| CPU | RK3288 Cortex-A17 quad core@ 1.8GHz |
| GPU |
Mali-T764 GPU with support for OpenGL ES 1.1/2.0 /3.0, |
| RAM | 2GB DDR3 |
| Flash | 16GB eMMC Flash, Micro SD |
| Internet | Ethernet - 10/100/1000M RJ45 Wireless - 2.4GHz/5GHz AC WiFi, Support 802.11a/b/g/n/ac Bluetooth 4.0 |
| Video | HDMI2.0 up to 3840x2160@60P VGA up to 1080P MIPI, LVDS, EDP, MIPI-CSI |
| Audio | HDMI, SPDIF, erphone, MIC |
| USB | 2 x USB2.0 HOST 1 x Micro USB OTG |
| IR | Support self defined IR remote |
| KEY | 1 x Power Key 1 x Recovery Key 1 x Reset Key |
| LED | 2 x Programmable LED |
| Debug | Serial Console for debugging |

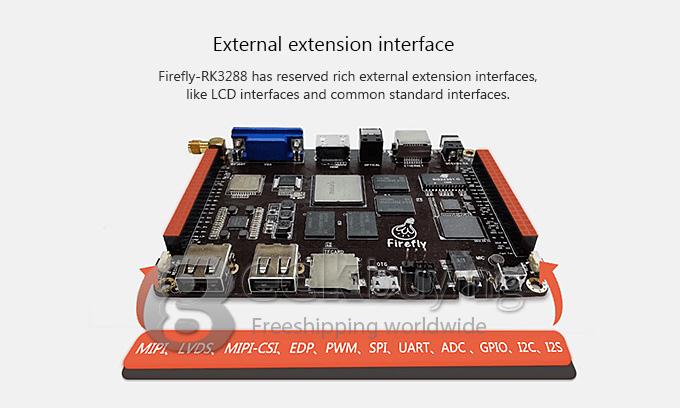

| Extend(42x2) Pin | MIPI, LVDS, MIPI-CSI, EDP, PWM, SPI, UART, ADC, GPIO,I2C,I2S |
| Dimension | 118 x 85mm |
What's in the box?
- 1 x Firefly RK3288 board
- 1 x Acrylic rack
- 1 x Power cable
- 1 x Wifi antenna
- 1 x Screw
- 1 x Packing box
