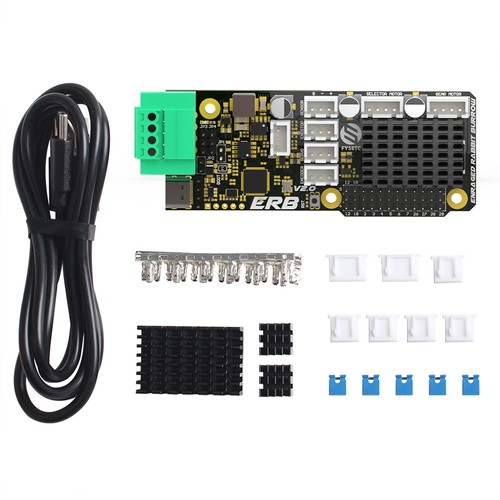

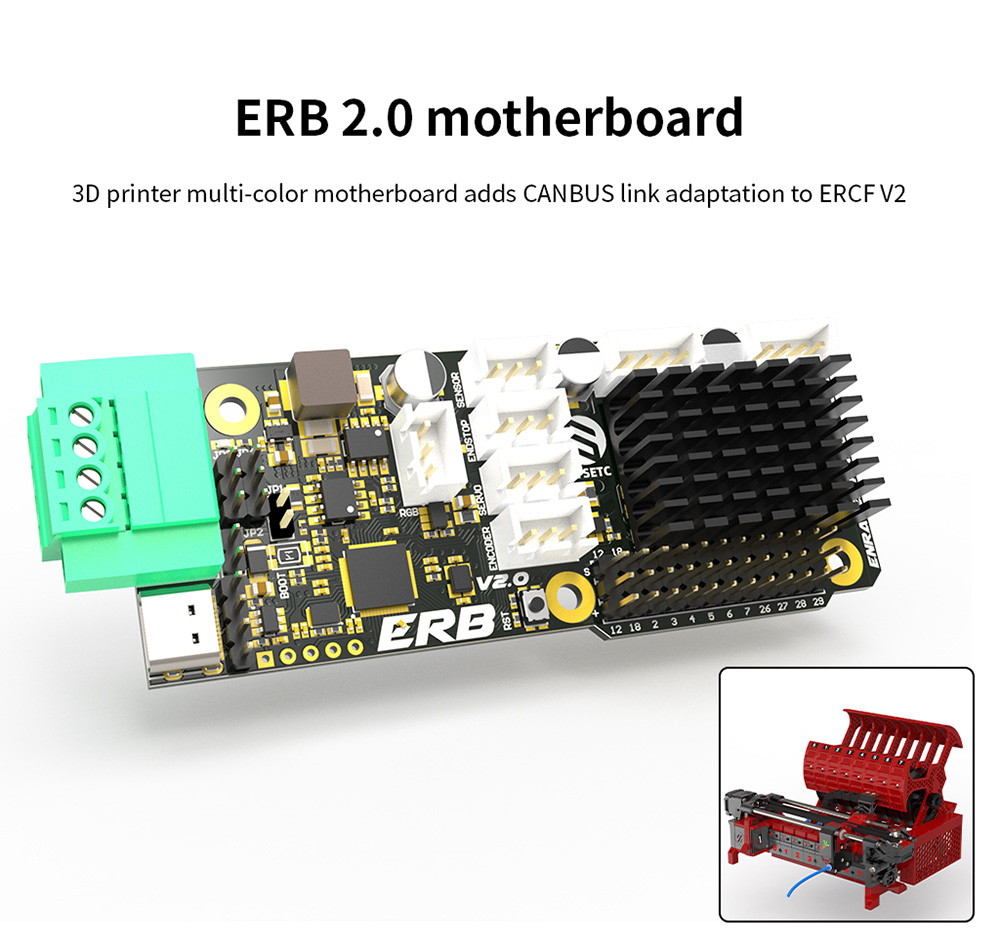

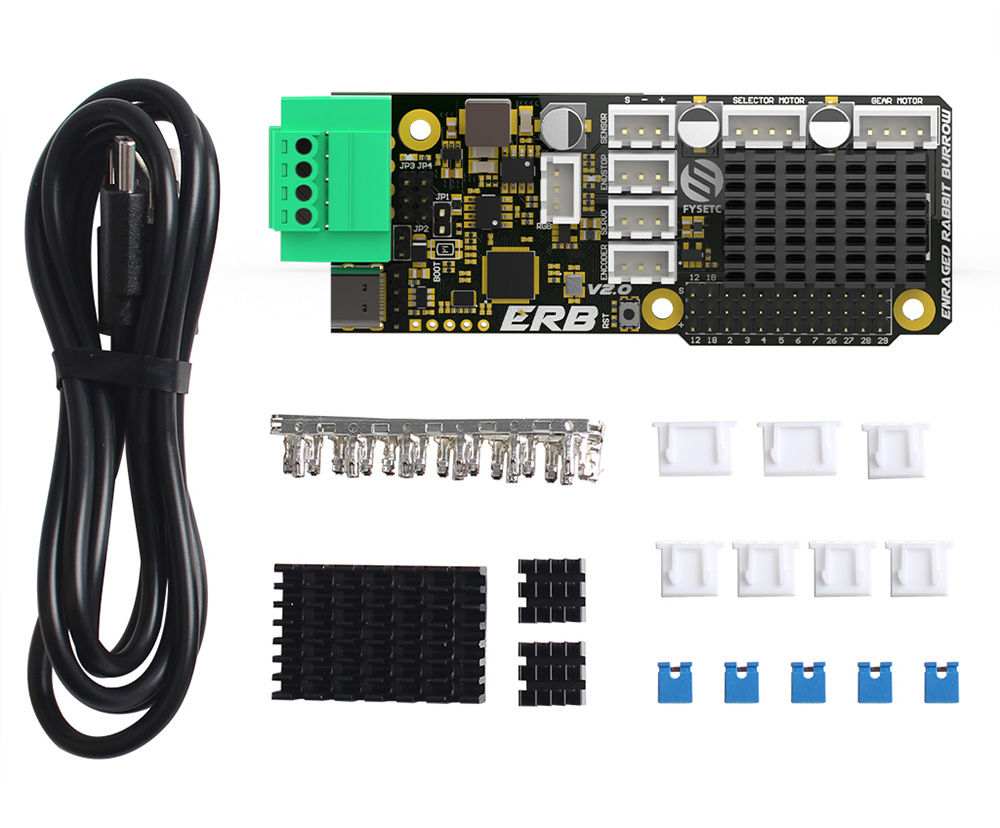

FYSETC ERB V2.0 Board for VORON 2.4 3D Printer

Highlights

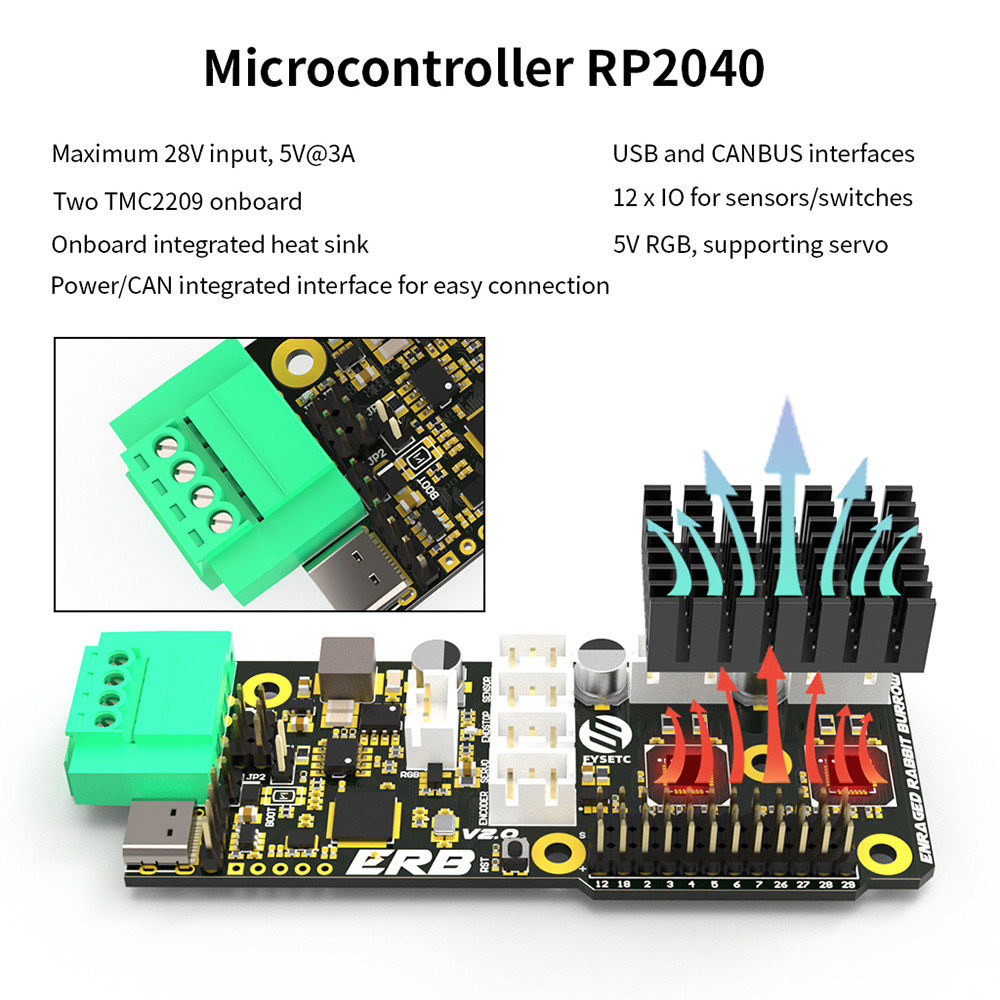

ERB is a 3D printer multi-color control board based on RP2040, mainly used in Enraged Rabbit project. It can also be used in other two-axis stepper motor control situations.

V2:

*Add CANBUS interface

*Add 20*30 heat sinks

*Replace with a 4Pin connector, which can be quickly plugged in and *out, for Power & USB/CAN.

*Add optional USB and CANBUS interfaces

*Add status indicator for Katapult bootloader or status indication.

*Preset thermistor temperature measurement circuit

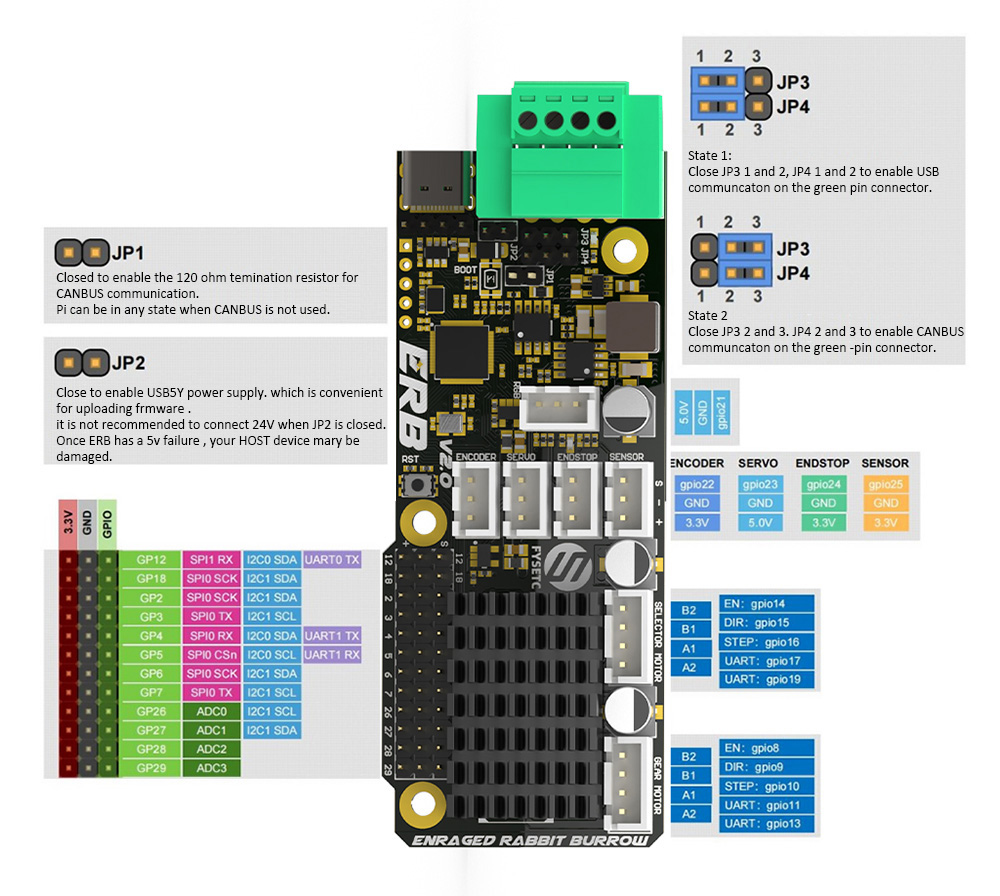

*12 x IO for gate sensors/switch

*Onboard integrated heat sink

Specification
