Highlights

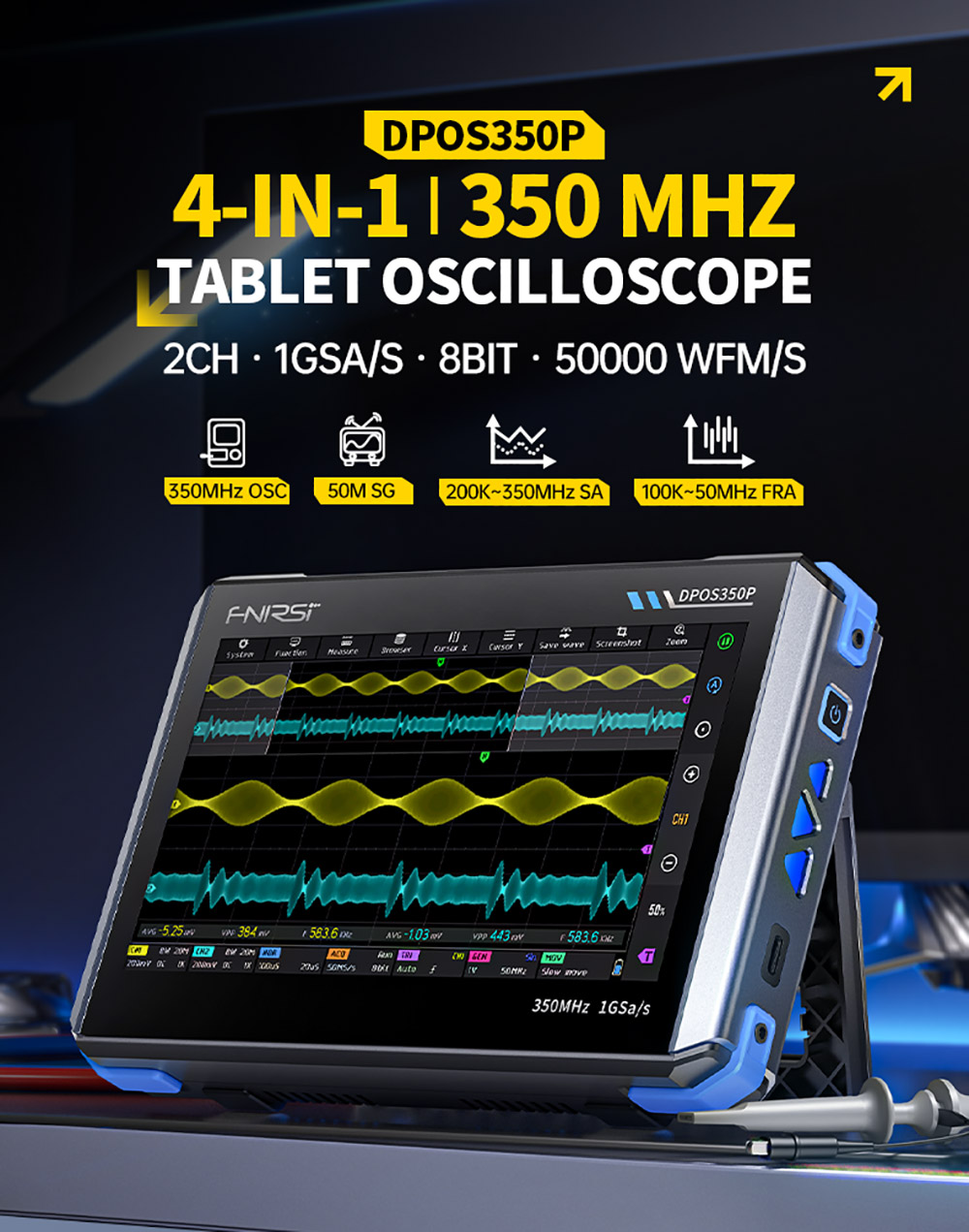

Powerful Multi-function Integration

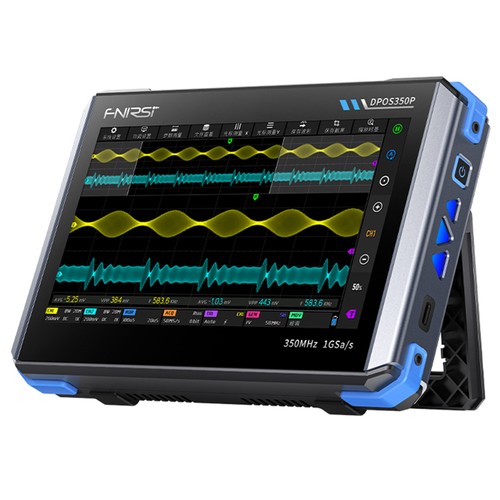

The DPOS350P integrates a 350MHz oscilloscope, 50MHz signal generator, 200K~350MHz spectrum analyzer, and 50MHz frequency response analyzer, making it a versatile solution for industrial, research, and maintenance applications.

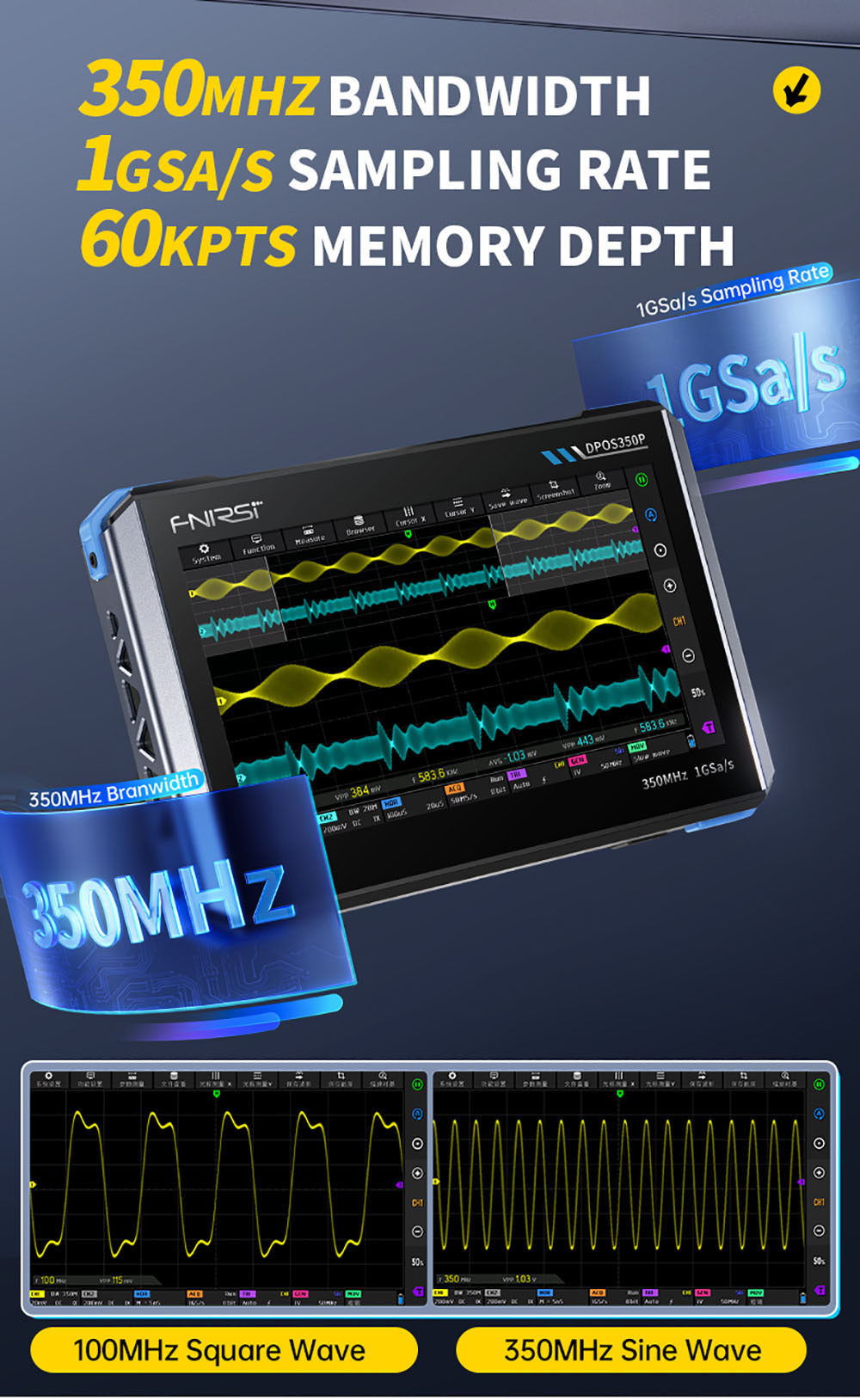

High-Performance Waveform Capture
With a 1GSPS real-time sampling rate, 350MHz analog bandwidth (single-channel), and 50,000 wfm/s waveform refresh rate, it accurately captures and displays even low-probability anomaly signals for precise analysis.

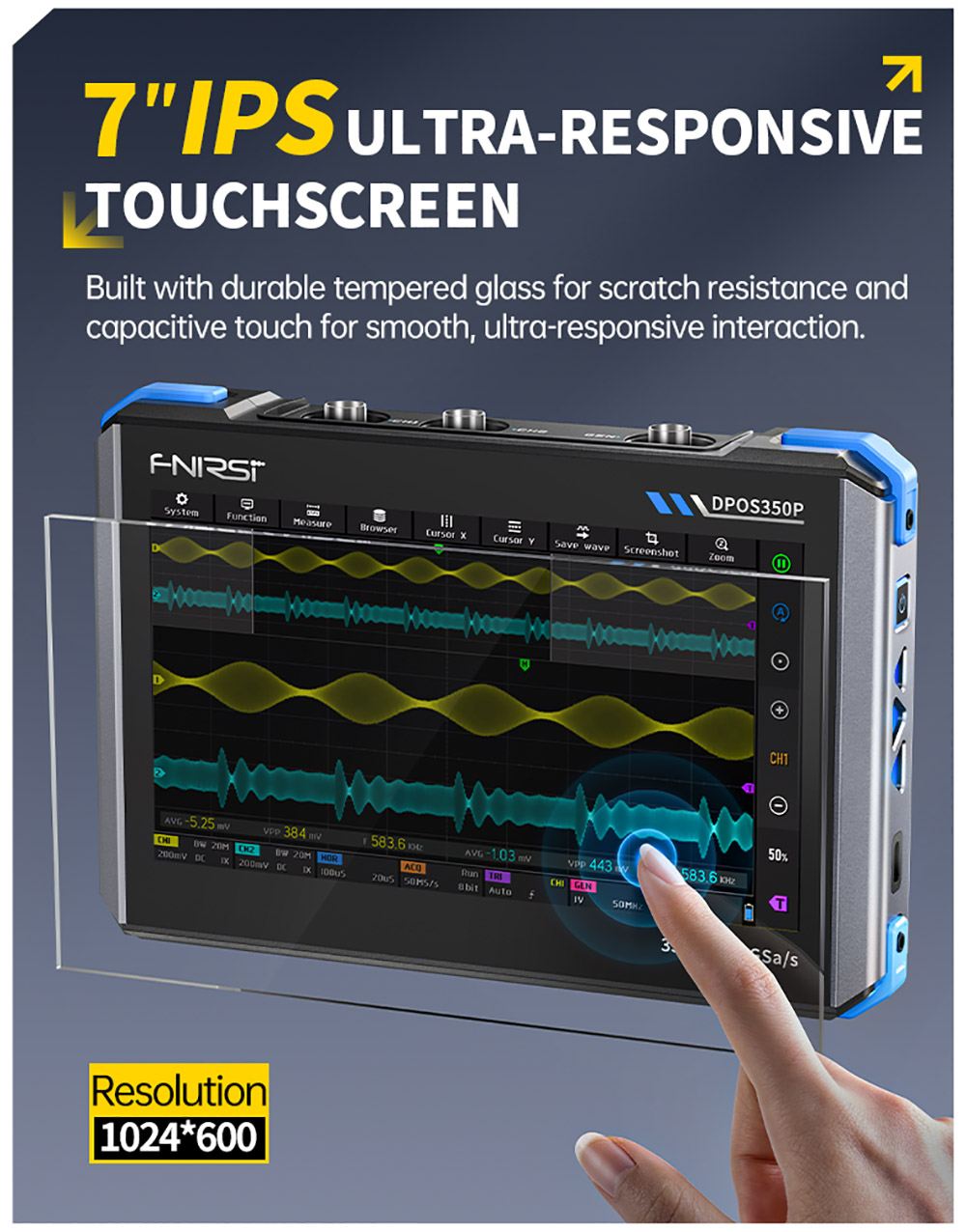

Fine Display and Operation

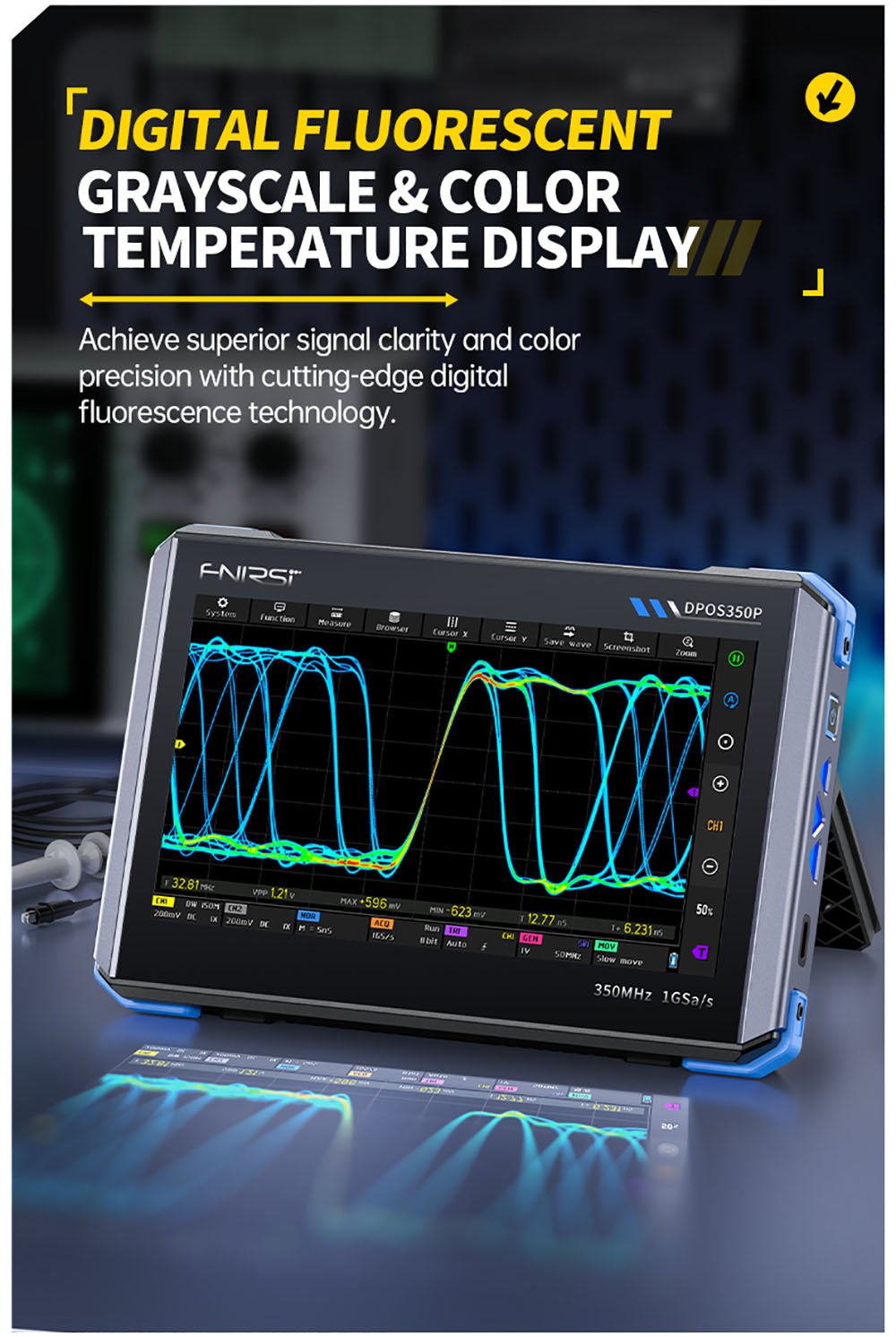

Featuring a high-resolution 1024x600 IPS touchscreen, the DPOS350P offers clear waveform display with grayscale and color temperature mode switching, ensuring ease of use in various testing environments.
Rich Signal Generation and Analysis Capabilities

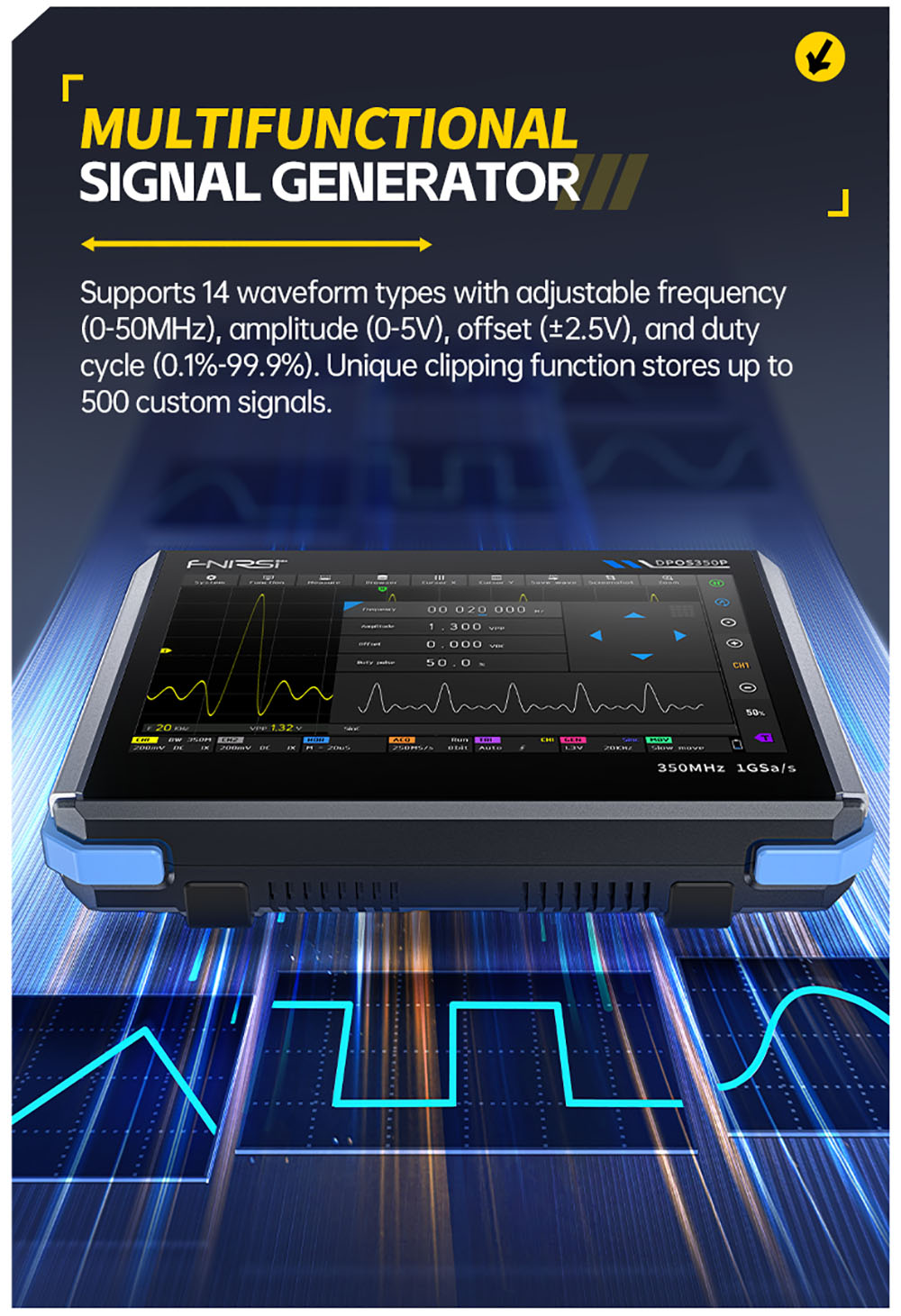

The built-in 50MHz signal generator supports 14 standard waveforms and custom waveform creation, while the 200K~350MHz spectrum analyzer is ideal for EMI, RF, and high-frequency signal testing.

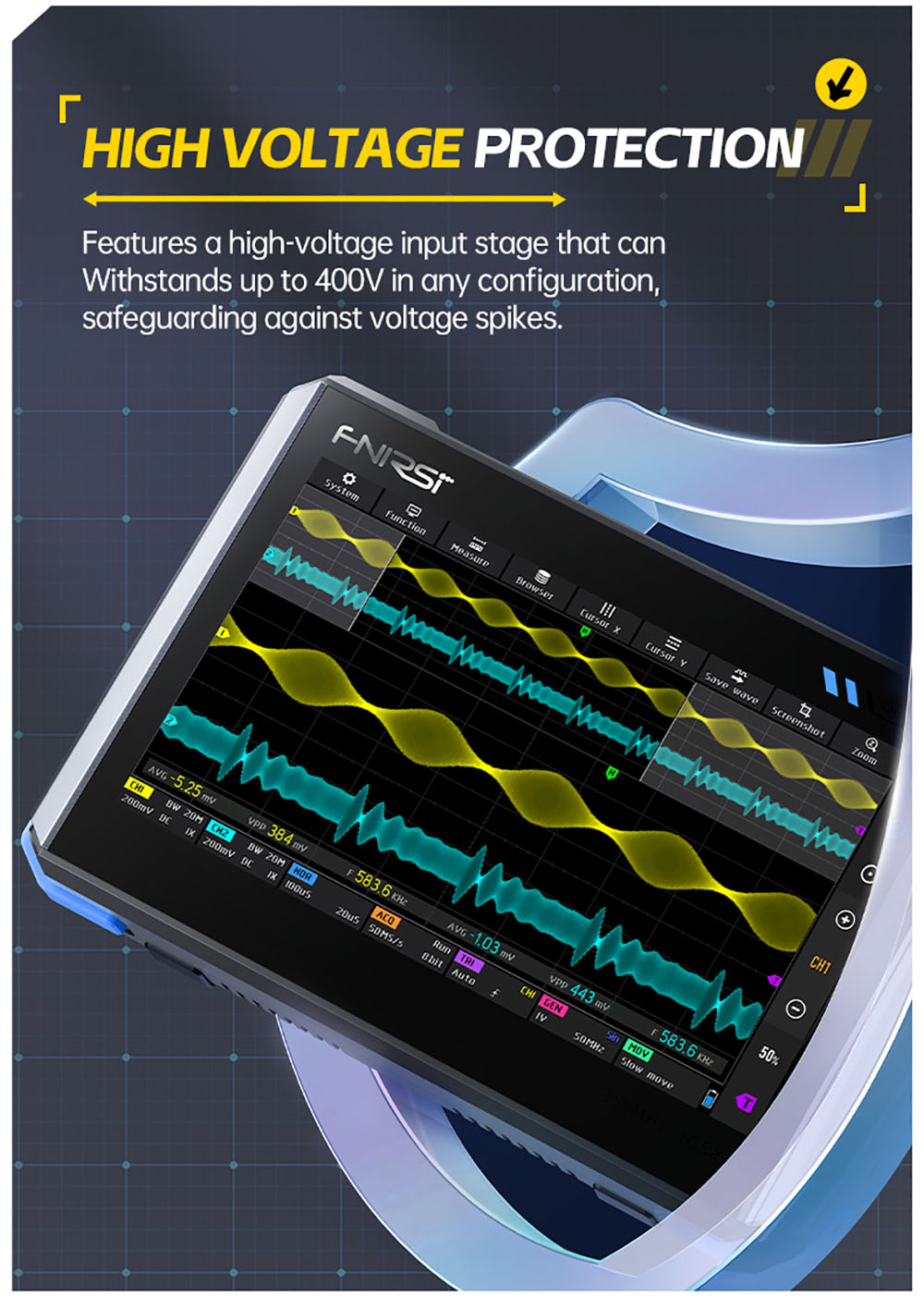

High-Voltage Protection and Fast Charging
Equipped with QC18W fast charging (fully charged in 2 hours) and high-voltage protection up to 400V, the DPOS350P ensures long-term, stable operation. Its compact design makes it perfect for labs, production lines, and fieldwork.

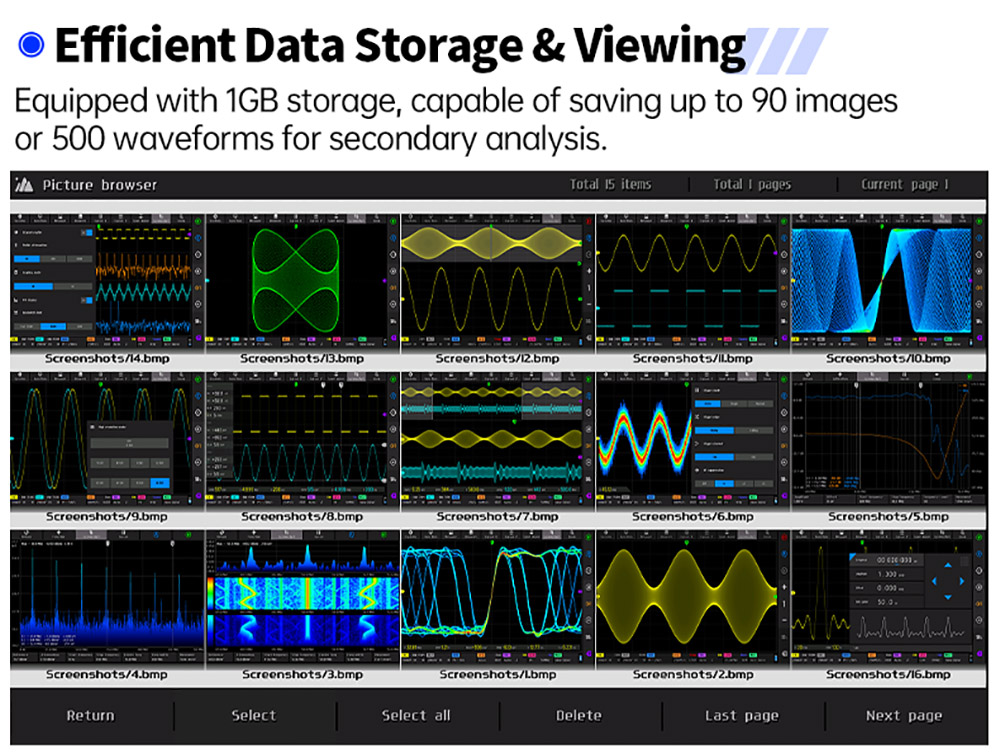

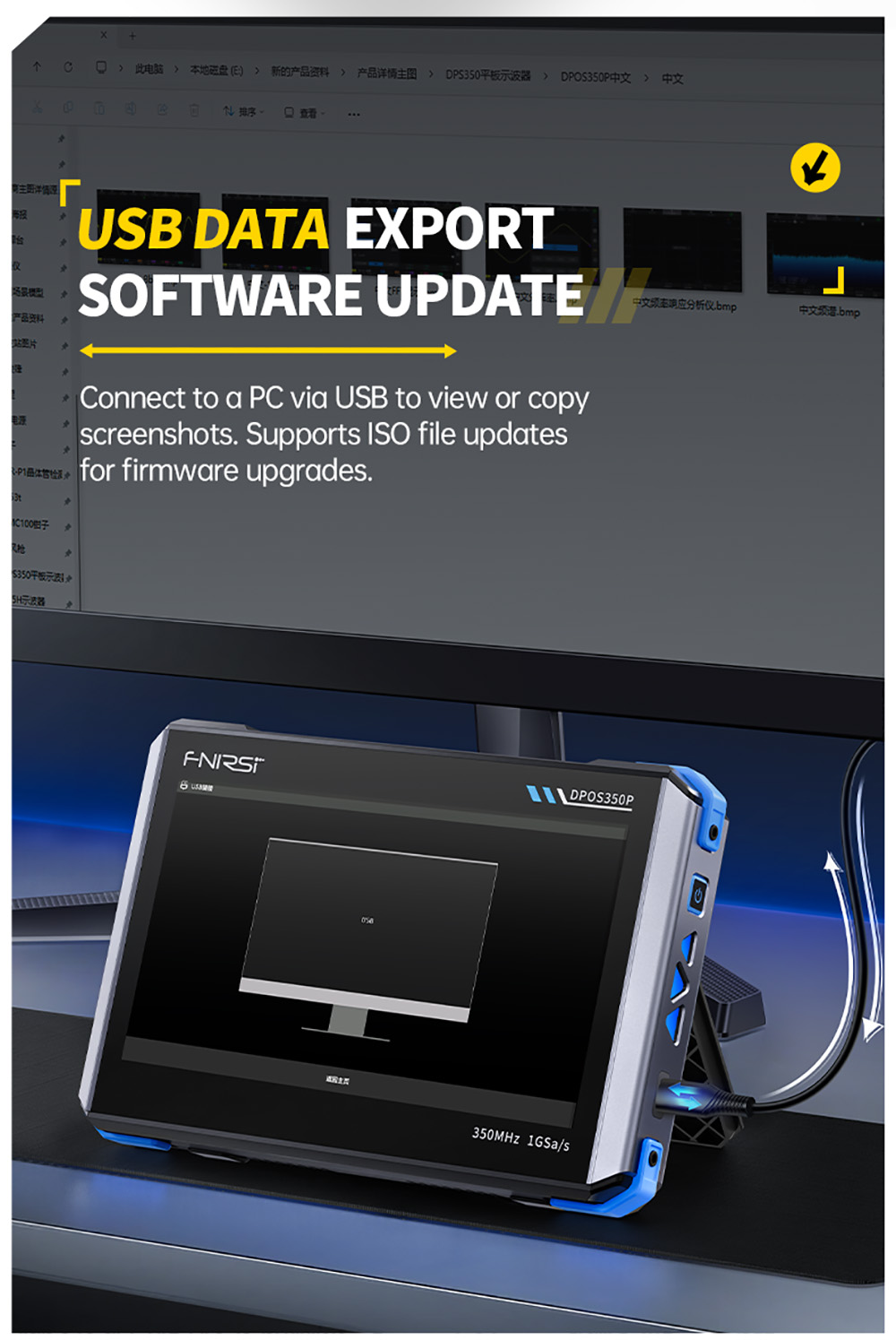

Convenient Data Storage and Export
It supports up to 500 waveform data storage and 90 image storage, and has USB data export functionality for easy analysis and report generation.
Specification
| General |
Brand: FNIRSI
Type: Tablet Oscilloscope
Model: DPOS350P |
| Specification |

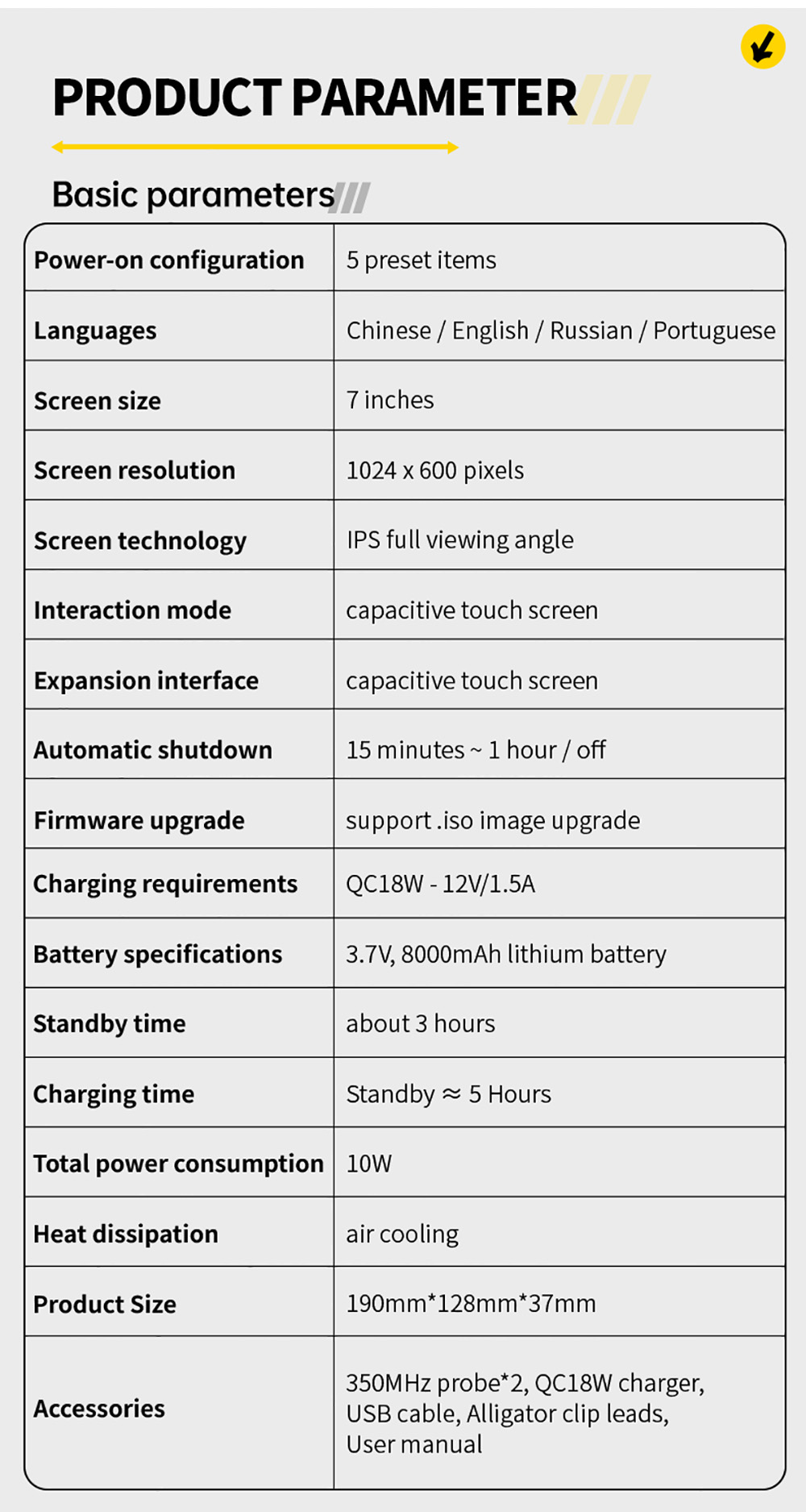

Basic Parameters:
Power-on configuration: 5 preset items
Charging requirements: QC18W - 12V/1.5A (Type-C)

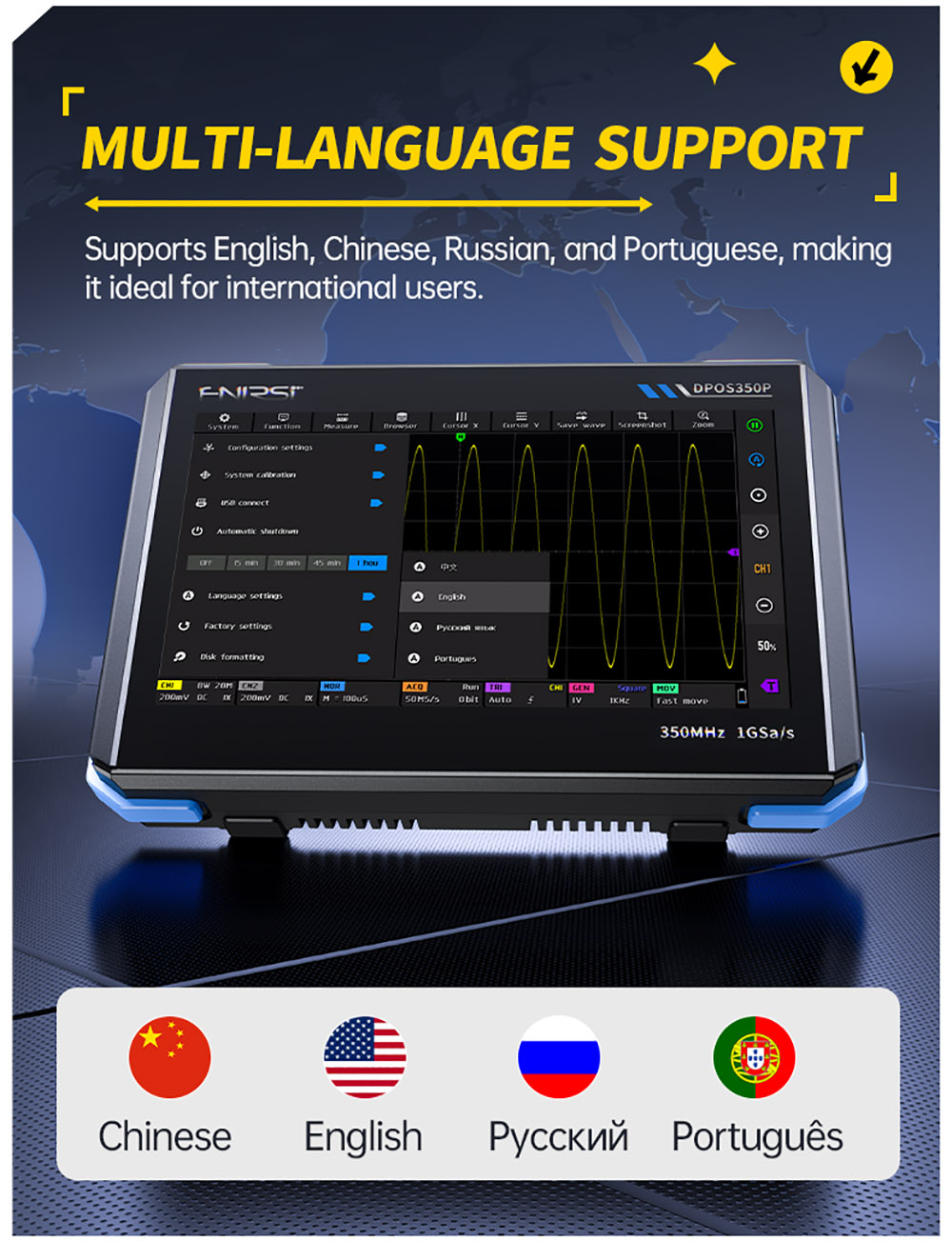

Languages: Chinese / English / Portuguese
Battery specifications: 3.7V, 8000mAh lithium battery
Screen size: 7 inches
Standby time: about 3 hours
Screen resolution: 1024 x 600 pixels
Charging time: Startup ≈ 5 Hours
Screen technology: IPS full viewing angle
Interaction mode: capacitive touch screen
Expansion interface: capacitive touch screen

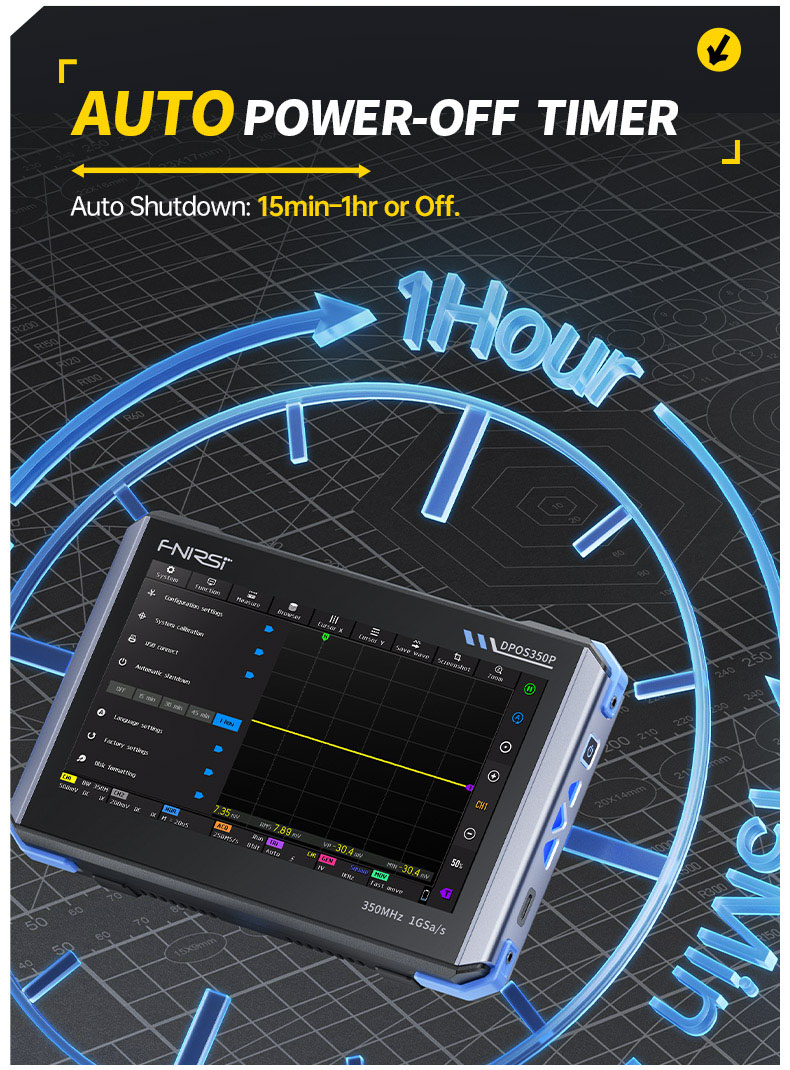

Automatic shutdown: 15 minutes ~ 1 hour / off
Storage Temperature Range: -20~60°C
Total power consumption: 10W

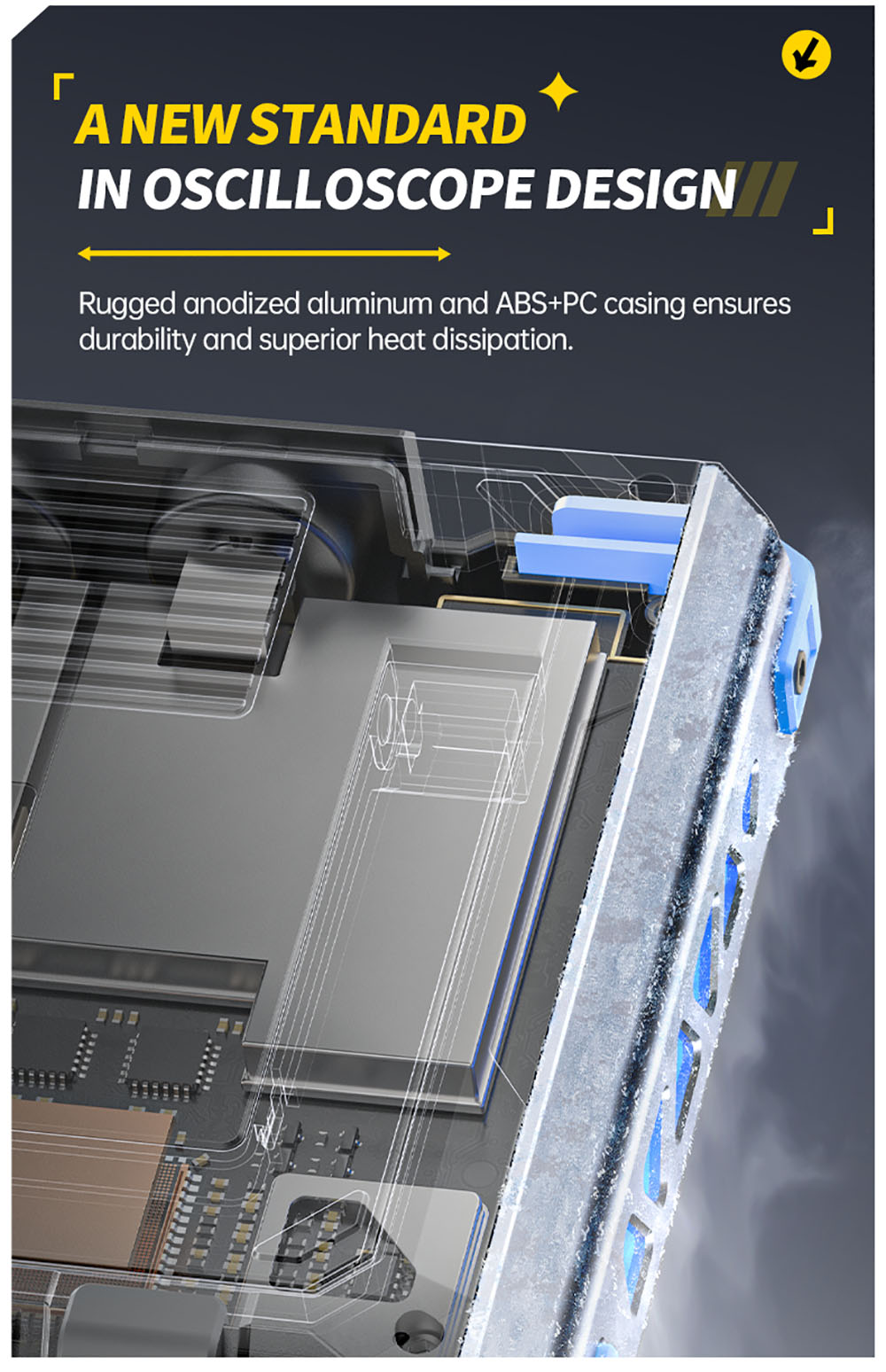

Heat dissipation: air cooling
Firmware upgrade: support .iso image upgrade

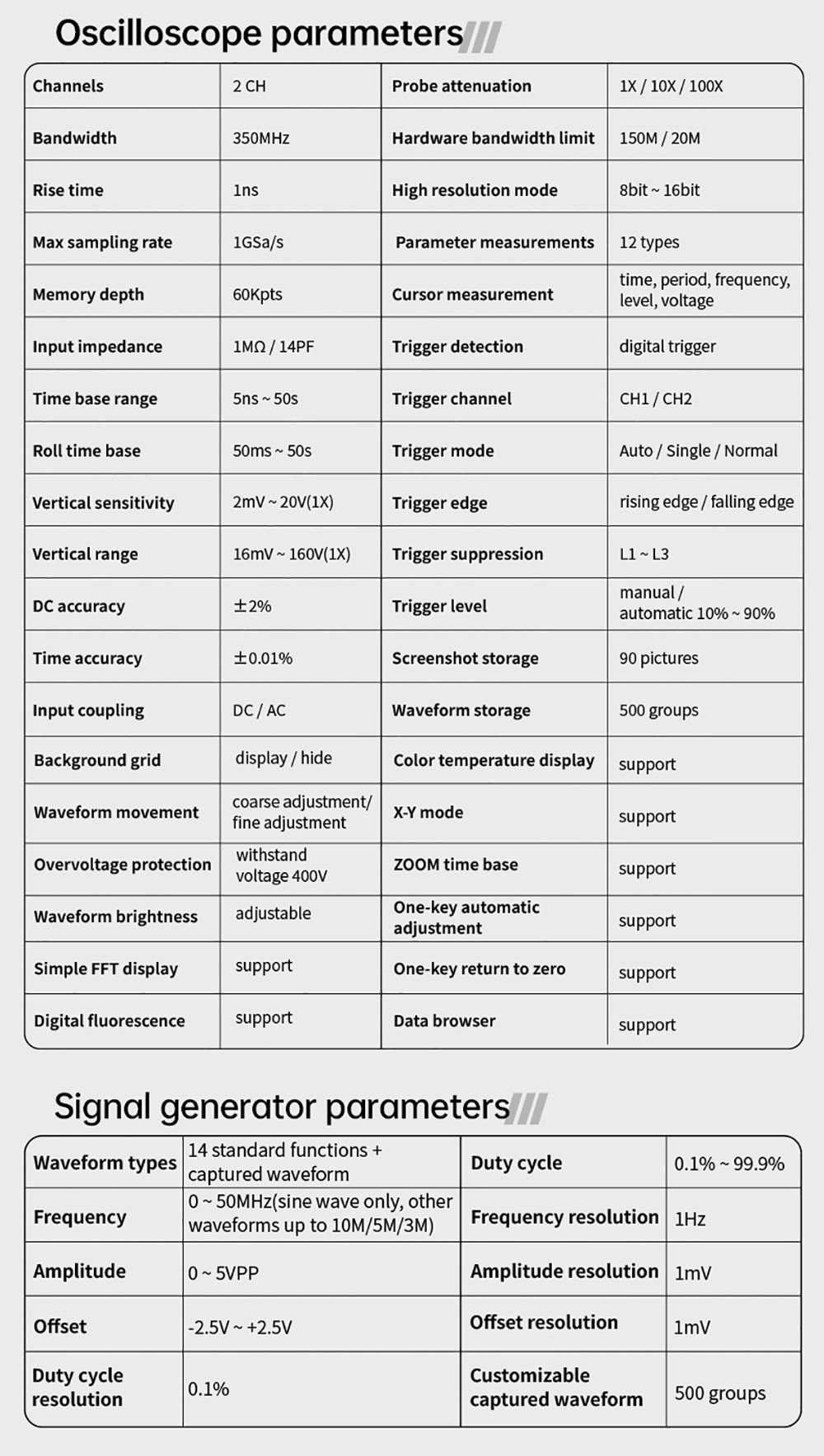

Oscilloscope Parameters:

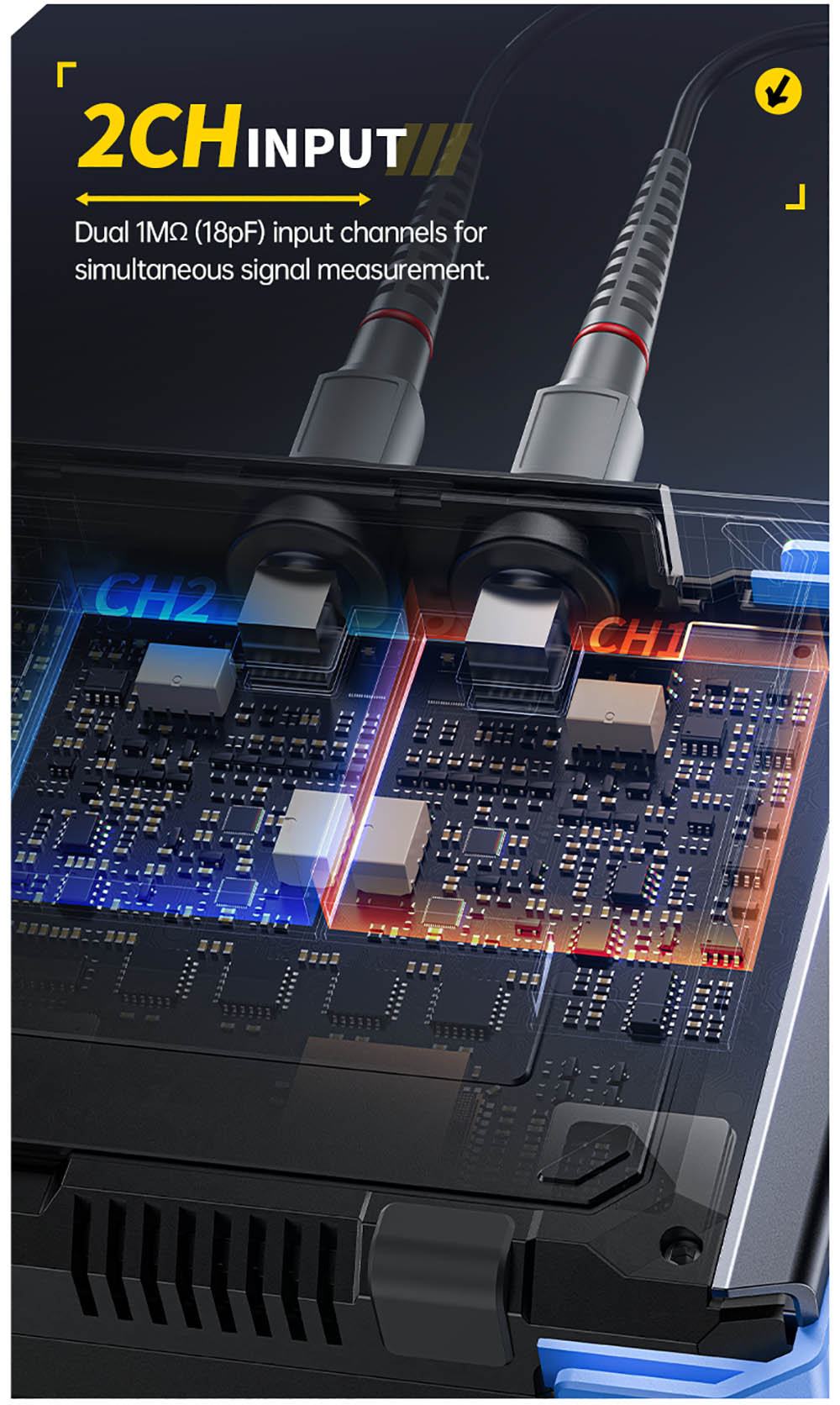

Analog Channels: 2
Analog bandwidth: 350MHz
Rise time: 1nS
Max sampling rate: 1GSPS
Memory depth: 60Kpts
Input impedance: 1MΩ / 14PF
Time base range: 5nS ~ 50S
Roll time base: 50mS ~ 50S

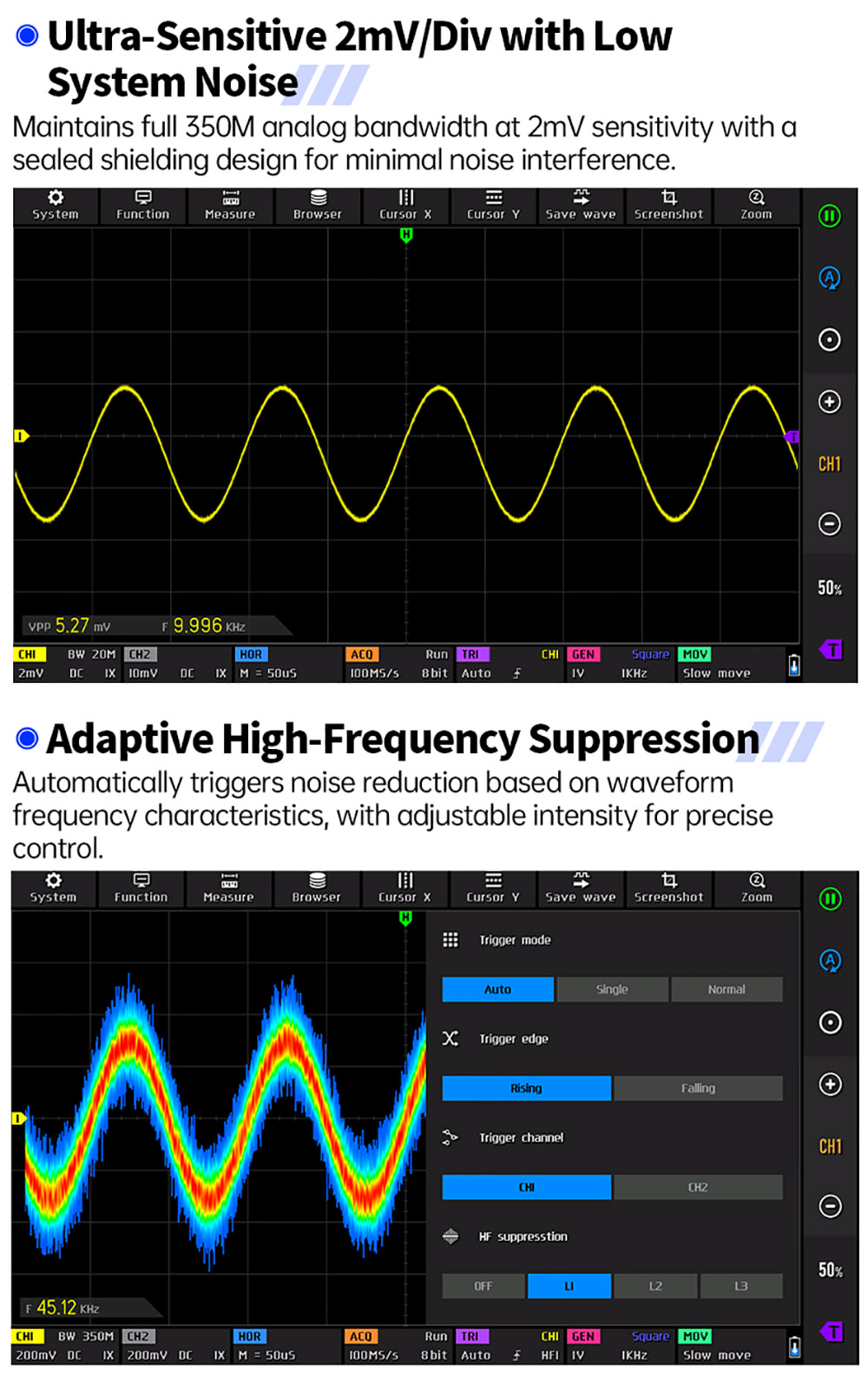

Vertical sensitivity: 2mV ~ 20V(IX)
Vertical range: 16mV ~ 160V(IX)
DC accuracy: ±2%
Time accuracy: ±0.01%
Input coupling: DC / AC
Probe attenuation: 1X / 10X / 100X
Hardware bandwidth limit: 150M / 20M

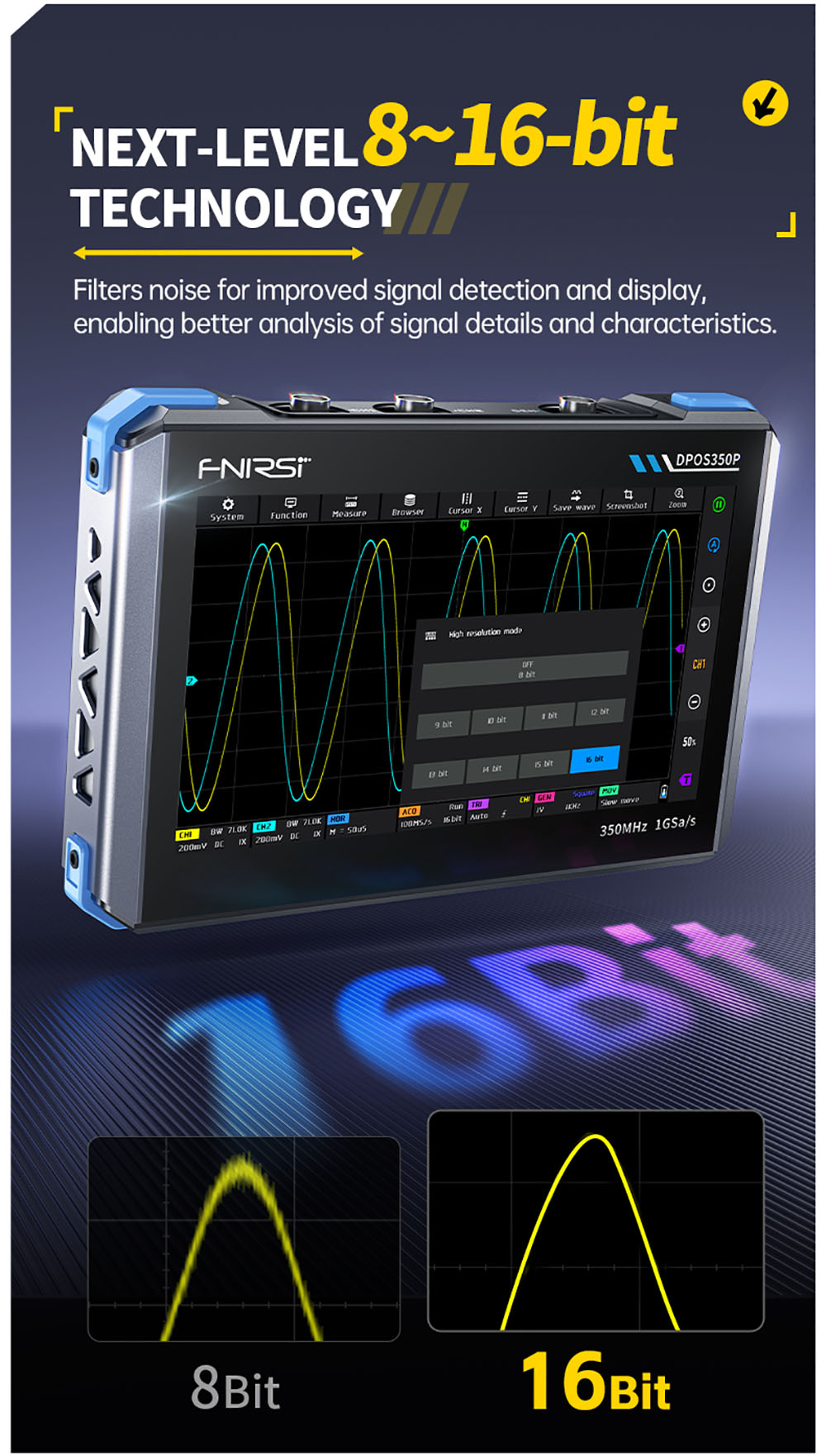

High resolution mode: 8bit ~ 16bit
Parameter measurements: 12 types

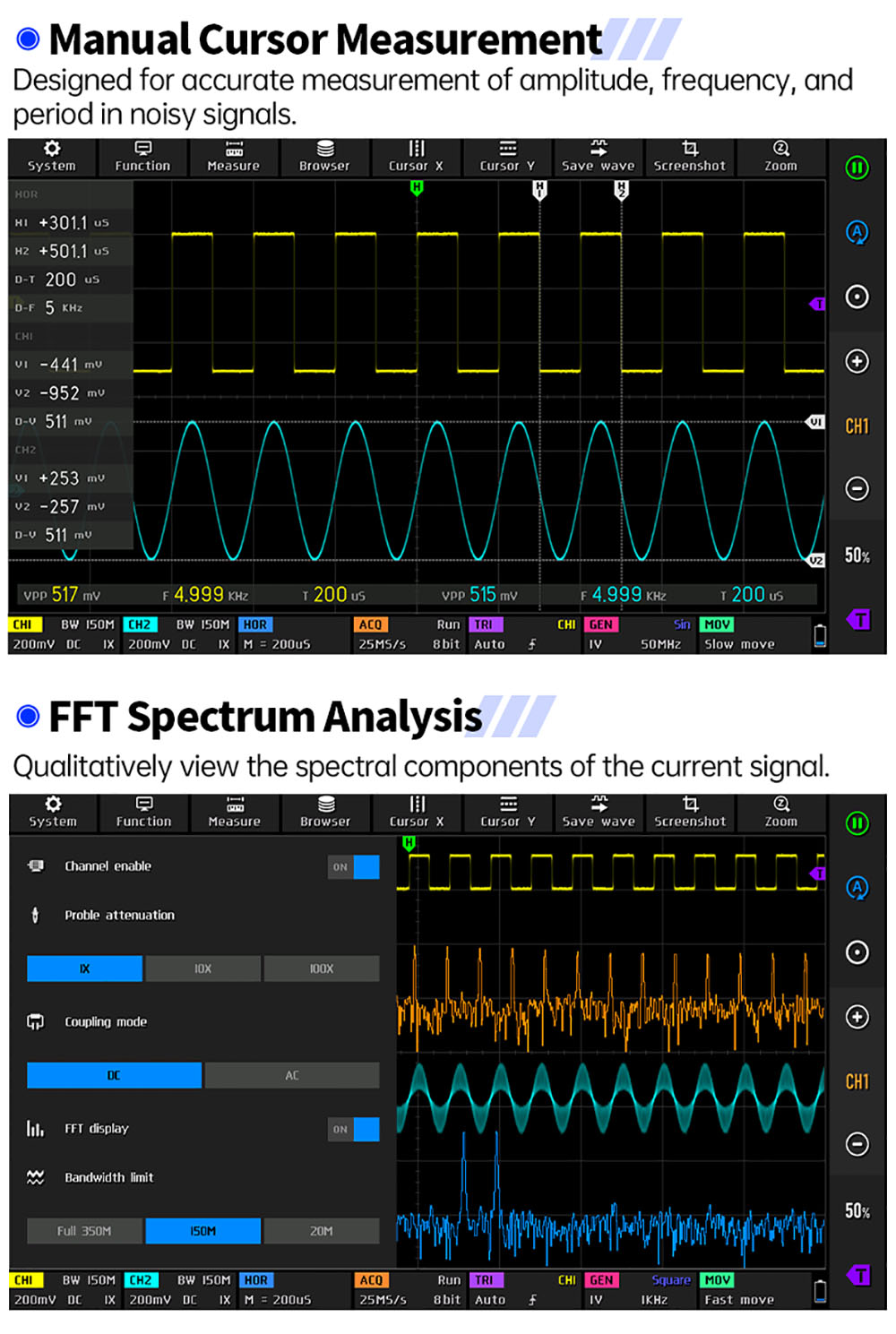

Cursor measurement: time, period, frequency, level, voltage

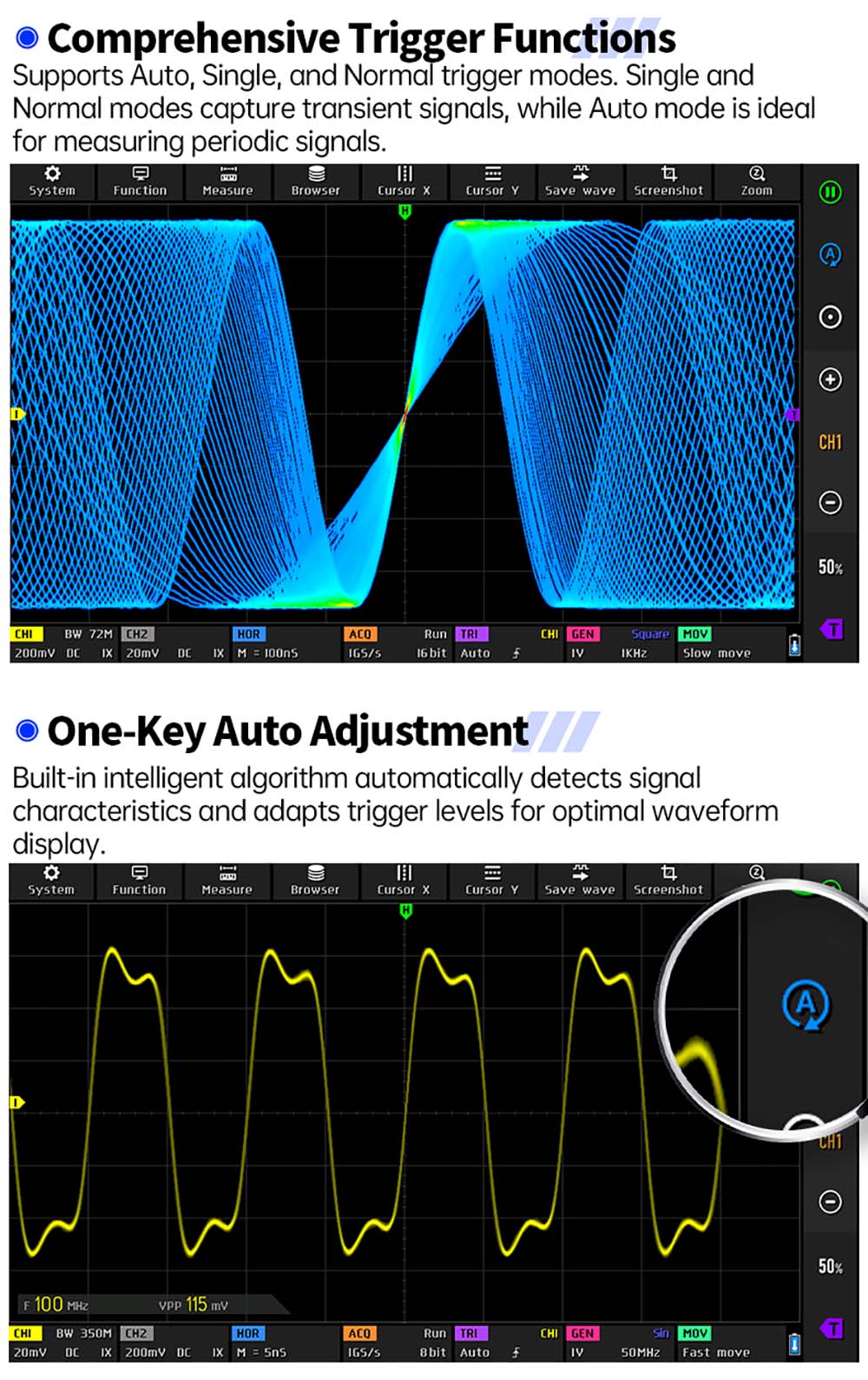

Trigger detection: digital trigger
Trigger channel: CH1 / CH2
Trigger mode: Auto / Single / Normal
Trigger edge: rising edge / falling edge
Trigger suppression: L1 ~ L3
Trigger level: manual/automatic 10% ~ 90%
Screenshot storage: 90 pictures
Waveform storage: 500 groups
Background grid: display/hide
Waveform movement: coarse adjustment / fine adjustment
Overvoltage protection: withstand voltage 400V
Waveform brightness: adjustable
Simple FFT display: support
Digital fluorescence: support
Color temperature display: support

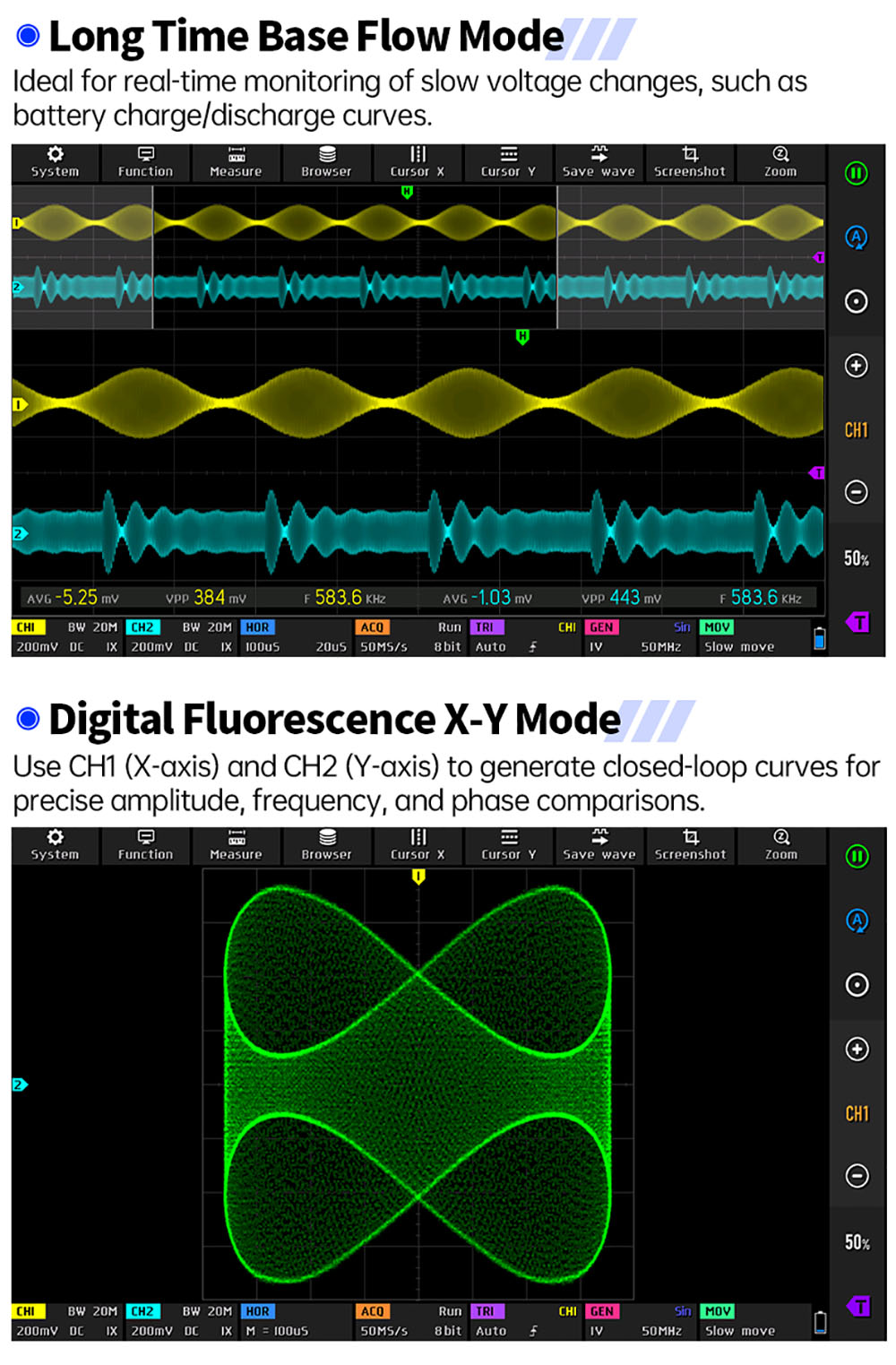

X-Y mode: support
ZOOM time base: support
One-key automatic adjustment: support
One-key return to zero: support
Data browser: support
Signal Generator Parameters:
Waveform types: 14 standard functions + captured waveform
Frequency: 0 ~ 50MHz(sine wave only, other waveforms up to 10M/5M/3M)
Amplitude: 0 ~ 5VPP
Offset: -2.5V ~ +2.5V
Duty cycle: 0.1% ~ 99.9%
Frequency resolution: 1Hz
Amplitude resolution: 1mV
Offset resolution: 1mV
Duty cycle resolution: 0.1%
Customizable captured waveform: 500 groups

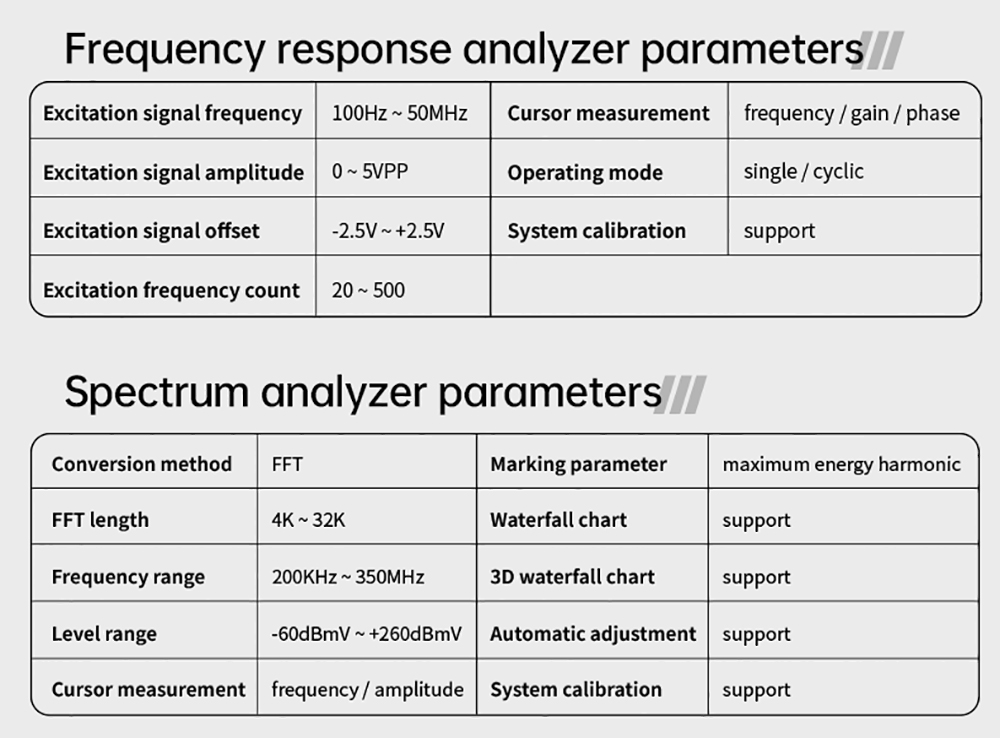

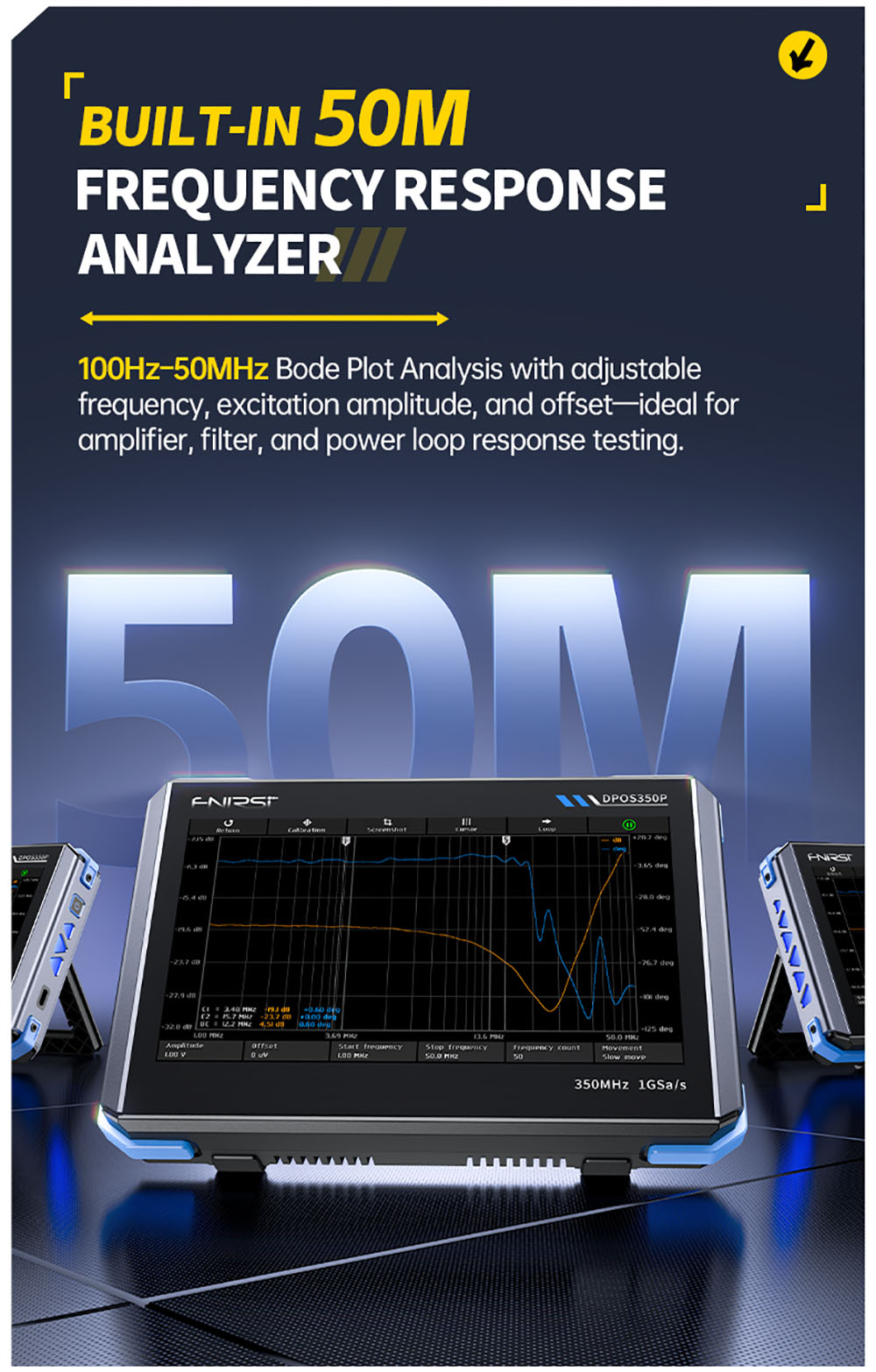

Frequency Response Analyzer:
Excitation signal frequency: 100Hz ~ 50MHz
Excitation signal amplitude: 0 ~ 5VPP
Excitation signal offset: -2.5V ~ +2.5V
Excitation frequency count: 20 ~ 500
Cursor measurement: frequency / gain / phase
Operating mode: single / cyclic
System calibration: support

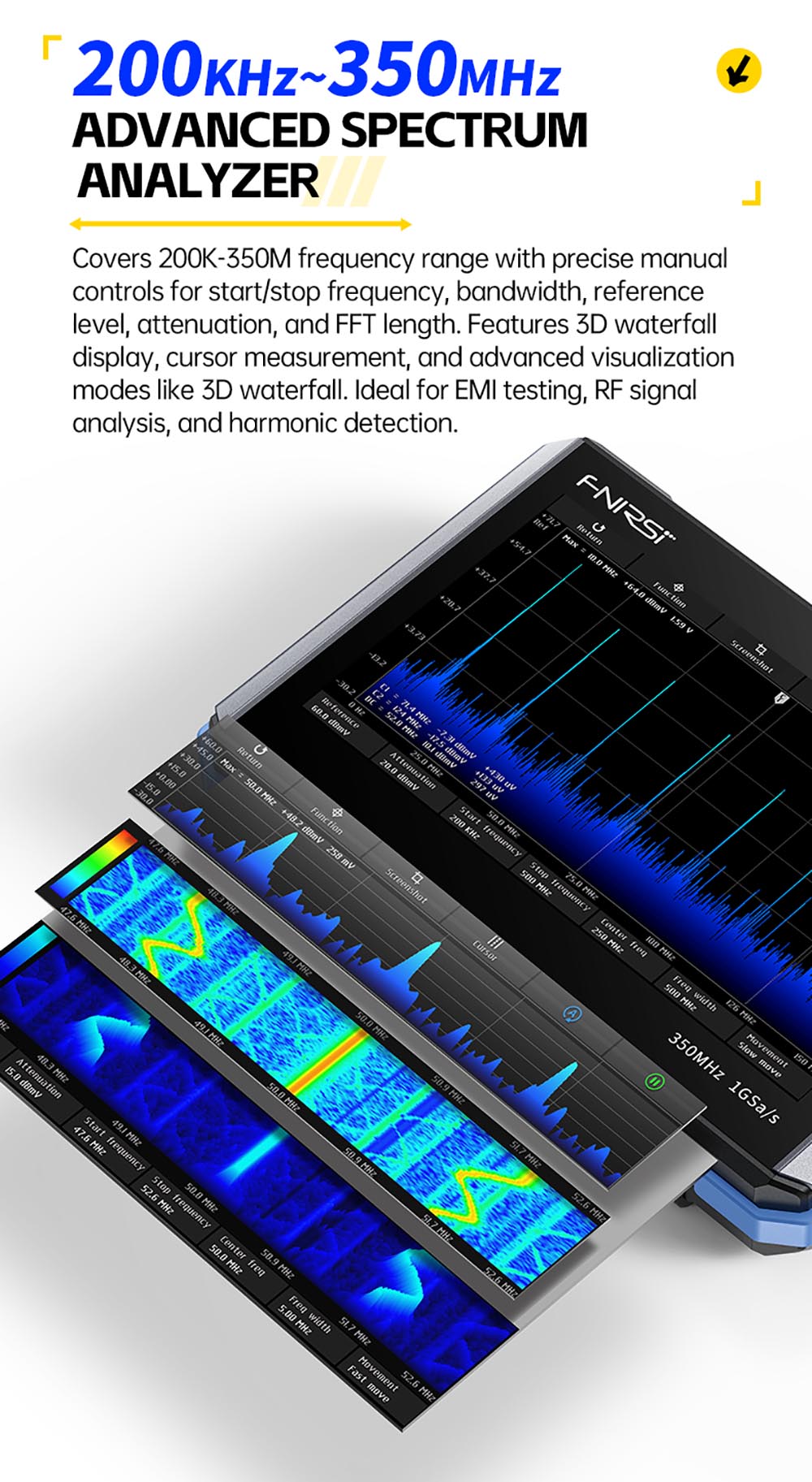

Spectrum Analyzer Part:
Conversion method: FFT
FFT length: 4K ~ 32K
Frequency range: 200KHz ~ 350MHz
Level range: -60dBmV ~ +260dBmV
Cursor measurement: frequency / amplitude
Marking parameter: maximum energy harmonic
Waterfall chart: support
3D waterfall chart: support
Automatic adjustment: support
System calibration: support
|
| Weight & Size |
Product Weight: 0.755kg
Package Weight: 1.259kg
Package Size(L x W x H): 23.5x10.3x10.3cm |

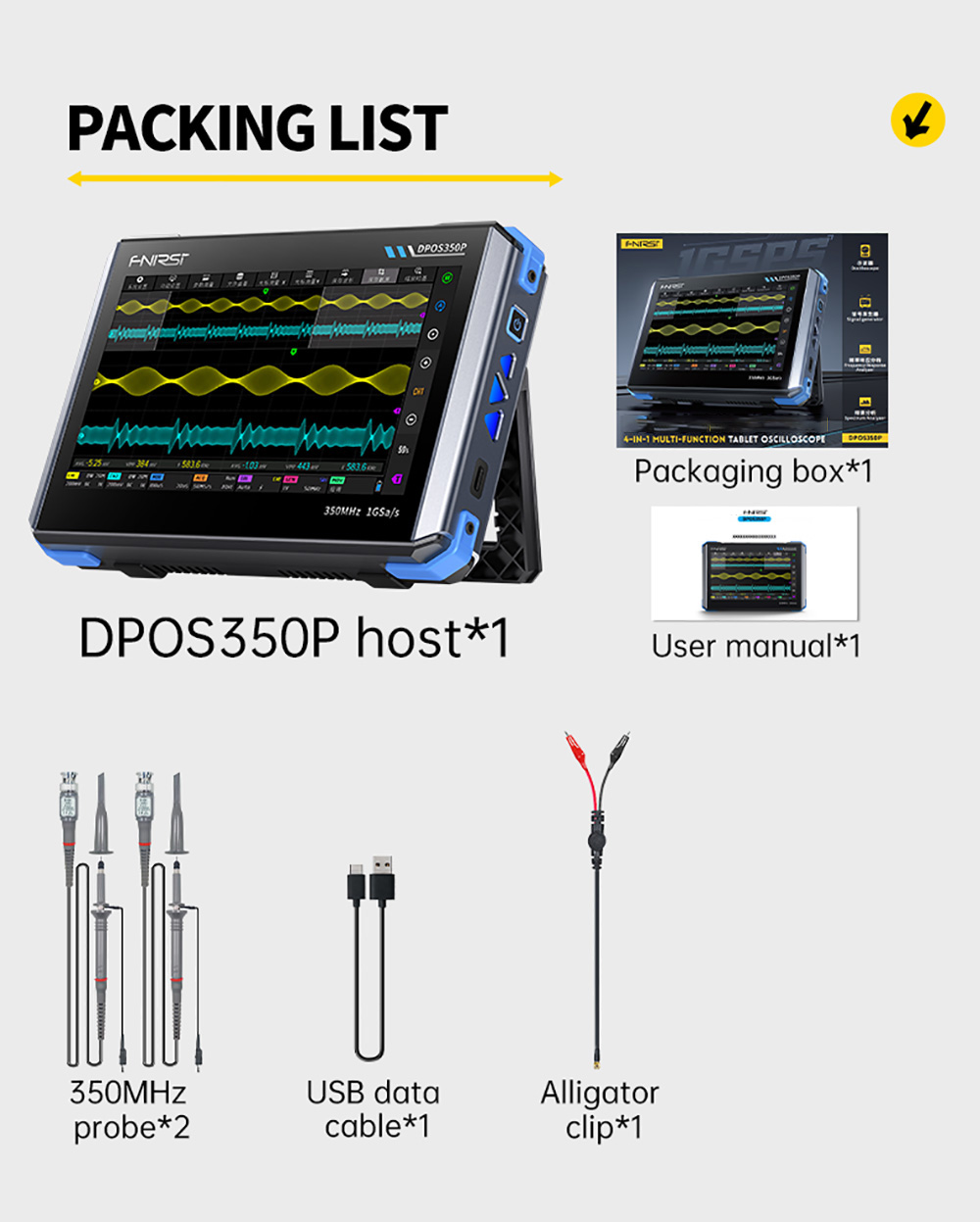

| Package Contents |
1 x Tablet Oscilloscope
2 x 350MHz Probe
1 x USB Data Cable
1 x Alligator Clip
1 x QC18W Fast Charger
1 x User Manual |
