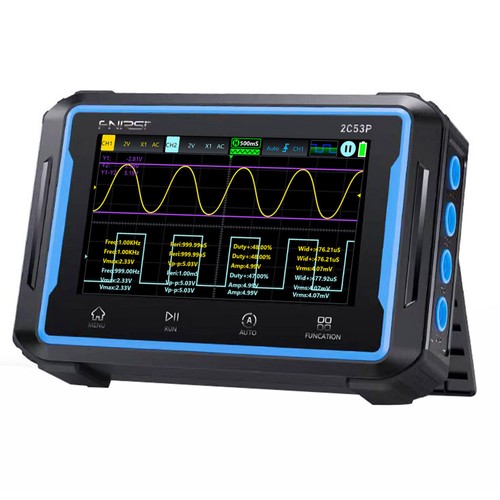

FNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - Blue

Brand: FNIRSI Item Code:524553
G-coin
Get Now
G-coin
Ship from:
QTY:
Shipping:
Add to Cart Buy Now
6
Payment:
Price Match
Bulk Order Rebate
Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

1. FNIRSI-2C53P is a 3-in-1 dual-channel model launched by FNIRSI with comprehensive functions and high practicality, targeting people in the maintenance and R&D industries.

2. This device has three major functions: oscilloscope, multimeter, and signal generator. The oscilloscope adopts FPGA+MCU+ADC hardware architecture, it has a sampling rate of 250MS/s, an analog bandwidth of 50Mhz, a built-in high-voltage protection module, and a maximum peak voltage measurement of ±400V; it supports waveform screenshots, save and view to facilitate secondary analysis.

3. The multimeter function is 4 and a half digits and 19999 points of true RMS, supporting AC and DC voltage and current measurements, capacitance, and resistance, with measuring functions such as a diode, continuity, temperature, etc., it is an ideal multi-functional instrument used by professionals, factories, schools, enthusiasts, or families.

4. Inside set up a DDS function signal generator, which can output 12 kinds of function signals. The maximum output of the signal generator is 10MHz, with a step of 1Hz; output frequency, amplitude, and duty cycle are adjustable. It uses a 4.3 inches 480*272 resolution touch display and a built-in 4000mAh rechargeable lithium battery with a standby time of up to 4 hours. With small size provides users with more and stronger practical functions and good portability.

FNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - BlueFNIRSI 2C53P Portable Digital Oscilloscope Multimeter, Signal Generator, 4.3inch IPS Touch Screen, 3 in 1 2 Channel 50MHz, 250Ms/S, 19999 Counts - Blue

Specification

General Brand: FNIRSI
Type: Digital Oscilloscope Multimeter
Model: 2C53P
Color: Blue
Specification Oscilloscope:
Channels: Dual-channel
Analog Bandwidth: 50MHz
Real-time Sample Rate: 250MSa/s
Storage Depth: Up to 64kByte
Input Impedance: 1MΩ
Time Base Range: 10ns/div - 10s/div
Vertical Sensitivity: 10mv/div - 10v/div
Vertical Resolution: 8 bits
Maximum Measured Voltage: ±400V
Probe: 1x/10x
Storage Space: 13
Bandwidth Limit: Supports 20MHz limit
Trigger Mode: AUTO/Normal/Single
Trigger Type: Rising edge, Falling edge
Trigger Level Range: 8 cells (positive/negative)
Waveform Display Mode: XY/YT/Scroll
Coupling Method: AC/DC
Measured Data: Period, frequency, peak-to-peak value, maximum value, minimum value, average value, effective value, amplitude, duty cycle, pulse width
Mathematical Calculations: 1+2, 1-2, 1*2, 1/2, -1, -2, |1|, |2|, FFT
Save Waveform Screenshot: Yes
Export Waveform Images from Computer: Yes

Multimeter:
DC Voltage: 1.9999V/19.999V/199.99V/1000.0V
AC Voltage: 1.9999V/19.999V/199.99V/750.0V
DC Current: 19.999mA/199.99mA/1.9999A/9.999A
AC Current: 19.999mA/199.99mA/1.9999A/9.999A
Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF
Temperature: (-55-1300°C)/(-67-2372℉)
Diode Test: Yes
Continuity Test: Yes

Signal Generator:
Channels: Single-channel
Frequency: 0-10MHz (Sine wave: 10MHz, other waveforms 5MHz)
Amplitude: 0.1V-3.0V
Square Wave Duty Cycle: 0-100%
Signal Type: Sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse

Weight & Size Product Weight: 0.3635kg
Package Weight: 0.7327kg
Package Size(L x W x H): 23.2x13.8x7cm
Package Contents 1 x Digital Oscilloscope Multimeter
1 x Alligator Clip Probe
2 x P6100
1 x Multimeter Probe
1 x Data Cable
1 x User Manual
