BeagleBone BB Black (Package E) Development Kit MISC CAPE + DS18B20 + Camera Various Expansion Board

Highlights

• BeagleBone Black is an MSRP community-supported development platform for developers and hobbyists. Boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable.

Specification

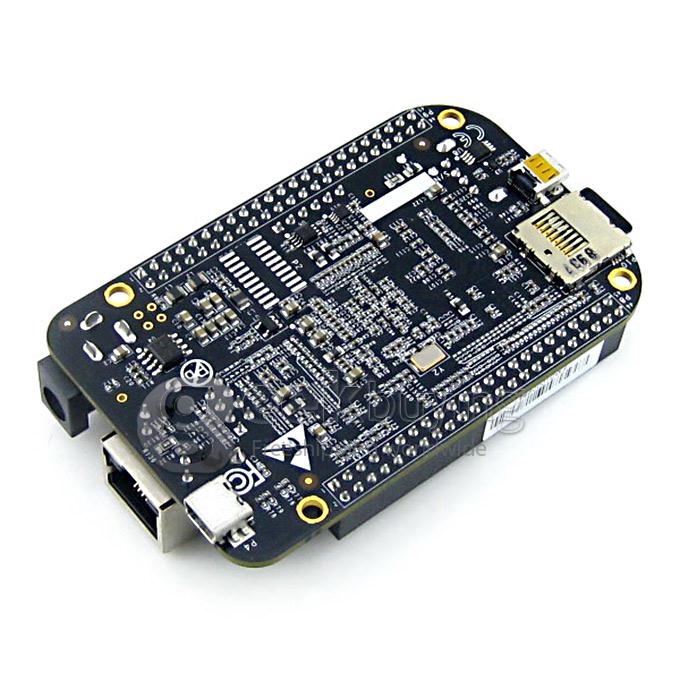

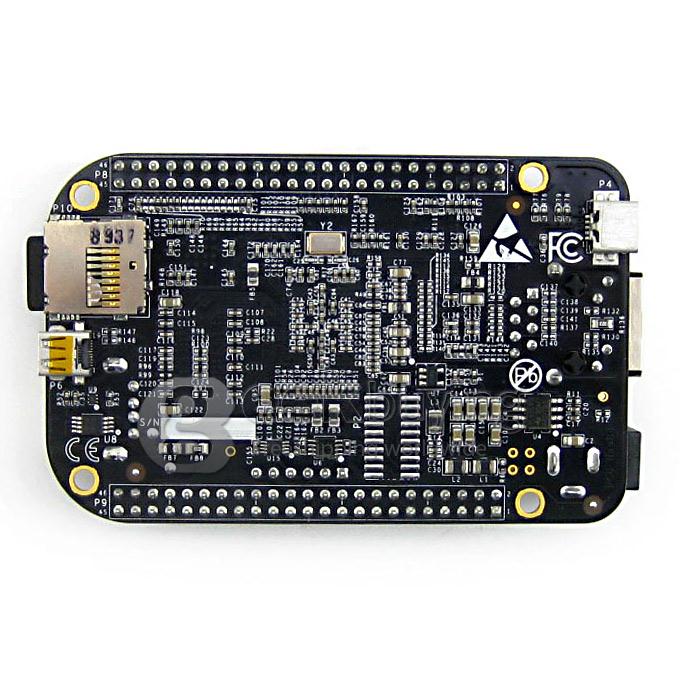

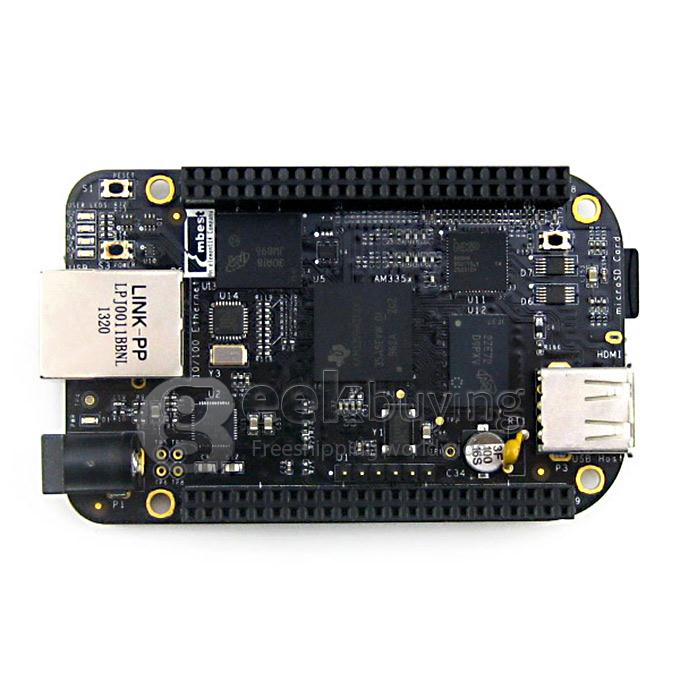

BB Black

• Processor: TI Sitara AM335x, 1GHz, 2000 MIPS
  • 1 GHz ARM® Cortex™-A8
  • SGX530 Graphics Engine
  • Programmable Real-Time Unit Subsystem
• Memory
  • SDRAM: 512MB DDR3L 800MHZ
  • eMMC Flash:
    • Rev B: 2GB (discontinued)
    • Rev C: 4GB (as of 2014.05.21)
• SD/MMC Connector for microSD
• Power management: TPS65217C PMIC is used along with a separate LDO to provide power to the system
• Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
• Power Source
  • miniUSB USB or DC Jack
  • 5VDC External Via Expansion Header
• Connectivity
  • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
  • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS
  • Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated
  • 10/100M Ethernet (RJ45)
• User Input / Output
  • Reset Button
  • Boot Button
  • Power Button
  • LED power indicator
  • 4 user configurable LEDs
• Video/Audio Interfaces
  • HDMI D type interface
  • LCD interface
  • Stereo audio over HDMI interface
• Expansion Interfaces
  • LCD,  UART, eMMC
  • ADC, I2C, SPI, PWM
• Operating Power: 5V@0.35A
• Board Size: 3.4” x 2.1”

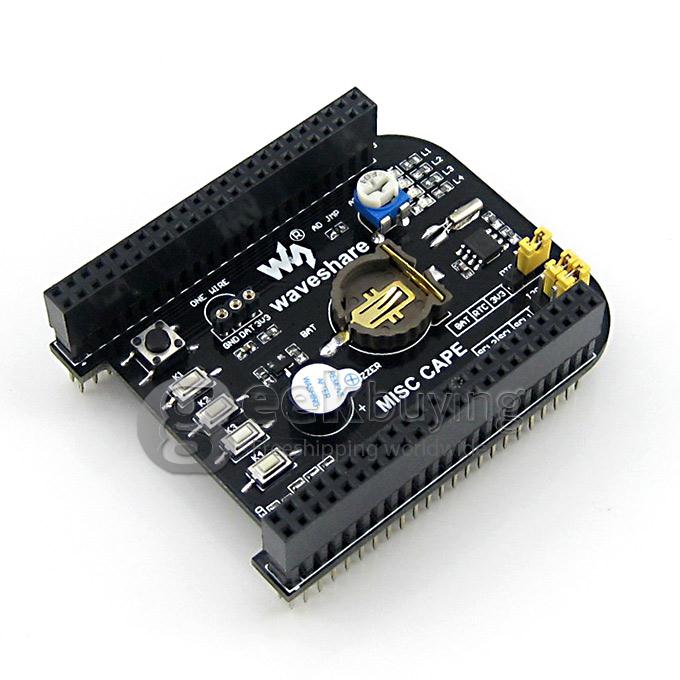

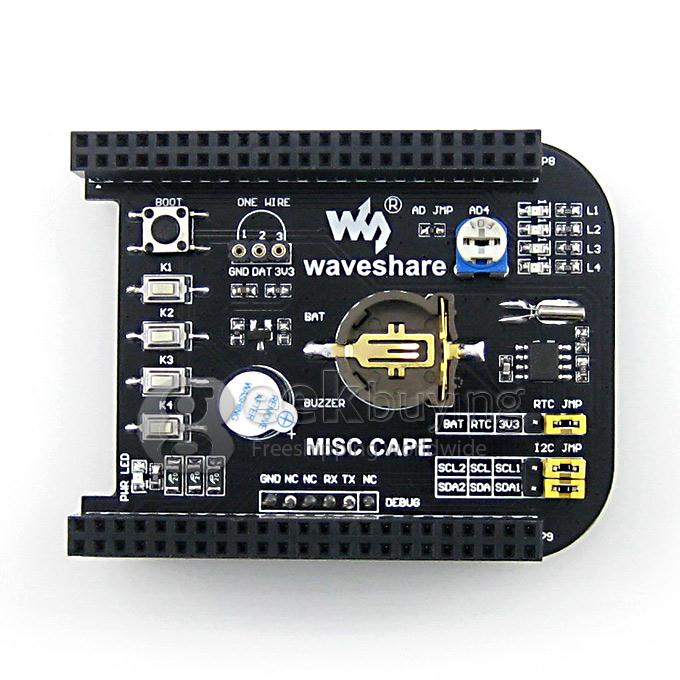

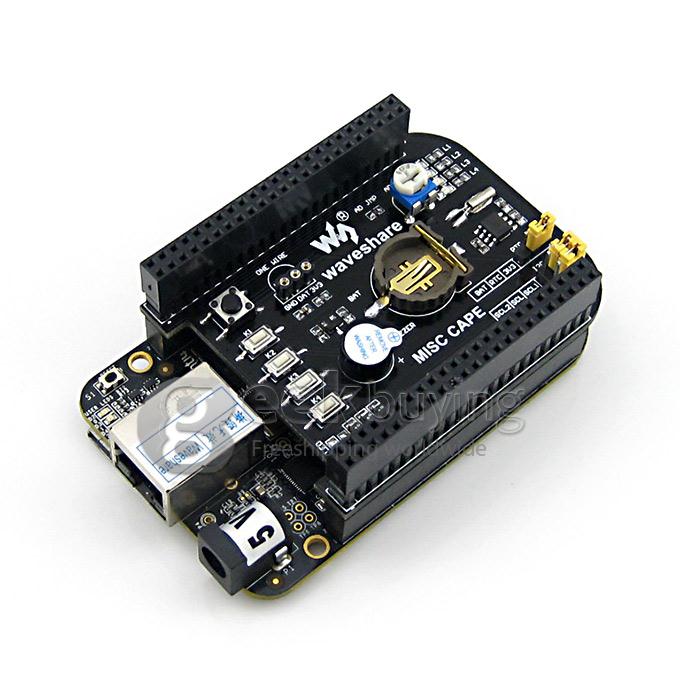

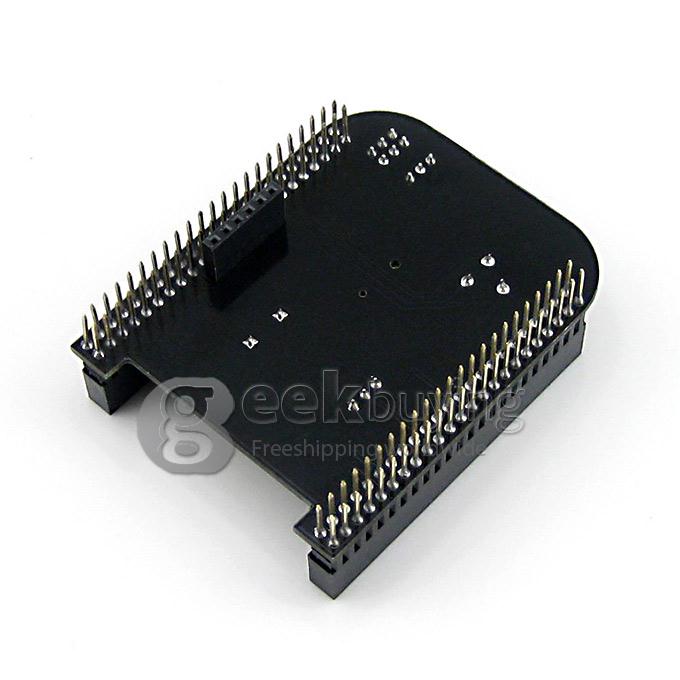

MISC CAPE

• BB_BLACK connector : for connecting BB Black
• DEBUG interface : BB Black debug interface, for connecting serial modules
• ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
• BOOT selection button : Boot from TF card
• User button : 4 buttons
• Buzzer
• Power indicator
• User LED : 4 LEDs
• Potentiometer : AD adjustable potentiometer
• 32.768KHz crystal : for RTC
• PCF8563 : RTC
• RTC battery holder : for 3.3V battery
• RTC power selection jumper
• RTC I2C selection jumper: select I2C1 OR I2C2

Examples

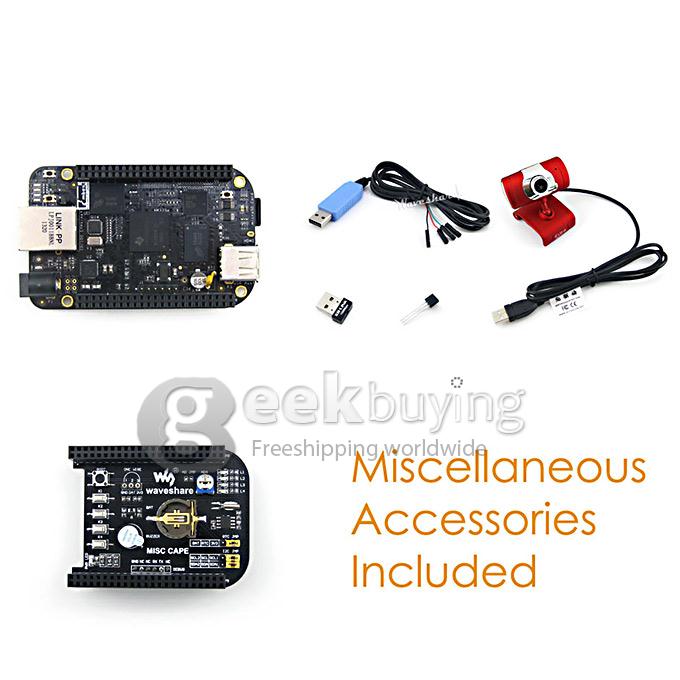

What's in the box?

• 1 x BB Black x 1
• 1 x MISC CAPE

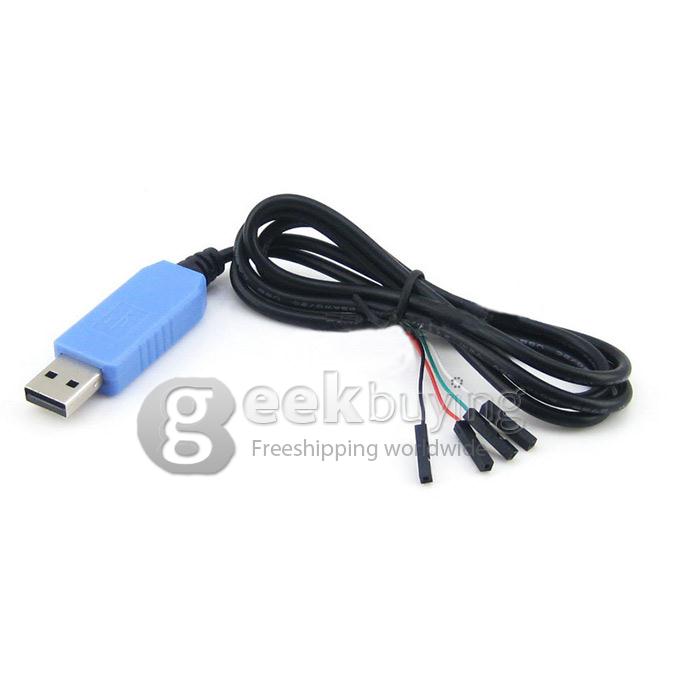

• 1 x USB to TTL 4-pin Wire
• 1 x DS18B20

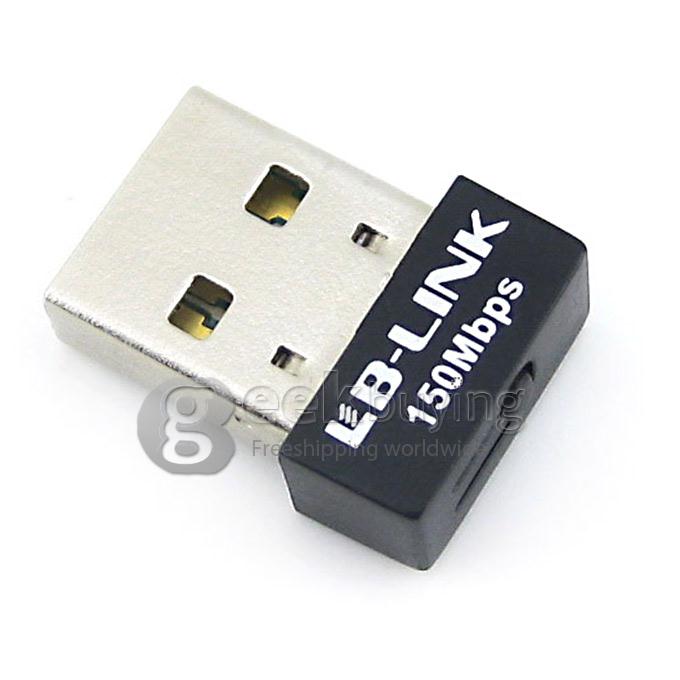

• 1 x USB WIFI BL-150UM RTL8188

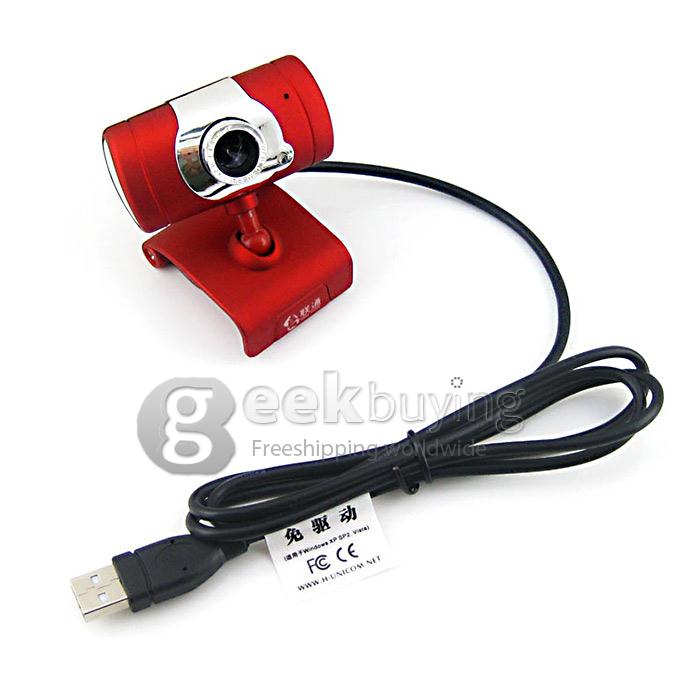

• 1 x USB Camera 0307
• 1 x Power Adapter US Standard 5V 2A 5.5/2.1mm

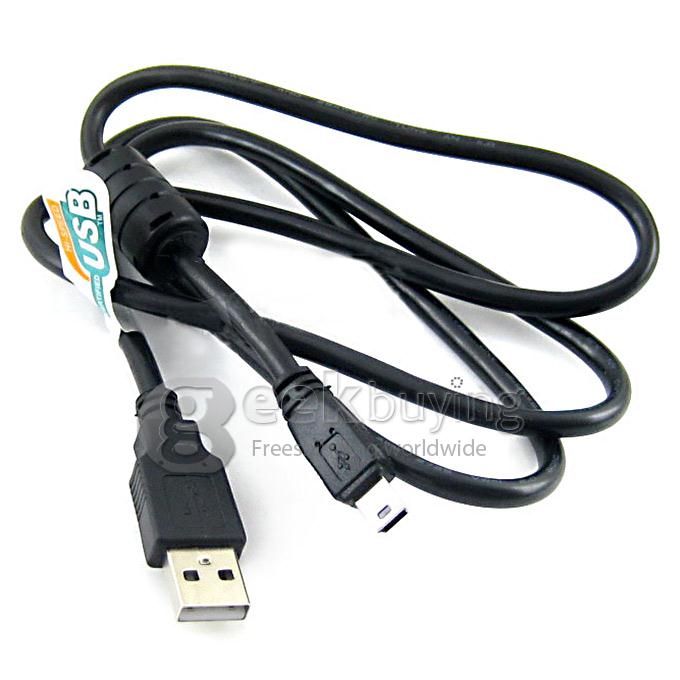

• 1 x USB type A plug to mini-B plug cable
