Aufero Laser 2 LU2-4 LF Laser Engraving Machine, 32Bit Motherboard, Optically Compressed Laser, 10,000mm/min, 24V/2A, High Precision

Brand: Aufero
Type:  Laser Engraving Machine
Model: Aufero Laser 2 LU2-4-LF
Color: Silver

Motherboard: OLM-PRO-V1.2 Motherboard, with 32Bits ESP32MCU
Firmware: V1.80 series Firmware
Safety Precautions:   1. Active Position Protection

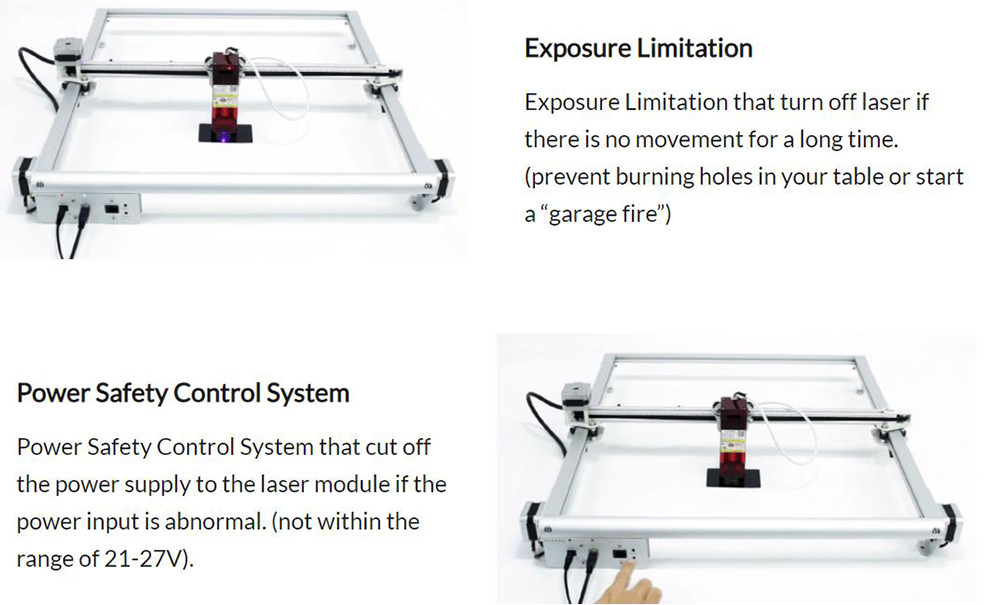

                                  2. Exposure Duration Detection and Limitation
                                  3. Laser Beam Safety Guard
                                  4. 24V Power Delivery System
                                  5. Power control system, if shut down the machine, it would cut the power

Add-ons:    1. Aufero Control Box (Offline Controller)
                  2. Adjustable Z-axis Lifting a
                  3. YRR 2.0 Rotary Roller
                  4. Detachable Cover
Frame Materials:   Aluminum  + Acrylic
Motors:  NEMA 17 Stepper Motors
Mechanical Precision:  Y:12.5um X:12.5um
Pixel Accuracy:  Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)
Engraving Area:  390mm x 390mm
Available Laser Modules: (Luminous Power: 4,500-5,500mw)
Wave Length: 445±5nm
Focus: Fixed Focus
Default Focal Length: 50mm(from the heat sink to the object)
Control Mode: PWM
Power Rate: SO-S1.000
Engraving Speed:0-10,000MM/Min
Baud Rate: 115200-921600 (Default: 115200)
Computer OS: Win XP, Win 7, Win 8, Win 10 (LaserGRBL)
                     Mac and Linux (LightBurn)
Control Softwares: LaserGRBL (free), LightBurn (Paid Software)
Input Format: JPG, JPEG, PNG, BMP, SVG, etc.
Available Materials of Engraving: Leather,- Wood Board, Paperboard, Black Acrylic, Food, Stainless Steel, Power Coated, Metal. etc.
Available Materials of Cutting: Leather, Wood Board, Paperboard, Black Acrylic, Felt Cloth. Dark Color Plastic Sheet(Melt), etc.
Input Voltage: 10V-220V (Compatible).
Power Adapter Output: 24V/2A
Operating Temp: 0°C-65°C

1× LU2-4-LF Laser Module
1× Thumb Screw
1× Laser Shield
1× Focal Gauge
2× Screws + Nuts
1× Air Assist
1× Air Flow Requlator
1× Air Pipe
2× Set Screws
1×1.5mm Allen Wrench
1× Quick TwistAt Right Angle
1× PipeConnector
1× Y-axis Left Part
1× Y-axis Right Part
1× X-axis Upper Part
1× X-axis Front Part
1× X-axis Rear Part
1× Laser Wire
4× M5 Cap Nuts
4× M5x25mm Screws
4× M5x8mm Screws
4× ।M5 Spacers
4× Wrench
1× 3.0mm Allen Wrench
12× Cable Ties
1× Anodised Aluminum Plate for Adjusting Focus
1× Acrylic Plate for Testing
4× Wooden Plates for Testing
1× Power Adapter
1× USB Cable
1× Brush
1× Laser Goggles
1 x User Manual
