Highlights
- Standard electronic building blocks Interface
- Measurement range up to 25 VDC
- M2 screw mounting holes for easy installation

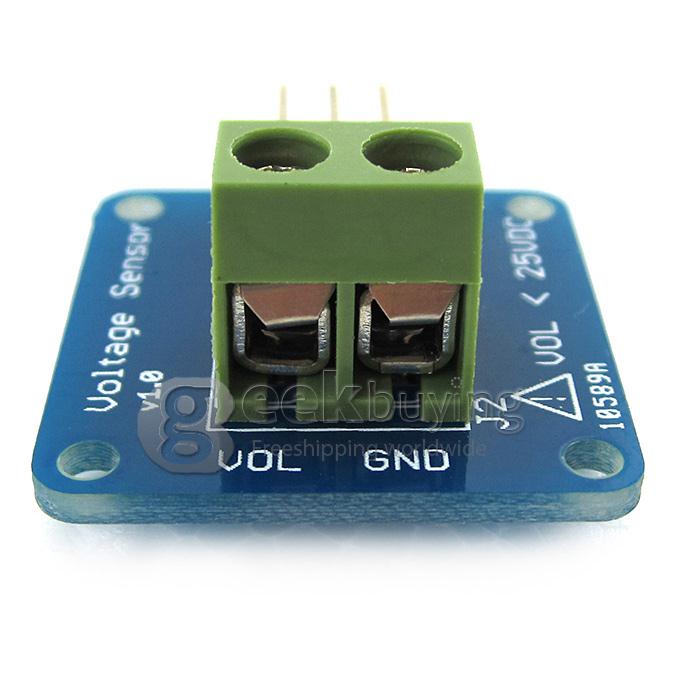

- The voltage detection module is based on the principle of the resistor divider. The measured voltage can be reduced, so that the ADC pin of arduino board can detect the voltage value after reduction, and the measured voltage can be calculated. As precision resistors,the precision of sampling resistor is up to 0.5%,temperature coefficient 50PPM,insuring the detection accuracy.
Specification
| General | |
|---|---|
| Quantity | 1 Piece |
| Specification | |
| Interface | Standard electronic building blocks Interface |
| Measurement Accuracy | <= 1% |
| Measurement Range | 25 VDC |
| M2 Screw Mounting Holes | 4 |
| Humidity Coefficient | 50PPM |
| Note | Range <= ADC reference voltage / 0.18 |
| Package Contents | |
| 1x Voltage Sensor Module | |
