Highlights
High Accuracy, High Speed

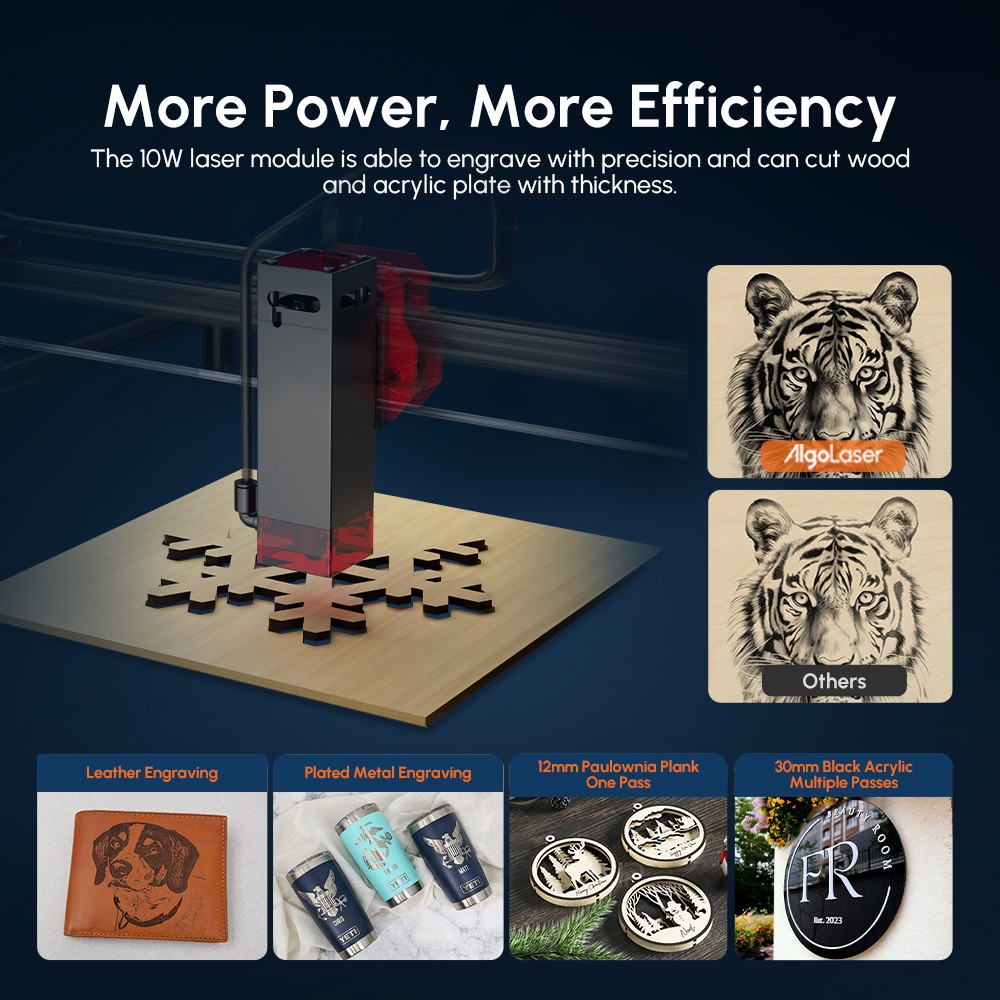

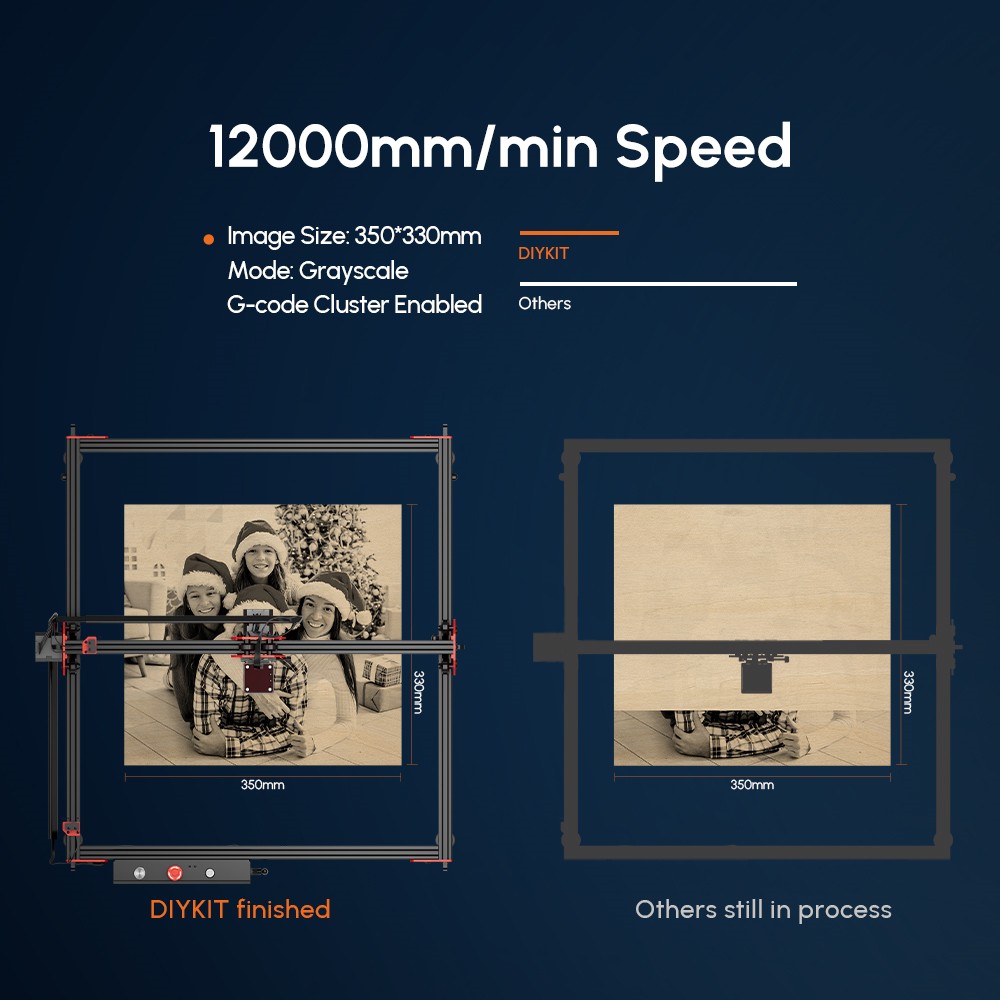

The 10W laser module has a laser spot (0.05mm*0.1mm) with ultra-fine lines, which will meet your requirement for details on your work. Up to 12000mm/min speed is fast enough to supplement your business orders.
Real Offline Control
The entry-level 10W DIY KIT laser engraver supports 2.4G WiFi and USB-C connections. For beginners, AlgoLaser App, LightBurn, and LaserGRBL software provide easy access to offline control and engraving.
Dual-core CPU
With 8 MB of RAM, 8 MB of storage, and built-in 32 GB high-speed storage, the speed of uploading and reading files gets faster.
Strong Compatibility
Safe and reliable high-power motherboard compatible with 10W laser module, which is convenient for upgrading laser engraver machine by replacing the module.
Multi-functional Motherboard
Thanks to the motherboard's screen structure, the machine can be controlled with an external smart screen. Besides, the Smart I/O interface can be linked to the external Smart HUB, promoting a smart air pump, smart protection box, and smart filter expansion to ensure joint control automation, is simple and user-friendly.

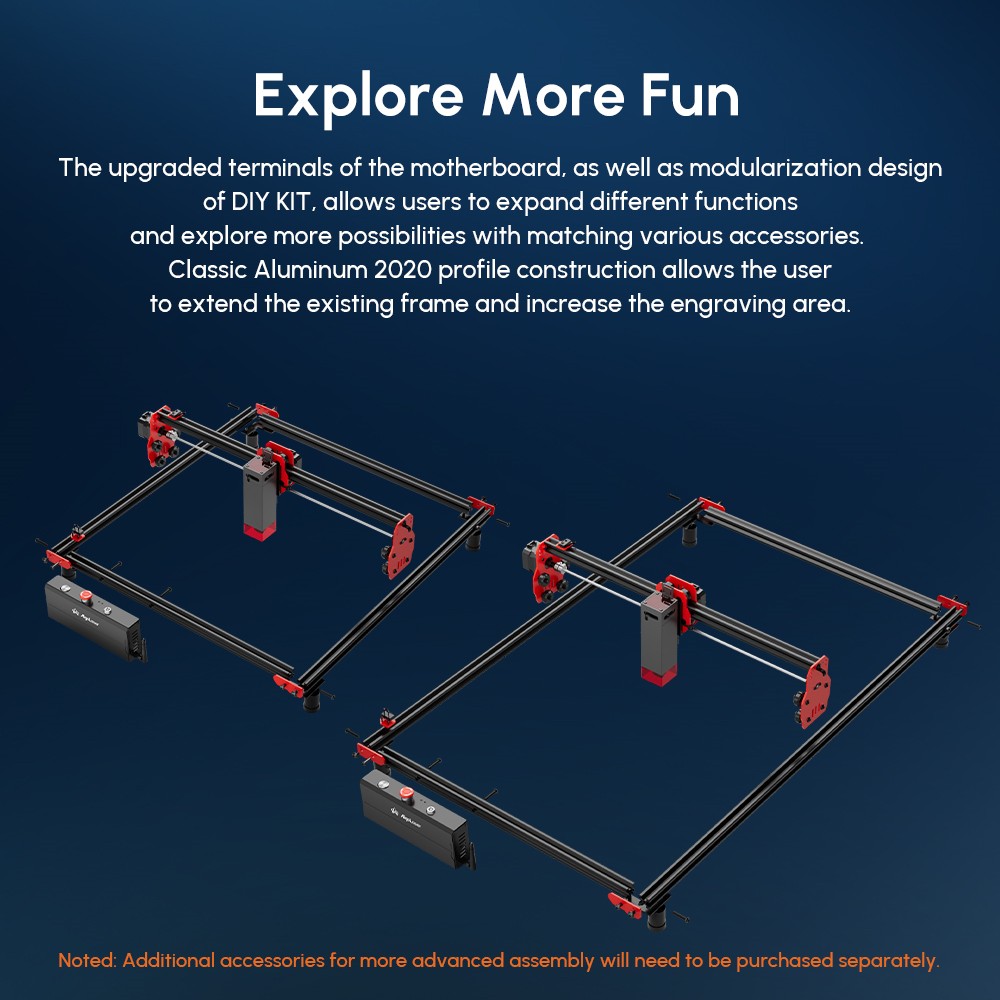

Explore More Fun

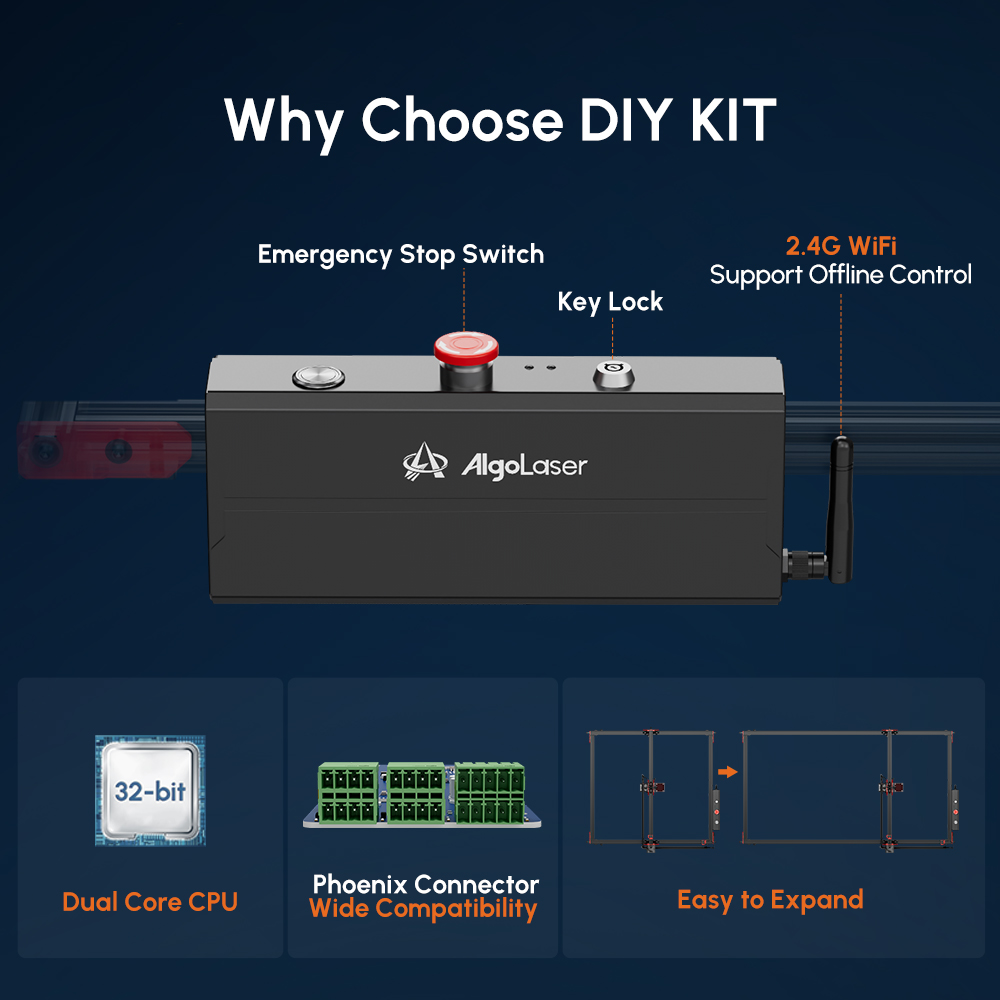

The upgraded terminals of the motherboard, as well as modularization design of DIY kit, allows users to expand different functions and explore more possibilities with matching various accessories. Classic Aluminum 2020 profile construction allows the user to extend the existing frame and increase the engraving area.

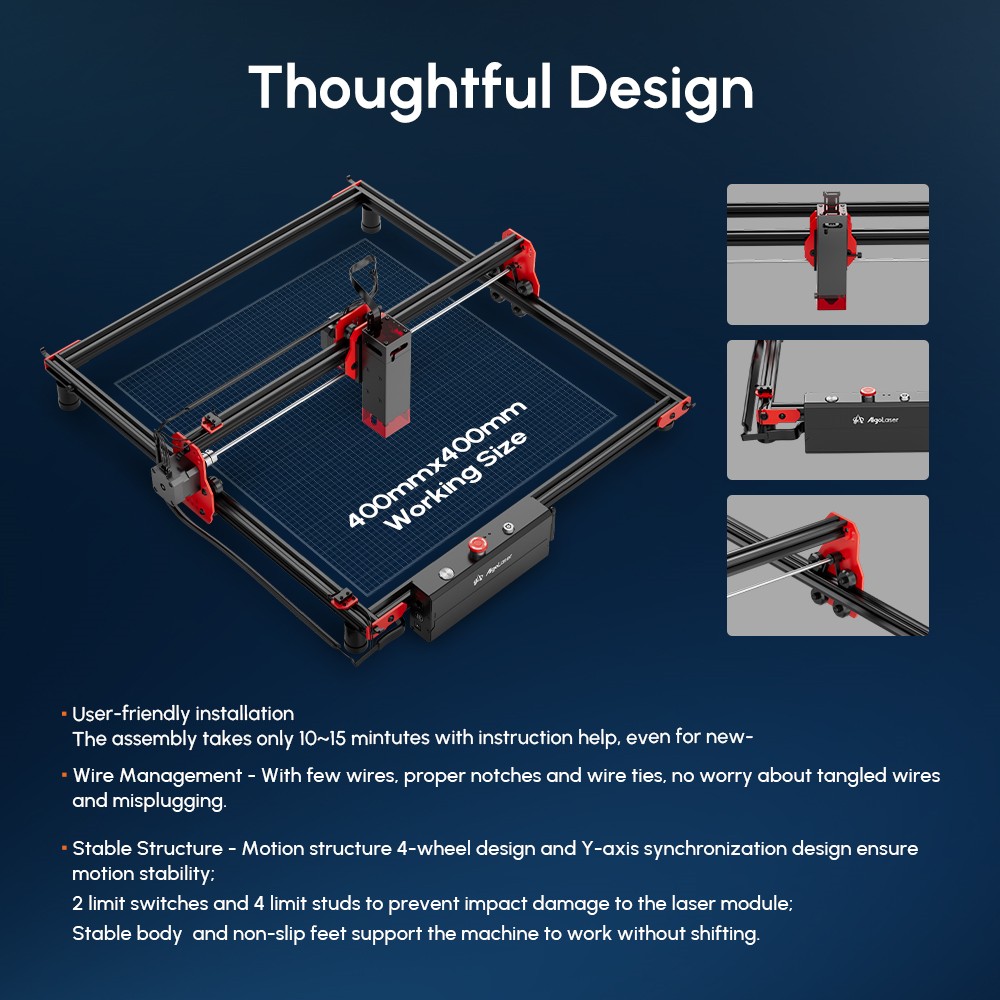

Thoughtful Design
· User-friendly installation - The assembly takes only 10~15 minutes with instruction help, even for newbies.
· Wire Management - With few wires, proper notches and wire ties, no worry about tangled wires and misplugging.

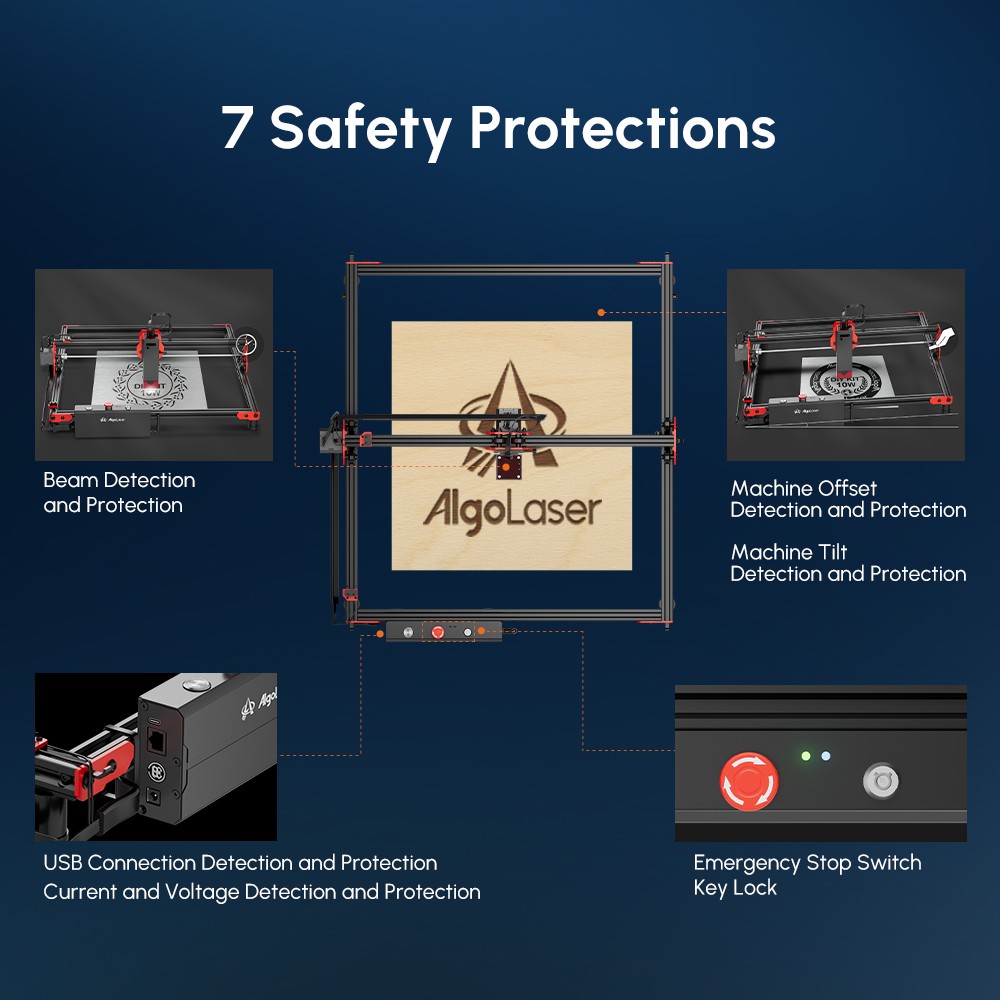

· Stable Structure - Motion structure 4-wheel design and Y-axis synchronization design ensure motion stability; 2 limit switches and 4 limit studs to prevent impact damage to the laser module; Stable body and non-slip feet support the machine to work without shifting.
Specification
| General | Brand: AlgoLaser Type: Laser Engraver Model: 10W Color: Black |
| Specification | Laser Power: 10W Working Space: 400mm*400mm Max. Working Speed: 12000mm/min Laser Source: Diode Laser Laser Spot: 0.05mm*0.1mm Laser Head Life: >10000 Hours Laser Wavelength: 455±5nm Support File: jpg, svg, png, bmp, G code, dwg Support Systems: Android / iOS / iPad / Windows / macOS Software: AlgoLaser APP / Lightburn / LaserGRBL Input Voltage: 100-240~50/60Hz Output Voltage: 24V 4A (6A Max) |
| Weight & Size | Product Weight: 4.834kg Package Weight: 5.0395kg Package Size(L x W x H): 64.5cm*23cm*14cm |

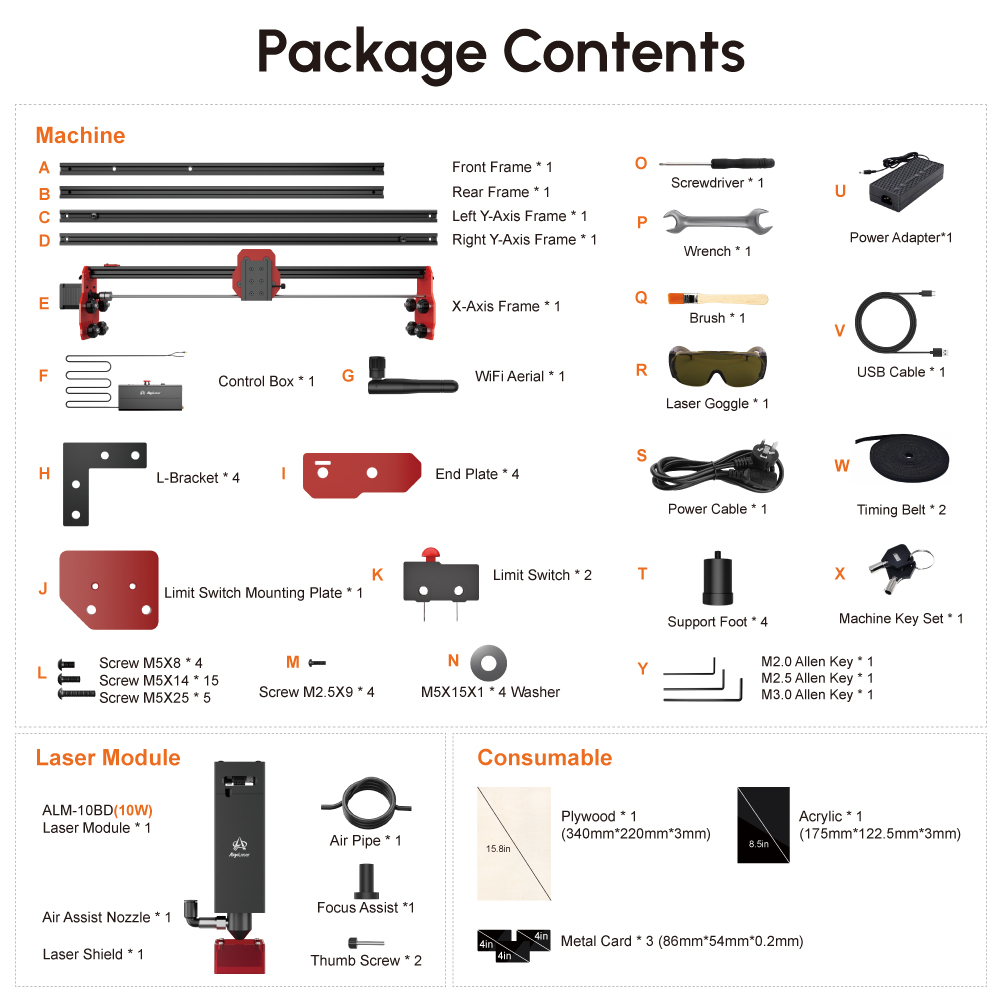

| Package Contents | 1 x Front Frame 1 x Rear Frame 1 x Left Y-Axis Frame 1 x Right Y-Axis Frame 1 x X-Axis Frame 1 x Screwdriver 1 x Wrench 1 x Brush 4 x Support Foot 2 x Timing Belt 1 x Control Box 1 x WiFi Aerial 1 x Laser Goggle 4 x L-Bracket 4 x End Plate 1 x Limit Switch Mounting Plate 2 x Limit Switch 4 x Screw M5X8 15 x Screw M5X14 5 x Screw M5X25 4 x Screw M2.5X9 4 x M5X15X1 Washer 1 x Power Adapter 1 x USB Cable 1 x Machine Key Set 1 x M2.0 Allen Key 1 x M2.5 Allen Key 1 x M3.0 Allen Key 1 x ALM-10BD(10W) Laser Module 1 x Air Pipe 1 x Air Assist Nozzle 1 x Laser Shield 1 x Focus Assist 2 x Thumb Screw 1 x Plywood (340mm*220mm*3mm) 3 x Metal Card (86mm*54mm*0.2mm) 1 x Acrylic (175mm*122.5mm*3mm) 1 x User Manual |
Videos
Customer Photos
Customer Videos
Customer Reviews
| 5 star | 0 | |
| 4 star | 0 | |
| 3 star | 0 | |
| 2 star | 0 | |
| 1 star | 0 |
- All (0)
- Images (0)
- Videos (0)
Questions & Answers
FAQ
How many hours can DIY KIT work continuously?
24 hours (in an environment with good ventilation and heat dissipation).
Does DIY KIT will have an extension of the area?
This will be available soon and the engraving area is 800*850mm
Does it can engrave on the glass?
The laser can engrave on the glass surface, but the engraving depth is not deep enough for cutting. When engraving transparent and translucent glass, you need to wrap thermal paper or paint it black.
Which laser module is it equipped with?
It is 5W or 10W.
