Highlights

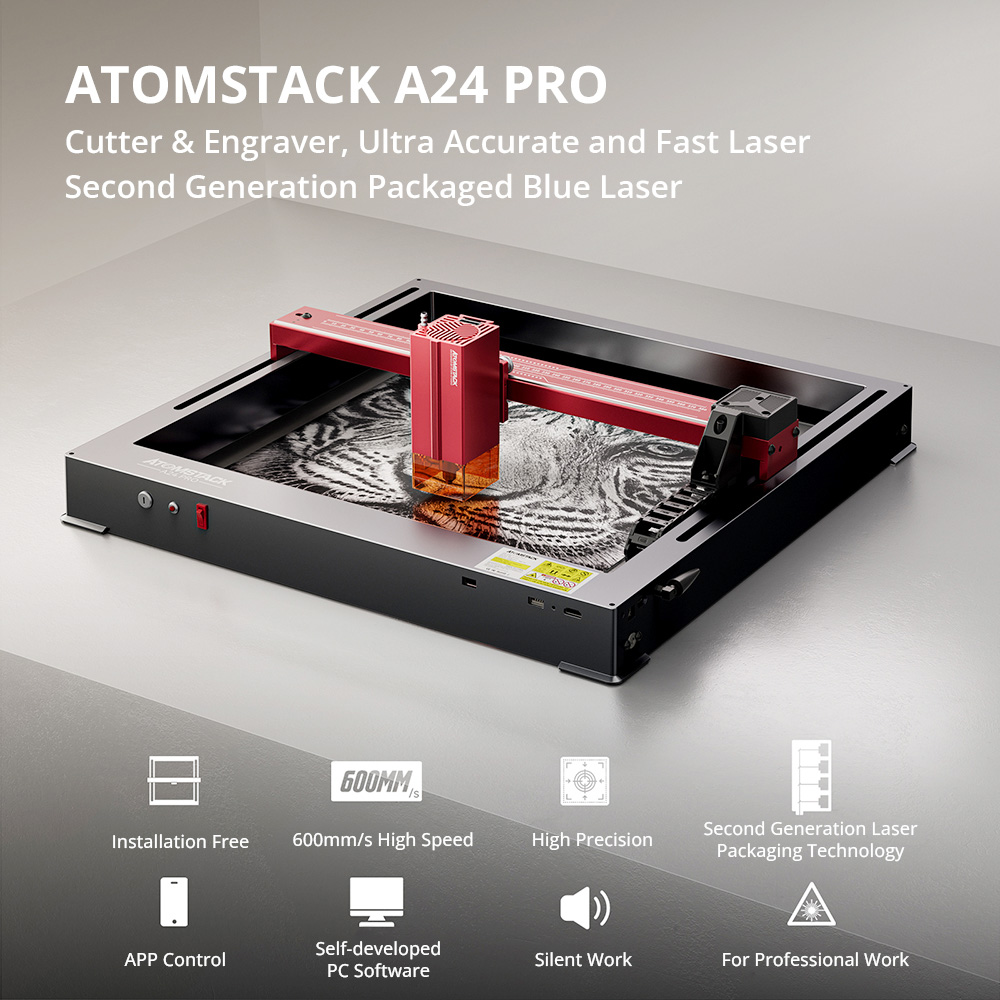

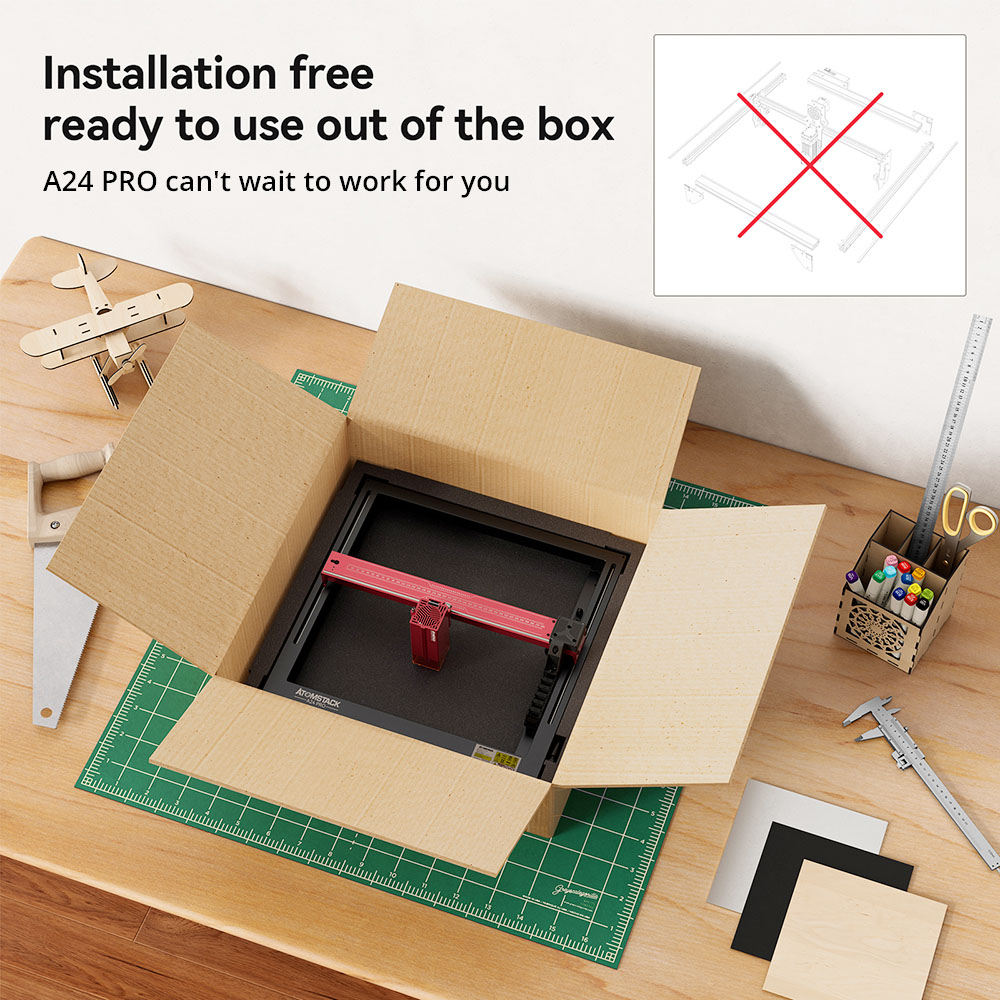

Installation Free
The A24 Pro overall frame is made of aluminum alloy and is cast in one piece. It can be used out of the box without installation and has excellent structural stability.
24W Optical Power

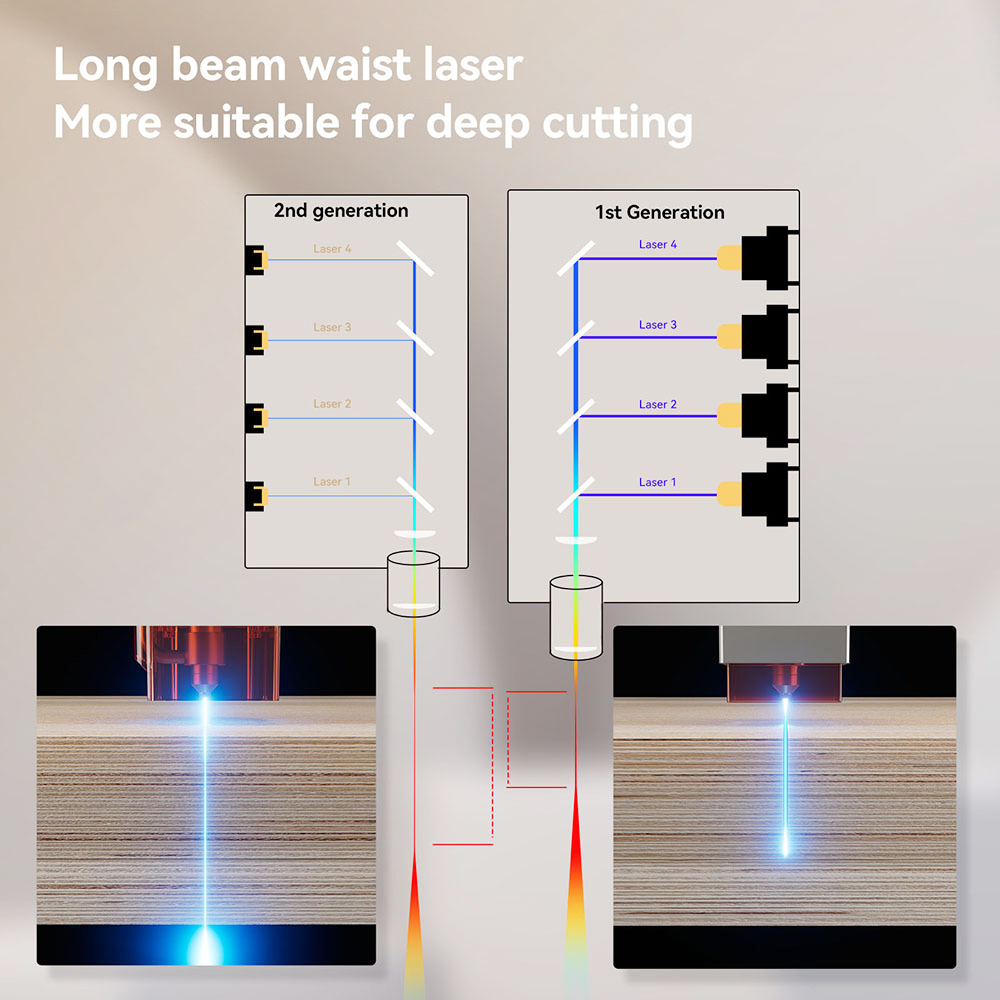

A24 Pro utilizes a 24W high-power laser beam. The latest coupling technology of four 6W optical power second-generation fiber-encapsulated lasers, with powerful power and long optical waist, can cut 18 paulownia wood boards, 10mm black acrylic boards, 15mm basswood plywood, 5-layer laser-specific vinyl, and even cut 0.05mm stainless steel sheet at one time. It also adopts a fixed focus design and can quickly and accurately focus in 10 seconds.

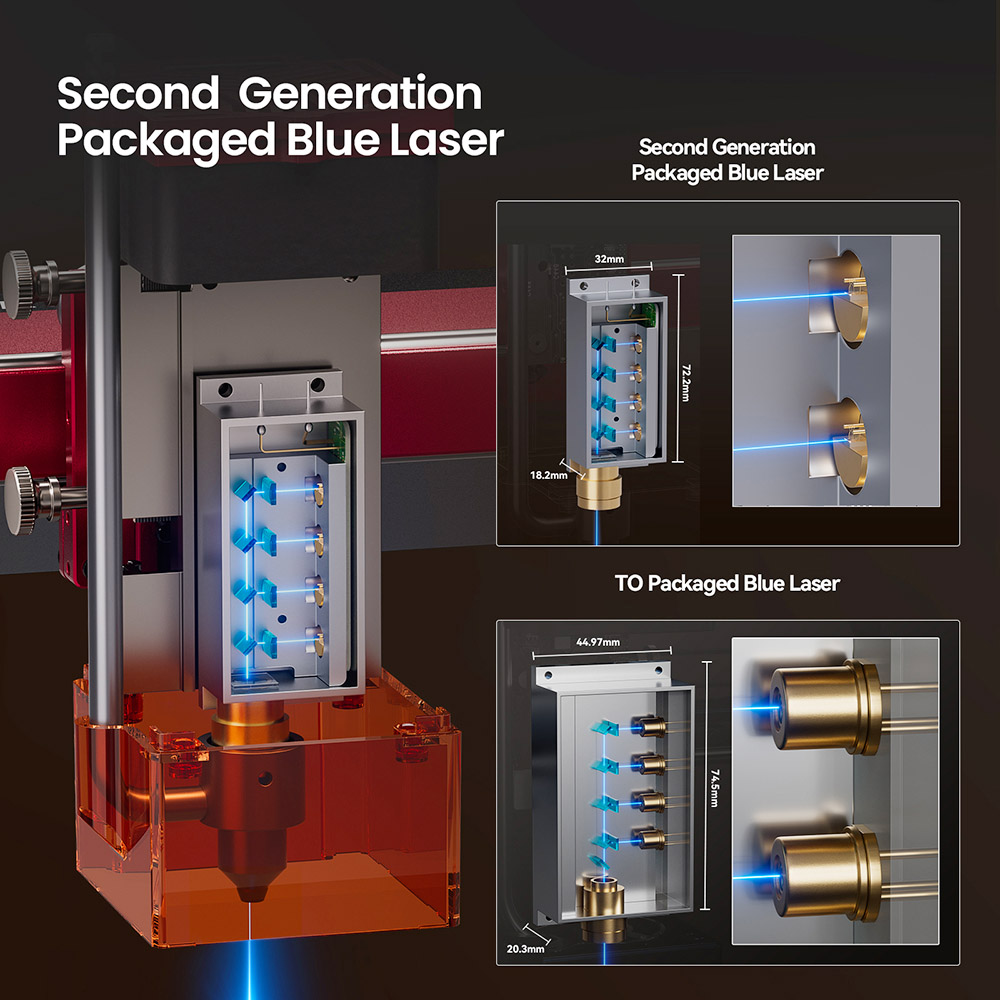

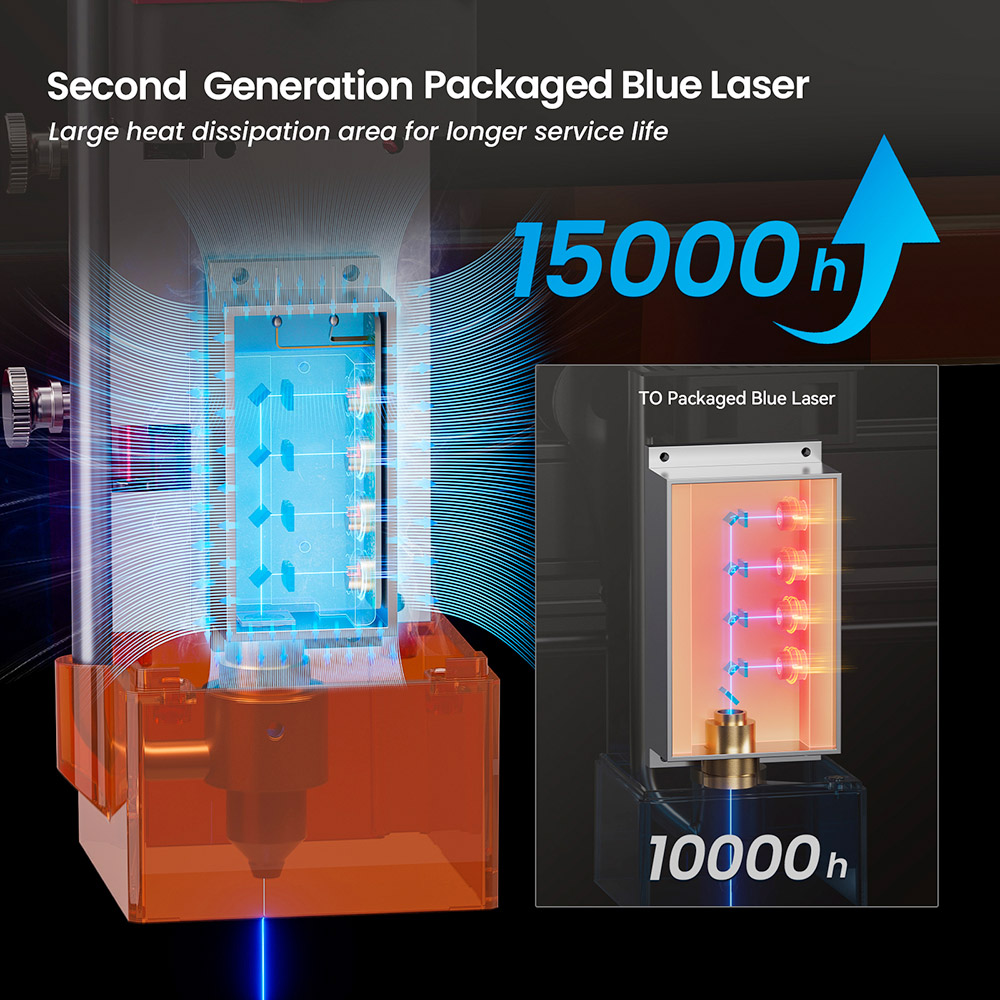

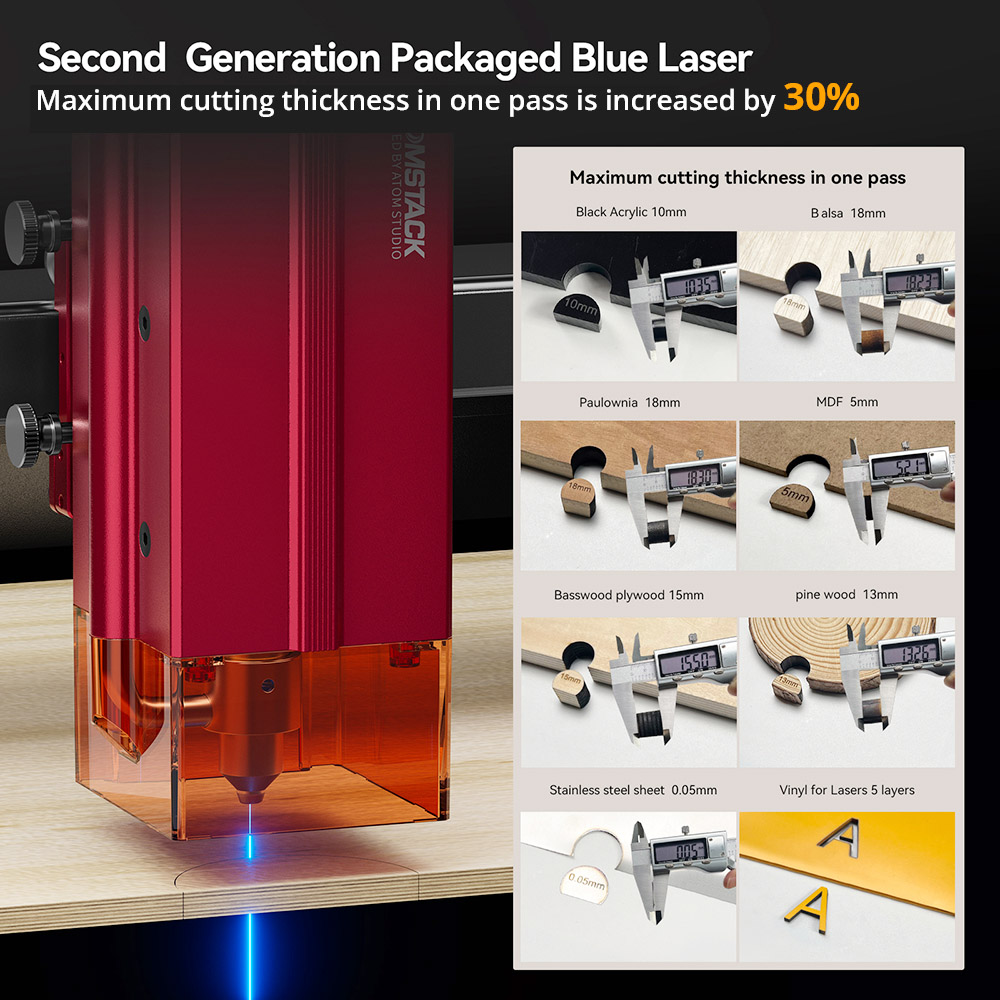

Second Generation Blue Laser Packaging Technology
The A24 Pro laser adopts the second-generation fiber compression packaging process, which further compresses the laser spot size and significantly improves cutting capabilities. It also improves the heat dissipation efficiency of high-power lasers and extends the service life of the lasers.

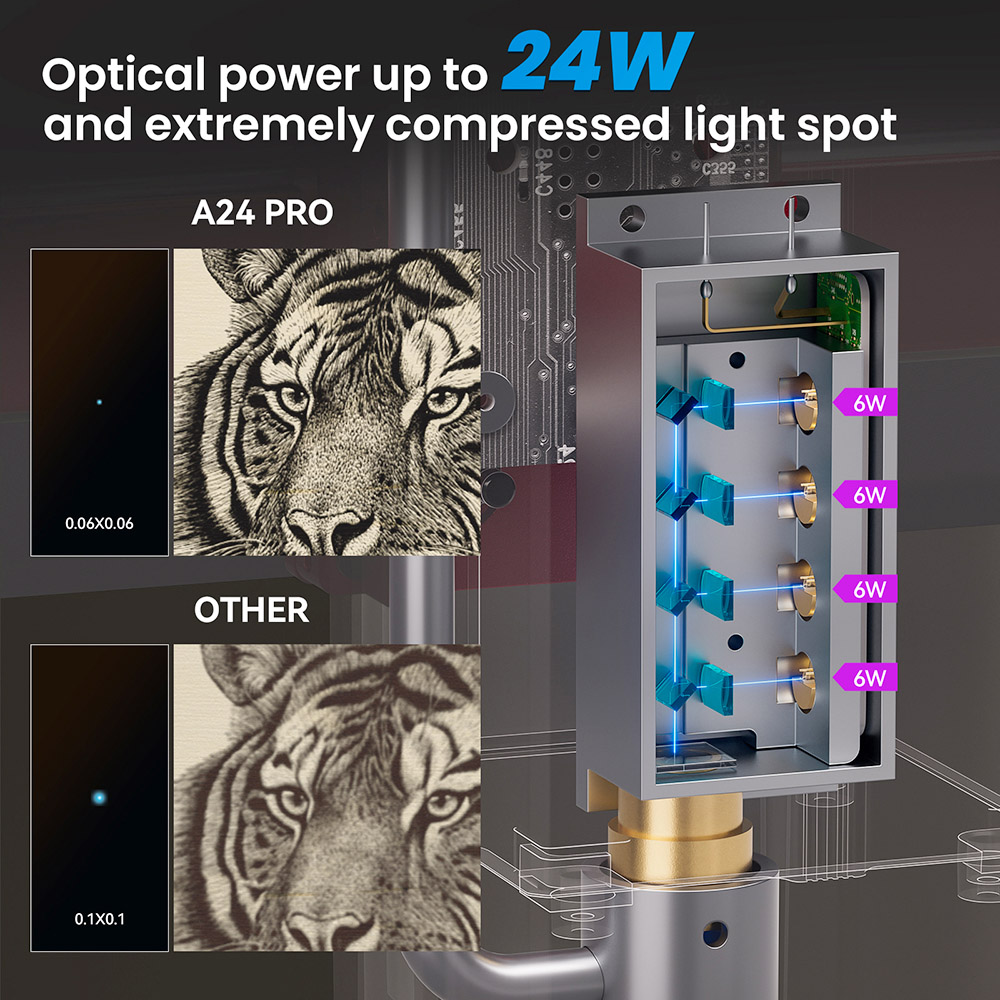

Upgraded Compression Spot Coupling Technology
The ultra-fine laser focus area is reduced to 0.06*0.06mm. The high-density laser can easily cut 20mm thick plywood and 30mm thick black acrylic; it can directly engrave mirror stainless steel metal, ceramics, and glass. The engraving and cutting speed is 40% higher than the ordinary model, and the extreme cutting effect is comparable to that of a 300W CO2 laser engraver.

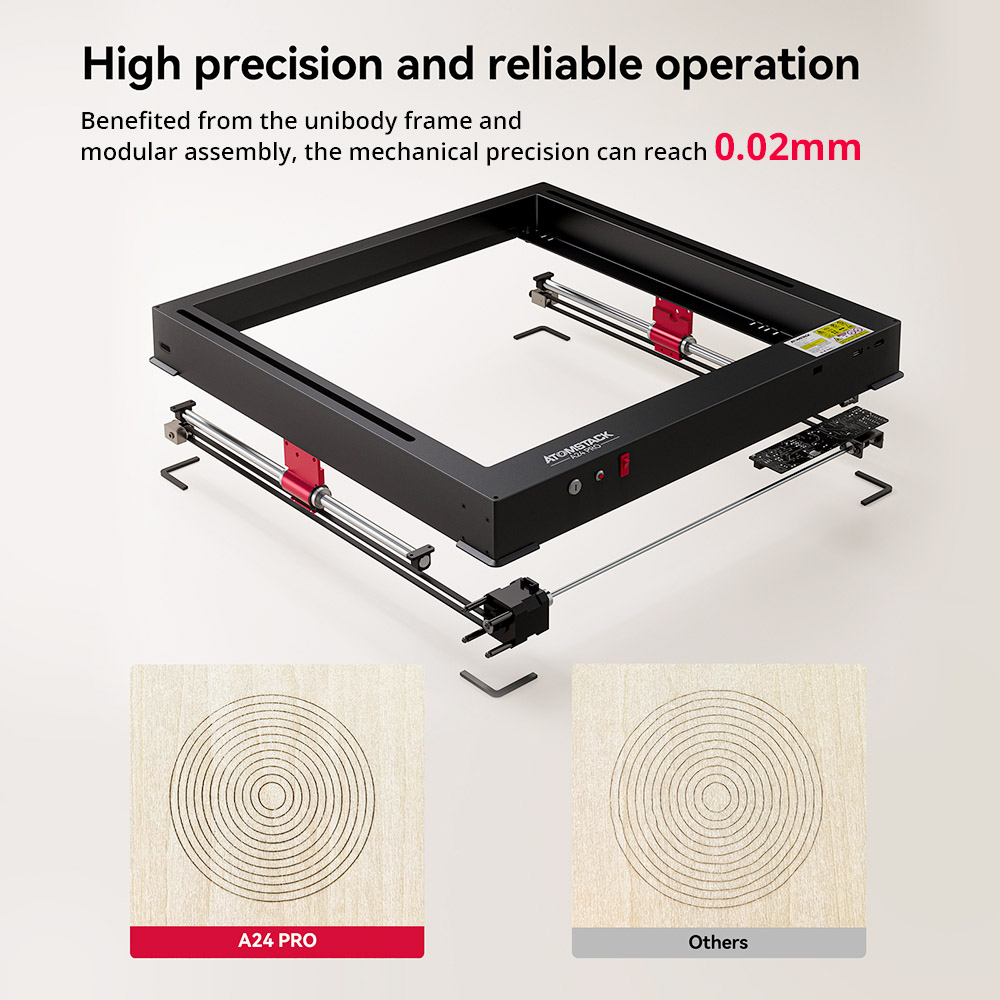

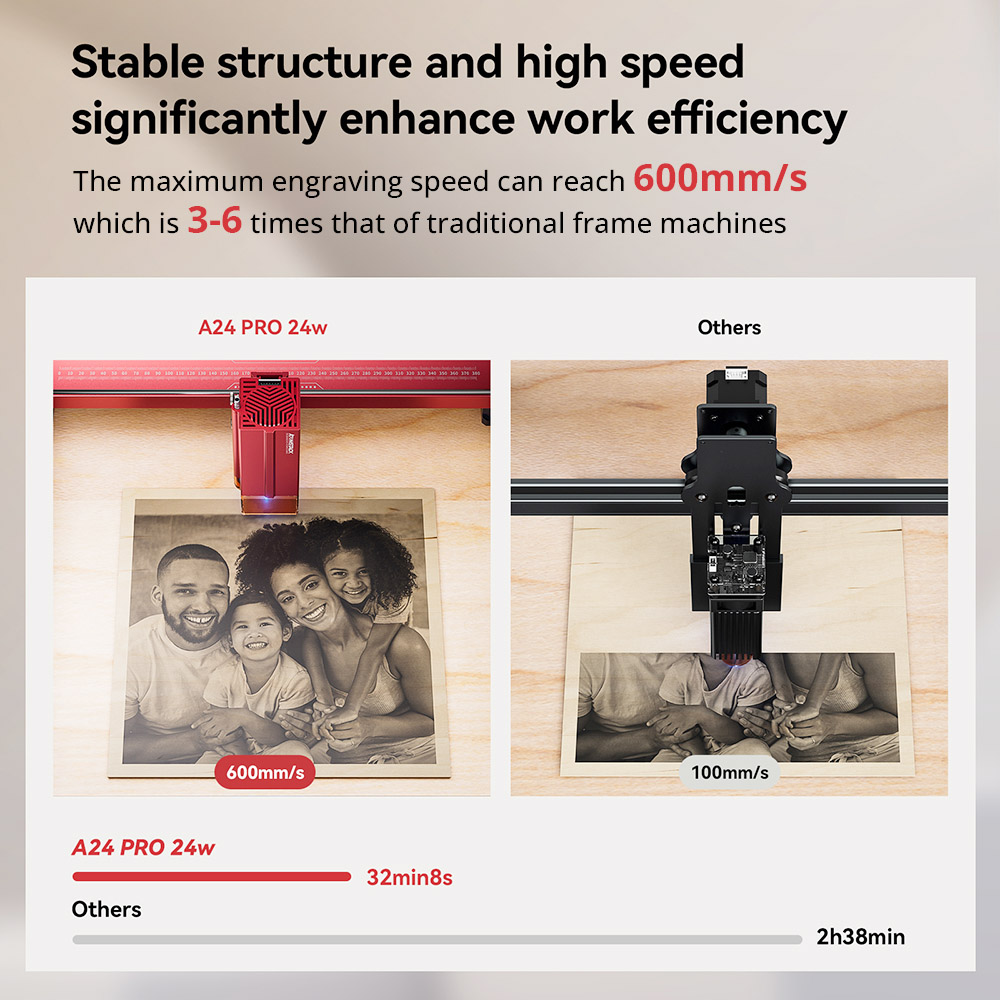

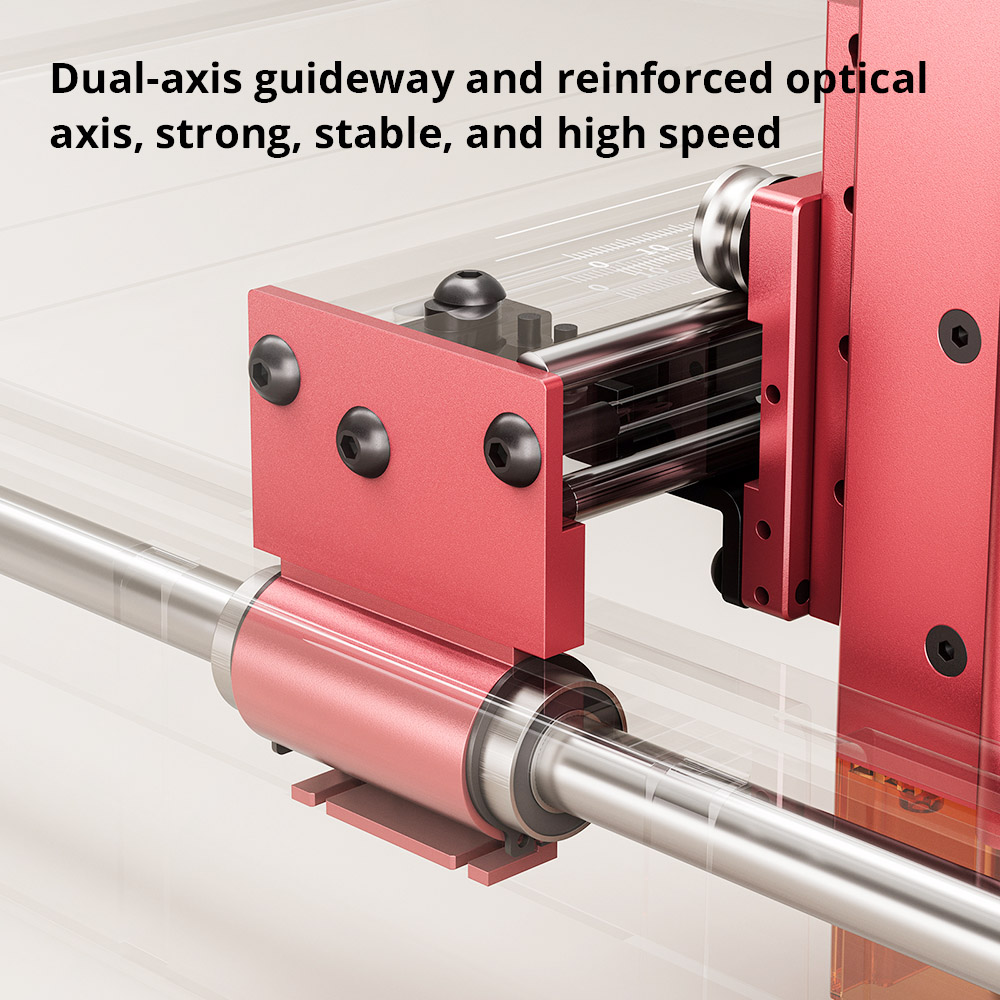

Stable and High-speed Structure
The bottom frame of the A24 Pro is formed in one piece, and the X-axis metal adopts a dual-axis guide rail structure. The working vibration is very small, ensuring that the machine does not shake when running at a high speed of 600mm/s.

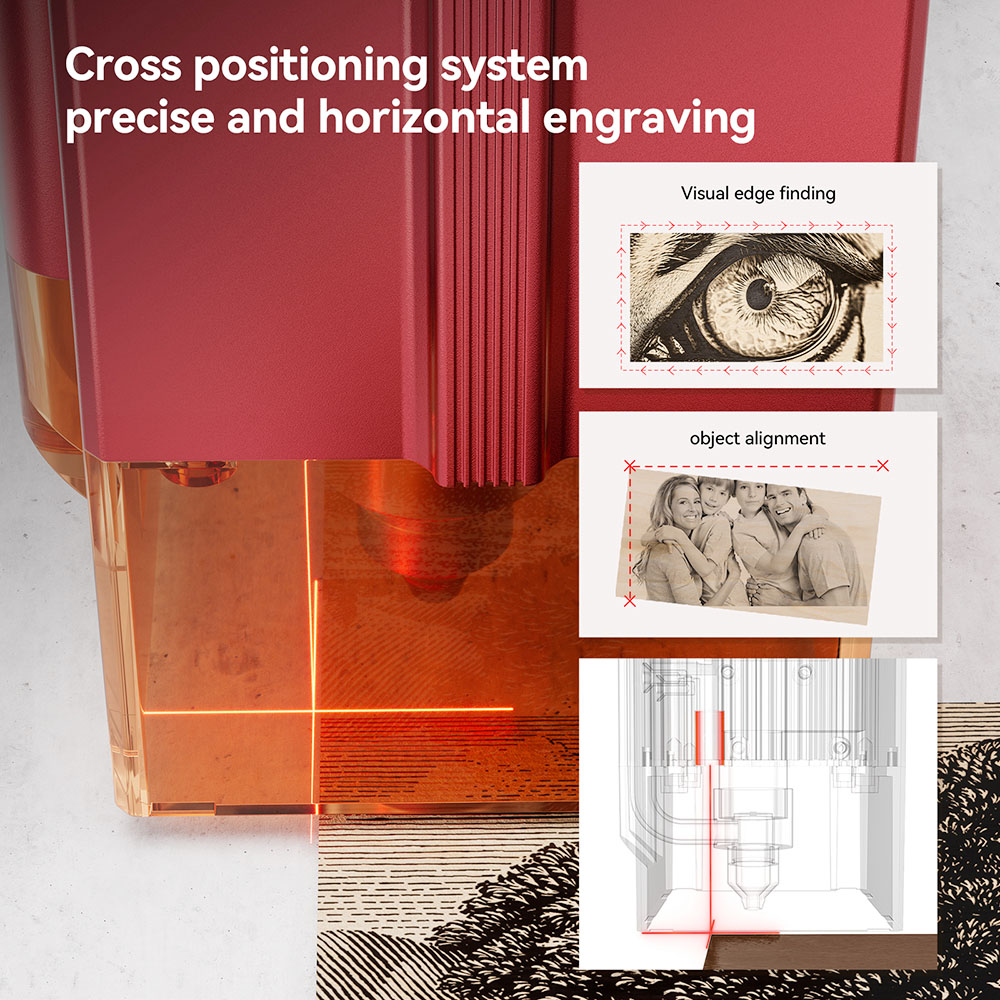

Cross Laser Positioning
Newly added cross laser positioning feature for clear visibility of the laser’s location, perfect alignment for engraving, and easy horizontal adjustment.

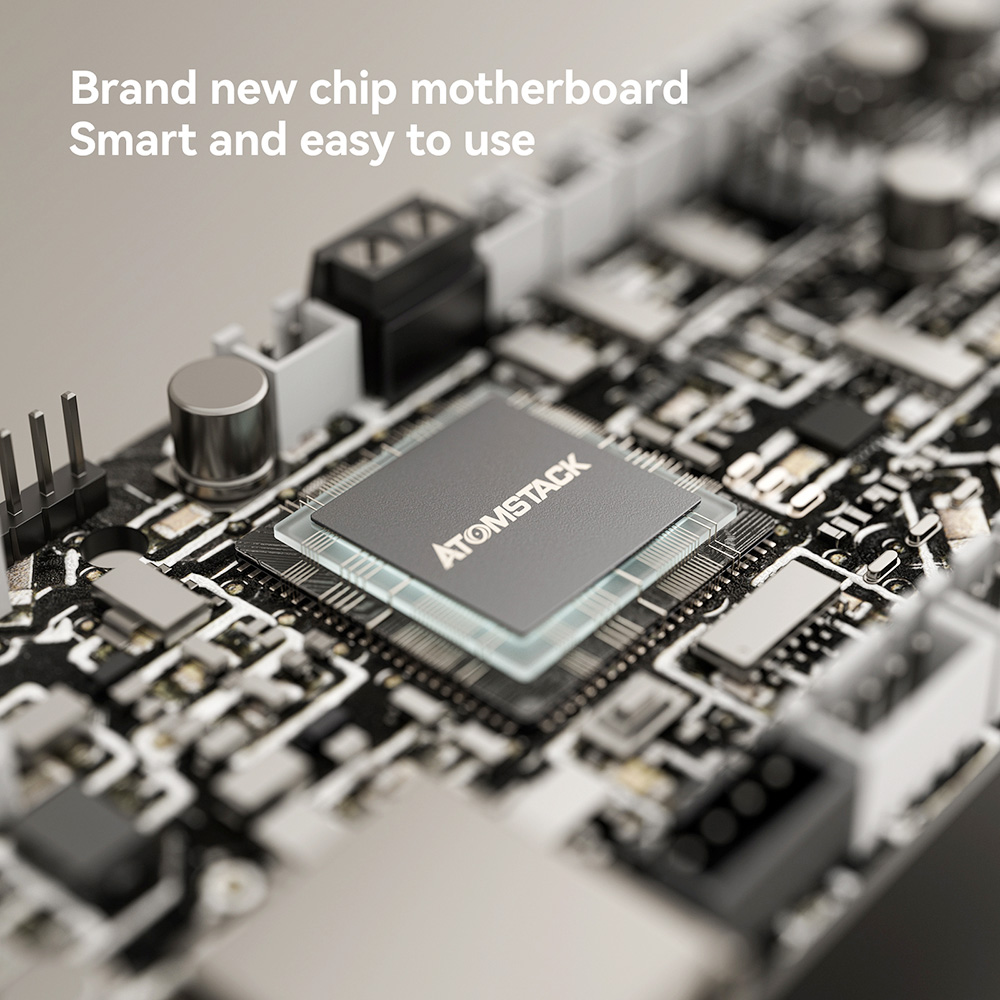

Advanced 32-bit Motherboard

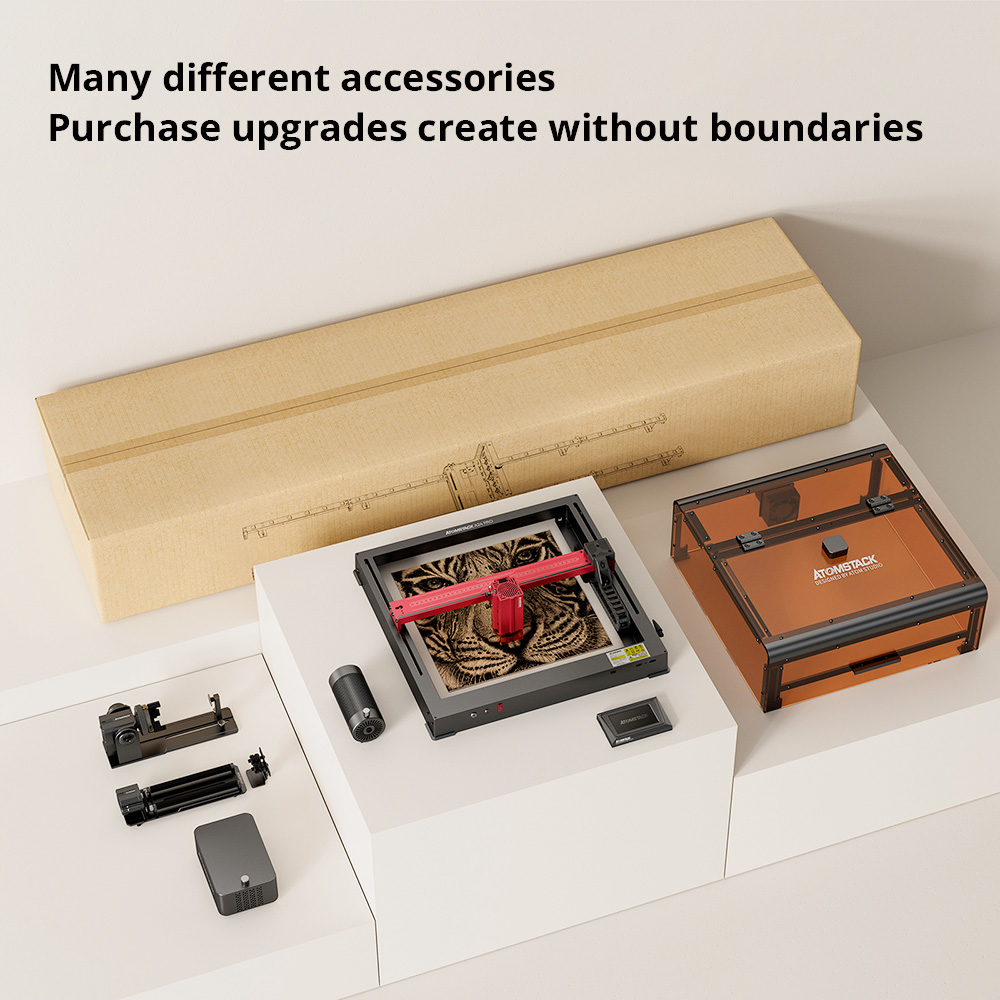

The smartest self-developed ESP32 motherboard, with faster data reception and processing capabilities, and optional accessories (not included) to enable auto-focus and resume carving after power off.
Atomstack Self-developed Mobile App
Atomstack's self-developed mobile APP is now available in major Android application markets and Apple APP store (you can also scan the manual QR code to download). It is multi-functional, bringing a new control experience.
Eye-Protection Redefined
The panoramic filter glass protective cover protects your eyes very well and filters 97% of ultraviolet light. You and the people around you do not need to wear goggles to watch laser engraving. Reduce your goggles expense and the inconvenience of wearing goggles.
Broad Compatibility
The machine is compatible with various mature engraving software, such as LaserGRBL and LightBurn. It supports Win XP / Win 7 / Win 8 / XP / Win 10. It also supports Mac system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
Security Protection
It is equipped with an emergency stop button to stop the machine at any time if an unexpected situation occurs. It is also equipped with a limit switch and a gyroscope to make laser work safer.
Specification
| General | Brand: ATOMSTACK Type: Laser Engraver Model: A24 Pro Color: Black |
| Specification | Engraving Size: 365*305mm Overall Machine Power: 120W Laser Output Optical Power: 24W Laser Wavelength: 455±5nm Engraving Precision: 0.02mm Focusing Mode: fixed focus laser, no focus Laser shield: There is a protective shield on the laser that protects the user's eyes, no need to wear additional goggles. Operating Software: LaserGRBL, LightBurn, Supports Windows/Linux/macOS Supported File Formats: NC, BMP, JPG, PNG, DXF Data Transfer Method: USB Power Supply: International standard power Input: 220-240V AC, 50HZ Output: 24V 5A Certification: CE FCC RoHS FDA PSE Carving materials: wood, bamboo, cardboard, plastic, leather, PCB, alumina, non-reflective electroplated and lacquered metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate. Cutting materials: cardboard, non-woven fabrics, wooden boards, plywood, acrylic (transparent needs to be painted black), some thin plastic boards, sponges, aluminum and stainless steel and other metal sheets. |
| Weight & Size | Product Weight: 6.7kg Package Weight: 8.7kg Package Size(L x W x H): 60x60x18cm |
| Package Contents | 1 x Complete Machine Frame 1 x Laser Module 1 x Tank Chain 1 x Mounting Screw 1 x Tool Kit 1 x Fixed-focus Film 3 x Acrylic Sheets 3 x Wood Chips 10 x Wire Ties 1 x Desiccant 1 x Brush 1 x Dust-free Cloth 1 x Power Adapter 1 x Data Cable 1 x User Manual |
