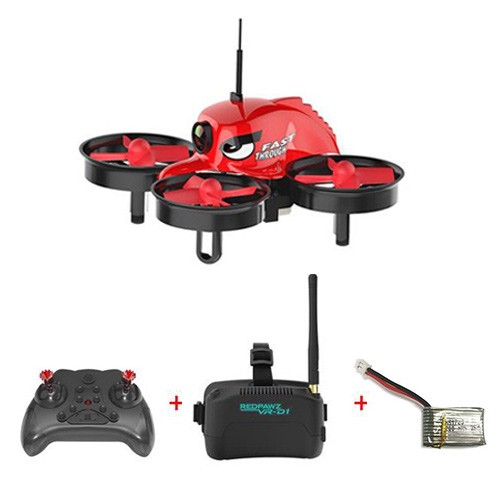

Redpawz R011 5.8G 40CH Micro FPV Racing Drone + 3 Inch VR-D1 Goggles RTF - Two Batteries

Brand: REDPAWZ
Item Name: Micro FPV Racing
Item No.: R011
Quadcopter Size: 8.3*8.3*4.35cm
Box Size: 30*19.5*9.5cm(with Goggles)
Frequency: 2.4G
Gyro: 6-Axis
Channel: 4CH
Motor:  615-17000KV  61000RPM
Battery: 1s 3.7V 220mAh 35C  (included)
Transmitter Power: 2 X 1.5V AA battery(not included)
Flight Time:  about 5-6mins
Charging Time: 30-50mins
Mode: Mode 2(Left hand mode)

Frequency: 5.8G
Wireless Channel: 40CH
Output Power: 25mW
Operatin Voltage:  3V-5.5V
Current: 200-340mA
Camera: Sensor: 1/3 "CMOS
Clarity: M7 1000TVL camera
View Angle: 120°FOV   H170°
Signal System: NTSC/PAL

Support set power off memory function

Frequency Control:
1.Short press the button,switch frequency
2.Long press the button 2S, switch frequency group(When LD1 flashes, release the button)
3.Long press the button 5s, switch N / P(LD1 from flashing to off and release the button)
(When the NTSC system, LD2 long bright,When the PAL system, LD2 blinks)

Frequency Tablel:
CH1  CH2   CH3   CH4   CH5  CH6   CH7   CH8
Band 1  5865  5845  5825  5805  5785  5765  5745  5725
Band 2  5733  5752  5771  5790  5809  5828  5847  5866
Band 3  5705  5685  5665  5645  5885  5905  5925  5945
Band 4  5740  5760  5780  5800  5820  5840  5860  5880
Band 5  5658  5695  5732  5769  5806  5843  5880  5917

Size: 138*129*79mm(without antenna)
Weight: 164.7g
Display: 3 inches
Resolution: 500*300 pixels
Antenna Connector: RP-SMA
Working Voltage : 1s Battery (3.7-4.2v)
Working Current : 350-450mA
Receiving Sensitivity: -95dBM
Build in Battery: 500mAh 3.7V
Working Time: 1h

1 X REDPAWZ R011 Micro FPV Racing Drone
2 X 3.7V 220mAh 35C Li-po Battery
1 X Remote Control
1 X VR-D1 Goggles
1 X Straight Pole Antenna
1 X Sponge Pad
1 X Nose Pad
1 X USB Charging Cable
1 X USB Line
1 X Alcohol Colth
6 X Propellers(3 X CW 3 X CCW)
1 X Screwdriver
