Highlights
The Recon goggles are a simple, affordable solution to ultra-immersive FPV.
Full FPV Experience
With an integrated five bands, 40-channel receiver and simple USB charging, the Recon puts ease-of-use first and lets pilots focus on the full FPV experience.
Two Ways
You could use the integrated channel scanner to pick up the strongest nearby feed or manually change channels and band through the simple and intuitive controls.
Smart Indication
An onboard OSD shows video signal strength, battery lifetime and channel selection.
Easy Operation
Now for V2 goggles, you can insert a micro-SD card into the slot at the crown of the black faceplate to prepare the DVR for recording while remove the card to extract video files.
Specification

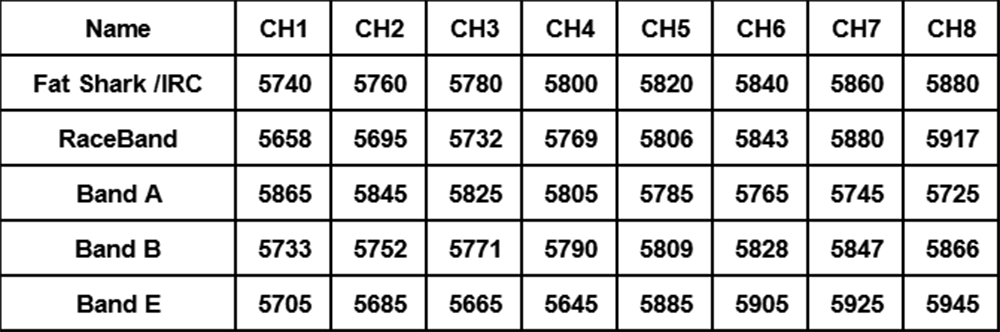

| General | Brand: Fat Shark Item No.: FSV1131-02 Item Name: Recon V2 Display: 4.3 inch LCD panel Resolution: WQVGA FOV (Field of View) : 55° Optical Engine: patented reflection design Receiver: 40 channels, single high sensitive receiver including RaceBand frequencies Channel Search: auto scan and find strongest channel OSD info: channel info, RSSI info and battery status (disappear after 4s, press any button to show up) DVR: analog recording, SD card support to max 32GB Low Voltage Alarm: available Battery: 18650 2600mAh Li-ion chargeable battery USB port: for charging only Size: 184mm*148mm*90mm Weight: 578g |

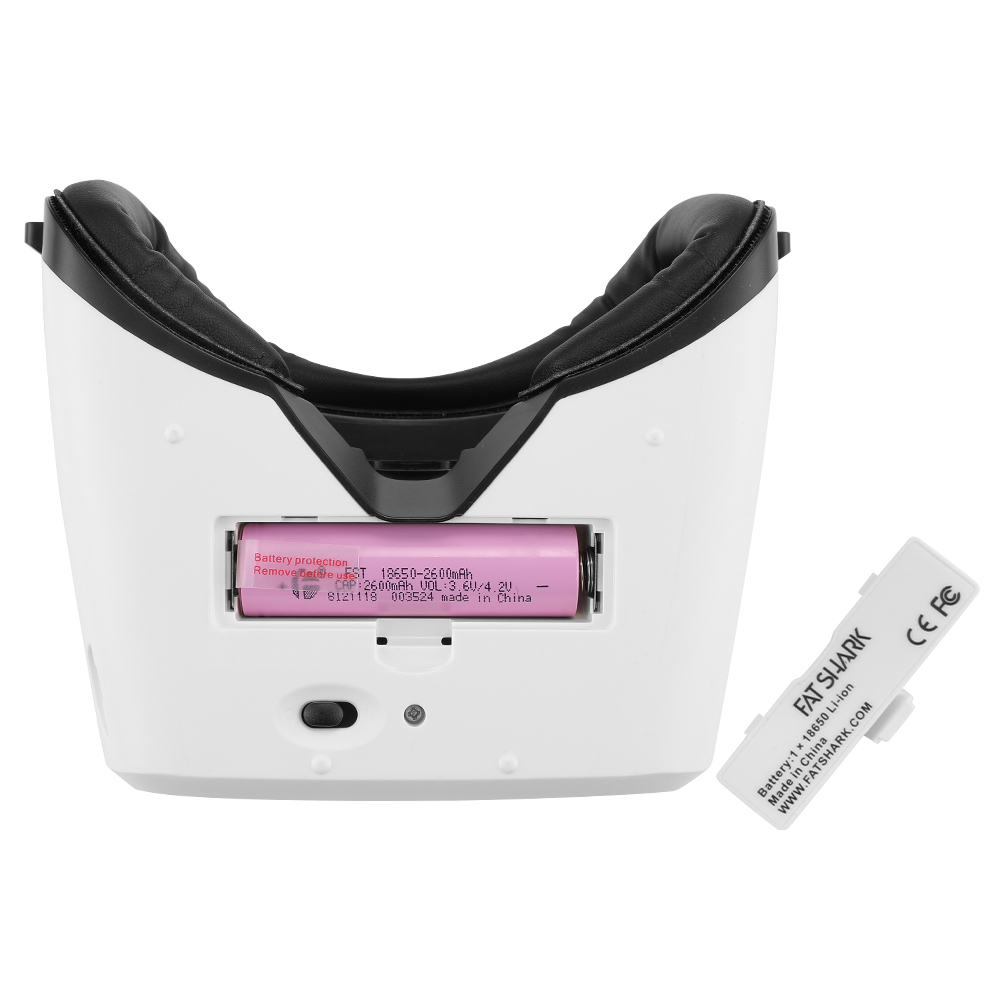

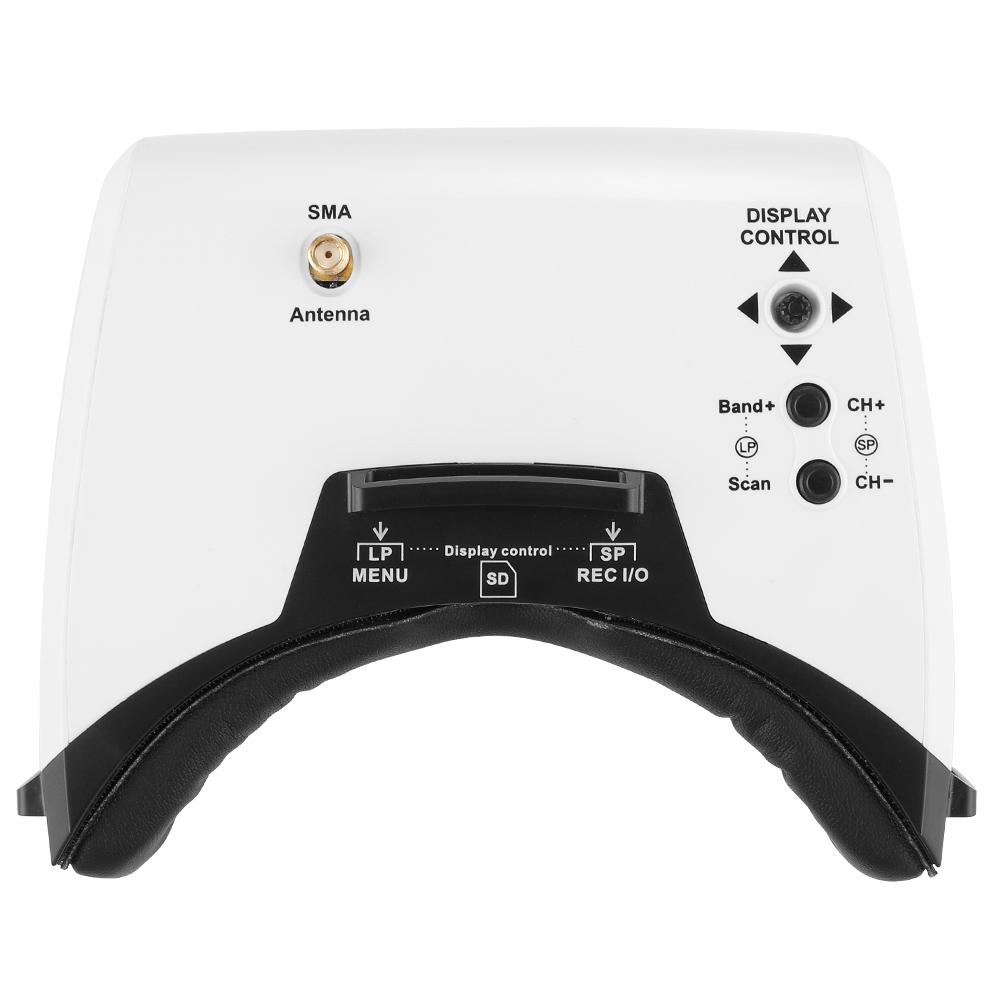

| Headset Operation | Battery Charging: The battery in the headset is a standard 18650 2600mAh Li-ion cell, and can be charged with built-in charger by connecting a micro USB power supply to the headset. Brightness and Contrast: Slide the 5-way button left and right or forward and back for contrast and brightness adjustment. Channel Selection: Short press channel Up(CH+)/ Down(CH-) button to incrementally increase/decrease the channels. Long press and release the Up(CH+) button to change band; long press and release the Up(CH-) button to do auto scan active channel. DVR Recording: Vertically depress the 5-way button and listen for the short beep to start and stop recording video from the live feed. Long-press the 5-way button to enter the DVR menu and browse/play content. This DVR has no auto save recording file function, need to manually stop recording to save file. |
| Package Contents |
1 x Fat Shark Recon V2 FPV Goggle |
