Using a beam of light to turn a liquid into a solid object is not a sci-fi movie, but the magic of SLA 3D printing. Unlike traditional 3D printers that melt plastic, SLA printers use light to shape liquid resin to create objects with delicate details and smooth surfaces.
This guide will provide a comprehensive introduction to the key knowledge of SLA printing, helping you understand the basic concepts and practical applications of this technology in simple language. Whether you are new to 3D printing or a professional looking to upgrade your equipment, this comprehensive guide will help you determine whether SLA printing is right for your needs. Let’s start exploring together!
What is SLA Printing?

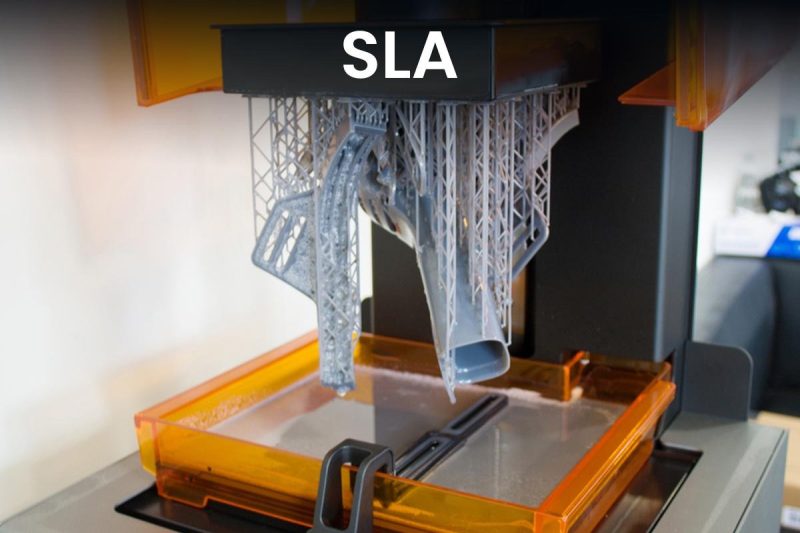

SLA, full name Stereolithography Apparatus, is a 3D printing technology that uses a light source of a specific wavelength to harden a liquid photosensitive resin into a solid. If a 3D printer is compared to a sculptor, SLA printers use beams of light to “sculpt” objects in a liquid. Each layer is “drawn” by the beam of light on the surface of the liquid resin, and the part that touches the light will solidify, eventually forming a complete three-dimensional object.
How Does it Work?
SLA (Photocurable 3D Printing) works like “painting” every layer of an object in a liquid resin pool: during the printing process, the UV laser then scans precisely according to the slice pattern, selectively solidifying the liquid resin into shape, and then the printing platform then rises slightly, repeating this process, and finally “growing” a complete three-dimensional object in the resin pool.
SLA vs FDM: Key Differences
After understanding the fundamentals of SLA printing, let’s briefly compare the two most common 3D printing technologies:
|
Characteristic
|
SLA Printing
|
FDM Printing
|
|---|---|---|
|
Diagram
|
 |
 |
|
Working principle
|
Light-curing resins
|
Molten plastic filament
|
|
Printing accuracy
|
Extremely high (up to 0.025mm)
|
Medium (usually 0.1-0.3mm)
|
|
Print quality
|
Smooth and delicate
|
Visible layer lines, rougher
|
|
Printing materials
|
Photosensitive resin
|
Thermoplastic
|
|
Cost
|
Higher
|
Lower
|
|
Application
|
Visible layer lines, rougher
|
Functional prototypes, everyday items, etc
|
|
Price
|
Entry models start at $3,000
|
Entry models start at $1,000
|
If you want to know more about the difference between SLA and FDM printing, including a detailed analysis of advantages and disadvantages, a comparison of specific application cases and other information, please refer to our feature article “SLA vs. FDM: Making the Right Choice for Your 3D Printing Journey”.
Main Advantages of SLA Printing
Exceptional Print Quality
SLA printing can achieve a layer height of 25 microns (equivalent to half the diameter of a human hair), and the surface of the printed product is smooth and free of visible layers, reducing the workload of post-processing. The finished product is close to the level of industrial-grade manufacturing.
Professional Results Made Easy
Modern SLA printers combine professional-grade print quality with ease of operation. Despite their advanced features, they are compact enough for desktop use and can be quickly mastered by beginners.
Wide Range of Applications
High precision and high-quality surface effects make SLA printing effective in many fields.
|
Industry
|
Application scenarios
|
Why choose SLA?
|
|---|---|---|
 Jewelry accessories
|
|
Perfectly presents fine texture and smooth surface
|

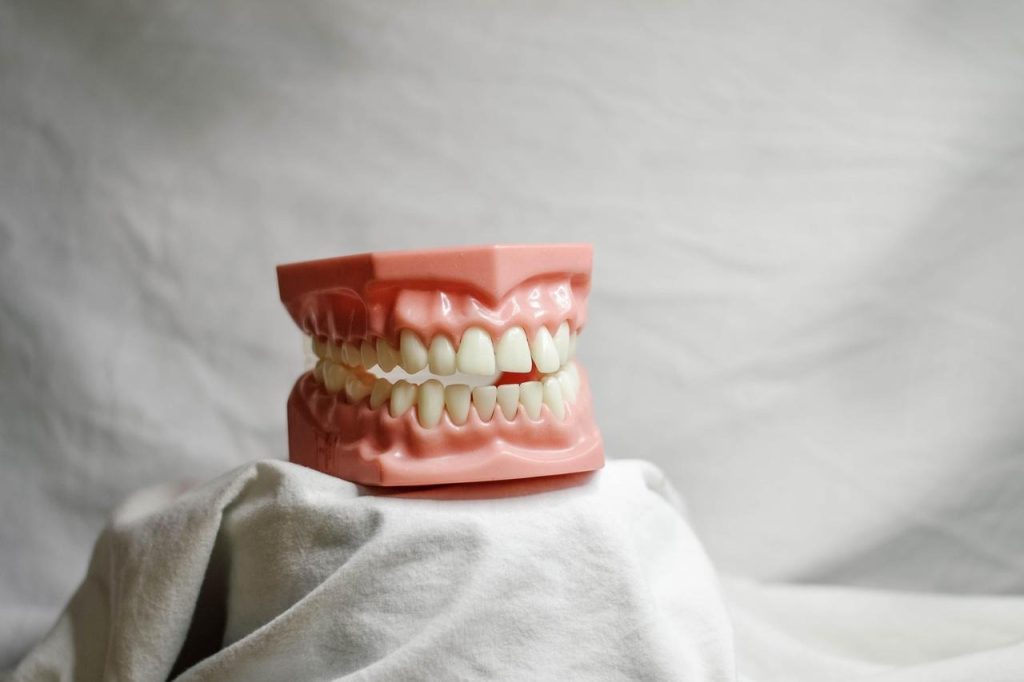

 Medical dental
|
|
Meet medical-grade standards, high precision
|
 Product design
|
|
Professional-level display effect
|
 Model hobby
|
|
The detail performance of the small model is excellent
|
SLA Printer Filament and Accessories
After learning about the excellent performance of SLA printers, let’s take a look at what materials are required to bring an idea to life. The key to the success of SLA printing lies in two elements: the resin that is suitable for specific needs, and the necessary accessories to ensure proper operation and maintenance.
Core Filament: Resin
We learned about the excellent performance of SLA printers earlier, but to truly unleash these capabilities, it is crucial to choose the right material. Resins are like “ingredients” for SLA printing. Different types of resins can help you create different kinds of work. Here is a general classification of resins used for SLA 3D printing.
|
Resin Type
|
Features Features
|
Price Price (per 1kg)
|
Best For
|
|---|---|---|---|
|
General Purpose Resins
|
|
$50 – $150
|
|
|
Engineering Resins
|
|
$150 – $300
|
|
|
Dental and Medical Resins
|
|
$300 – $500
|
|
|
Jewelry Resins
|
|
$200 – $400
|
|
Essential accessories
|
Accessory
|
Purpose
|
|---|---|
|
Cleaning and curing machine
|
For cleaning and curing prints
|
|
Nitrile gloves
|
Safe handling resin
|
|
Isopropanol
|
Cleaning prints
|
|
Filter
|
Resin cleaning
|
|
FEP membrane
|
Replaced regularly
|
FAQ
Is the SLA printer noisy?
SLA printers are usually much quieter than FDM printers because they have fewer moving parts. The main sound comes only from the slight movement of the motor and the fan, and will not disturb others when used in a home work environment.
Will the resin taste strong?
The resin does have a certain odor. It is recommended that:
- in a well-ventilated area
- choose low-odor resin
- cover the resin tank when not in use
- air purifier can be used in confined spaces
How long is the shelf life of the resin?
Unopened resin can be stored for 1-2 years under correct storage conditions. After opening:
- recommended to use within 6-12 months
- stored in a cool place (20-25 ° C)
- avoid direct sunlight
- Shake well before use (tip: mark the opening date on the bottle for easy tracking of shelf life)
Hot Topics
Are SLA printers suitable for use at home?
SLA printing is generally safe and can be used at home, but requires proper protection. Make sure it is well ventilated when using, wear gloves when handling resins, and keep the printer out of reach of children and pets. Also, try to choose eco-friendly resins with low odor and low irritation.
Is it really profitable to start an SLA printing business?
Indeed. Many small businesses generate considerable revenue by printing custom jewelry, figure models, and dental products through SLA. Entry-level printers cost around 2000-3000 yuan, and the profit margin of a single product is usually 300-500%. You can pay for it after 2-3 months of continuous operation.
Will SLA printing replace traditional manufacturing?
SLA printing complements, not replaces traditional manufacturing. It excels in customization and low-volume production but is not suitable for large-scale production. Many companies now use a two-track system: SLA for prototypes and custom orders, and traditional manufacturing for mass production.
Is it worth upgrading from FDM to SLA?
It depends on your needs. If you are mainly printing functional parts or large objects, it is recommended to continue using FDM. But if you need great detail, smooth surfaces, or mainly make miniatures/jewelry, the advantages of SLA are enough to make this investment worth the money.
Conclusion
With technological advancements and cost reductions, SLA printing is becoming more and more pervasive, opening up new application fields and breaking through traditional limitations. Whether you are a precision-seeking professional, an enthusiast eager for perfect detail, or an entrepreneur exploring new opportunities, SLA printing can bring your wild ideas to life, opening up a world of high-precision, professional-quality desktop manufacturing.
